MATCHMASTER N SOCKET .500″ CONNECTOR – SPINNER : 56MM-N500S

Description

Product Summary

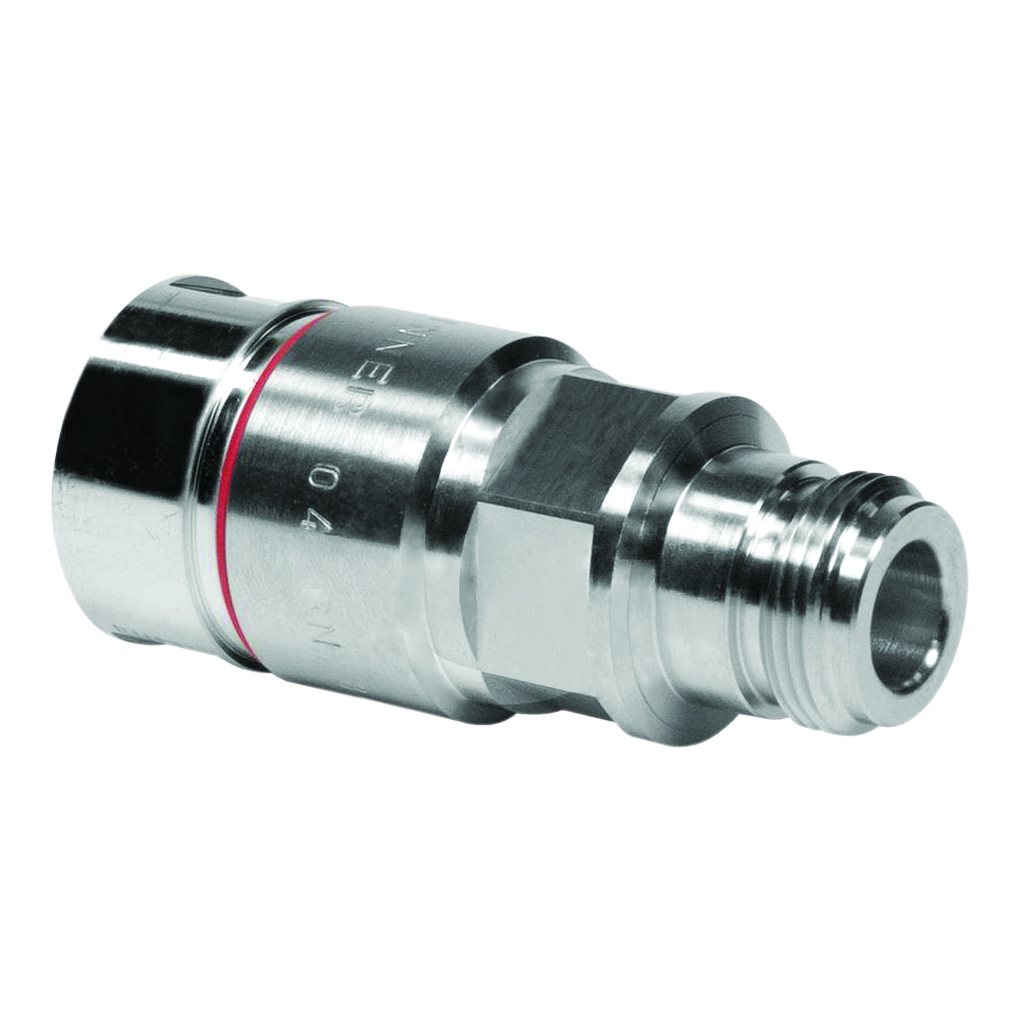

The N500S is a Spinner brand N-Socket connector for E500 50 Ohm half-inch corrugated cable. Terminate half-inch cable to inputs from cellular, other communications antennas or when linking longer cable runs in RF networks. The N500S is a multi-fit connector designed for use with many reputable brands of 50 Ohm half-inch cables.

Features and Benefits

Used to connect half-inch cable to antenna ports or other communications links

Frequency range DC to 6GHz

Made from copper alloy metal parts with a combination of different plating’s

PTFE/PE insulation with silicone rubber, EPDM sealing

IP68 per EN 60529 (mated)

Reliable, robust and durable

Specifications

Connector type: N socket

Version: MultiFit

Impedance: 50 ?

Frequency range: 0 – 1GHz ; ? 1 – 2.7GHz ; ? 2.7 – 3.8GHz ; ? 3.8 – 6GHz

VSWR: ? 1.02 ; ? 1.03 ; ? 1.08 ; ? 1.1

Material and surface

Inner Conductor: Copper Alloy

Outer Conductor: Copper Alloy; CuSnZn-plated

Other metal parts: Copper Alloy; Sn-plated; CuSnZn-plated

Insulation: PTFE, PE

Sealing: Silicone Rubber, EPDM

Degree of Protection: IP68 (mated)

Cable compatibility: Spinner – SPINNERFlex? LF 1/2″-50; Acome – HPL50-1/2 F; Andrew- LDF4-50A; Draka – RFA 1/2?-50; Eupen- EC4-50; Hansen- RF 50 1/2?; Hengxin – HCAAY-50-12; Leoni- FlexLine 1/2?R; LS Cable – HFC 12D Flexible Foam; RFS- LCF 12-50, LCF 12-50L

Standards: IEC 61169-16

Installation instructions: M32130
