Description
Product Summary

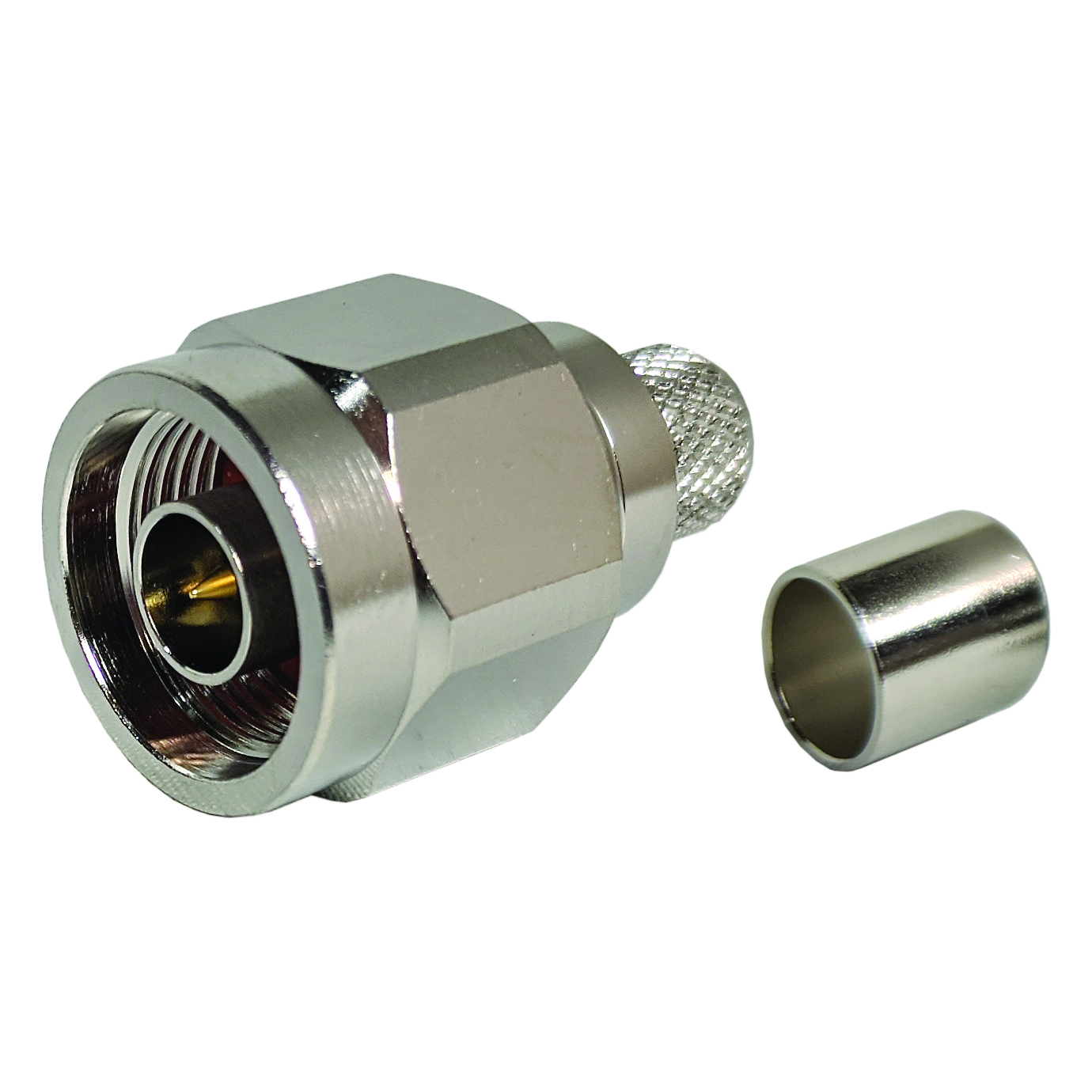

The N400SF is a straight N-Type connector for 10mm solid core 50ohm coax LL400/LMR400 and similar, spring finger inner & crimp outer. Teflon (PTFE) dielectric and internal silicon rubber gasket for waterproofing.
Features and Benefits
N400SF N-Type connector for use with 56MM-E400 series cable
Impedance: 50? nominal
RoHS compliant. 10.7mm hex crimp
Brass body with nickel plating with beryllium copper contact pin with gold plating
Internal silicon rubber gasket for waterproofing
Pack Quantity
Inner: 1 bag of 1 piece
Helpful Tip: Bulk cartons prevent potential transit damage.
Specifications
Description: Shell/Body; Material: Brass; Surface Plating: Nickel
Description: Contact Pin; Material: Beryllium Copper; Surface Plating: Gold
Description: Insulator; Material: PTFE
