MATCHMASTER BNC SOCKET RG58 LL195 CRIMP : 56MM-BNC58F
$7.52 inc GST
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Summary

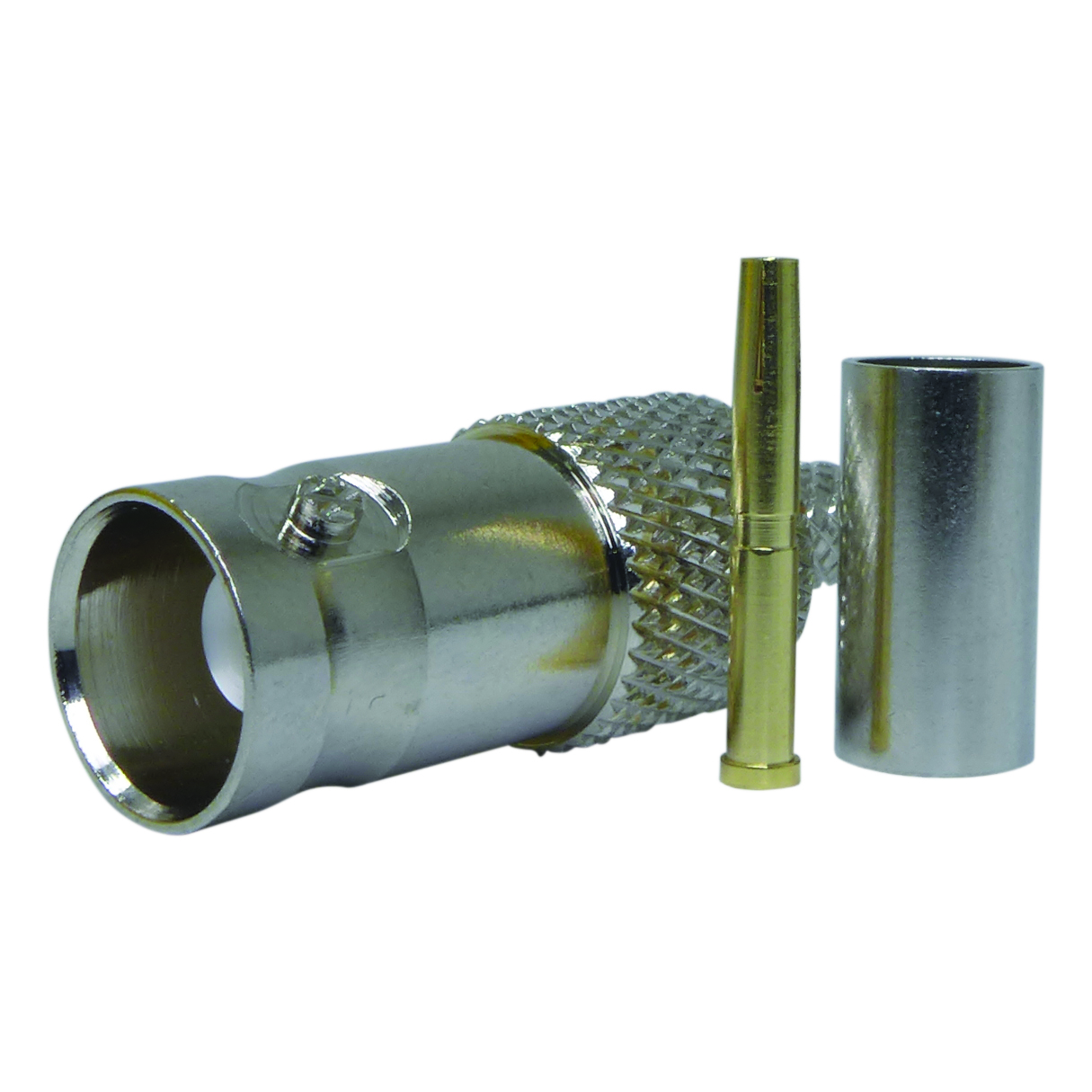

The 56MM-BNC58F socket features a crimp inner and outer style connection. BNC58F can also be used by soldering the internal pin and crimping the external body. High-quality nickel plating with gold plating on the centre pin contact and soldering surface (inside of centre pin). Unlike silver-plated connectors, it has a high resistance to tarnishing.
Features and Benefits
BNC socket for use with 5mm OD 50 Ohm coaxial cables including RG58 and LL-LMR195 type cables
Impedance: 50? nom
Gold plated centre pin, crimp 1.6mm
Nickel-plated brass for the main body of the connector
Suitable up to 2GHz
Designed for crimping using hex 5.4mm
Additional information
| Type | |
|---|---|
| Brand |
