MATCHMASTER BNC PLUG RG58 LL195 RIGHT ANGLED CRIMP : 56MM-BNC58L
$7.98 inc GST
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Summary

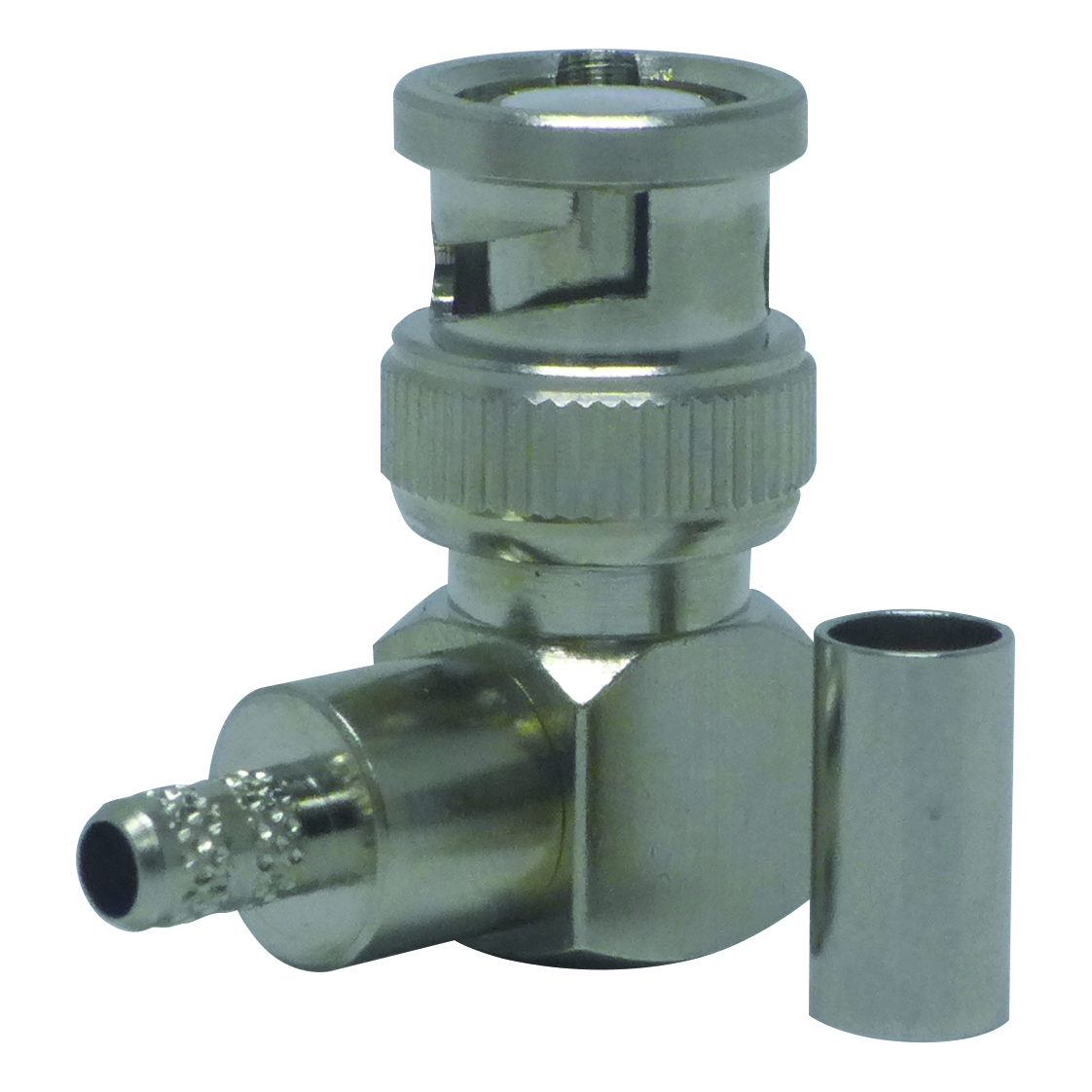

The 56MM-BNC58L is a right-angled plug with a crimp inner and outer style connection. BNC58L can also be used by soldering the internal pin and crimping the external body. High-quality nickel plating with gold plating on the centre pin contact and soldering surface (inside of centre pin). Unlike silver-plated connectors, it has a high resistance to tarnishing.
Features and Benefits
Right-angled BNC for use with 5mm OD 50 ohm coaxial cables including RG58 and LL-LMR195 type cables
Impedance: 50? nominal
Gold plated centre pin, crimp 1.6mm
Nickel-plated brass connector and gold plated beryllium copper centre pin, solder style
Suitable up to 2GHz
Designed for crimping using hex 5.4mm
Additional information
| Type | |
|---|---|
| Brand |
