MATCHMASTER BNC PLUG CRIMP RG213 : 56MM-BNC213
$17.30 inc GST
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
19 in stock
Description
Product Summary

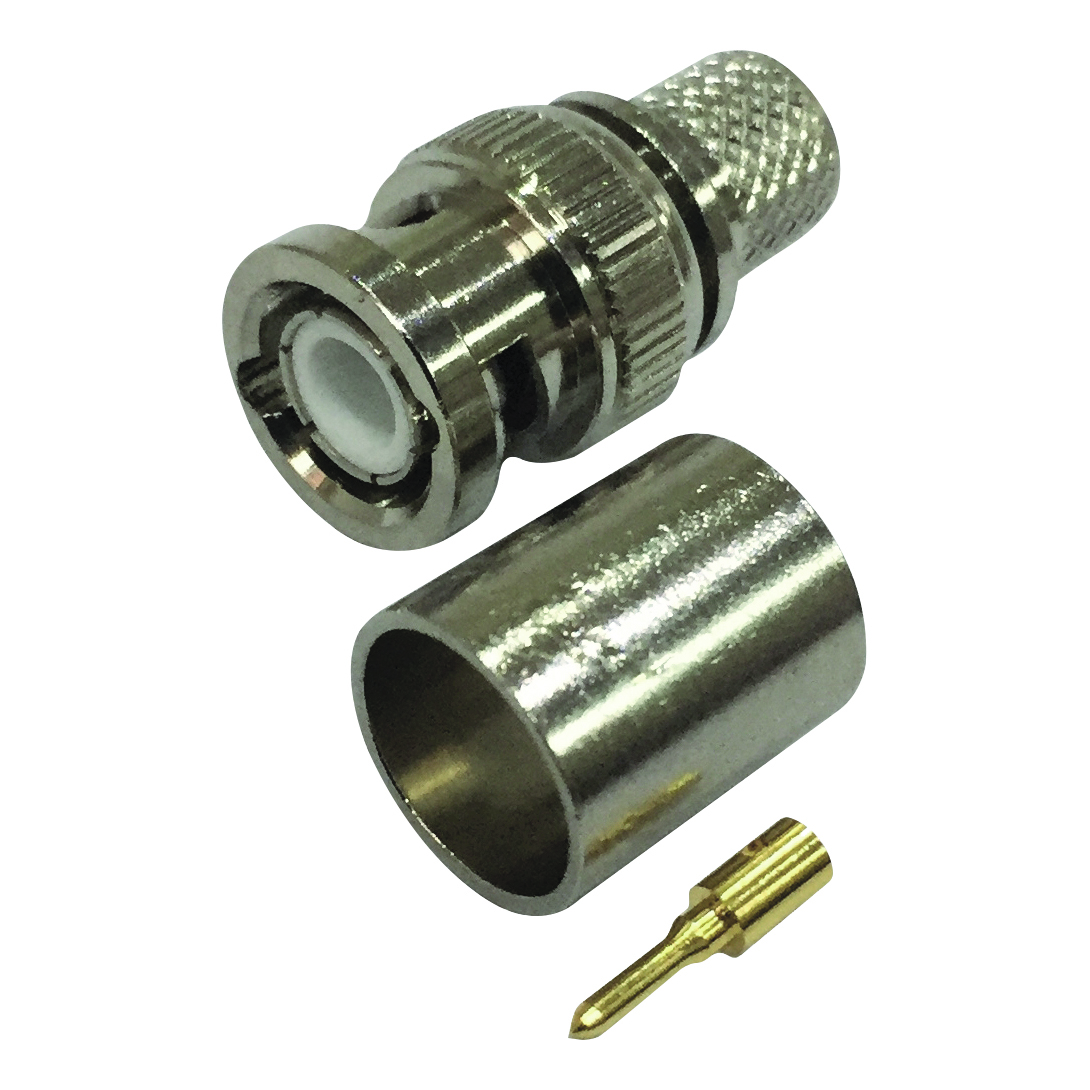

The 56MM-BNC213 is an RG213 solder inner crimp outer style connector, which can also be used as a crimp inner and crimp outer if required. High-quality nickel plating with gold plating on the centre pin contact and soldering surface. Unlike silver-plated connectors, it has high resistance to tarnishing.
Features and Benefits
Crimp style BNC for use with 10mm OD 50 ohm RG213 coaxial cables
Impedance: 50? nominal
Durability >= 500 cycle
Nickel-plated brass connector and gold plated centre pin, solder centre or crimp
Suitable up to 2GHz
Teflon dielectric
Additional information
| Type | |
|---|---|
| Brand |
