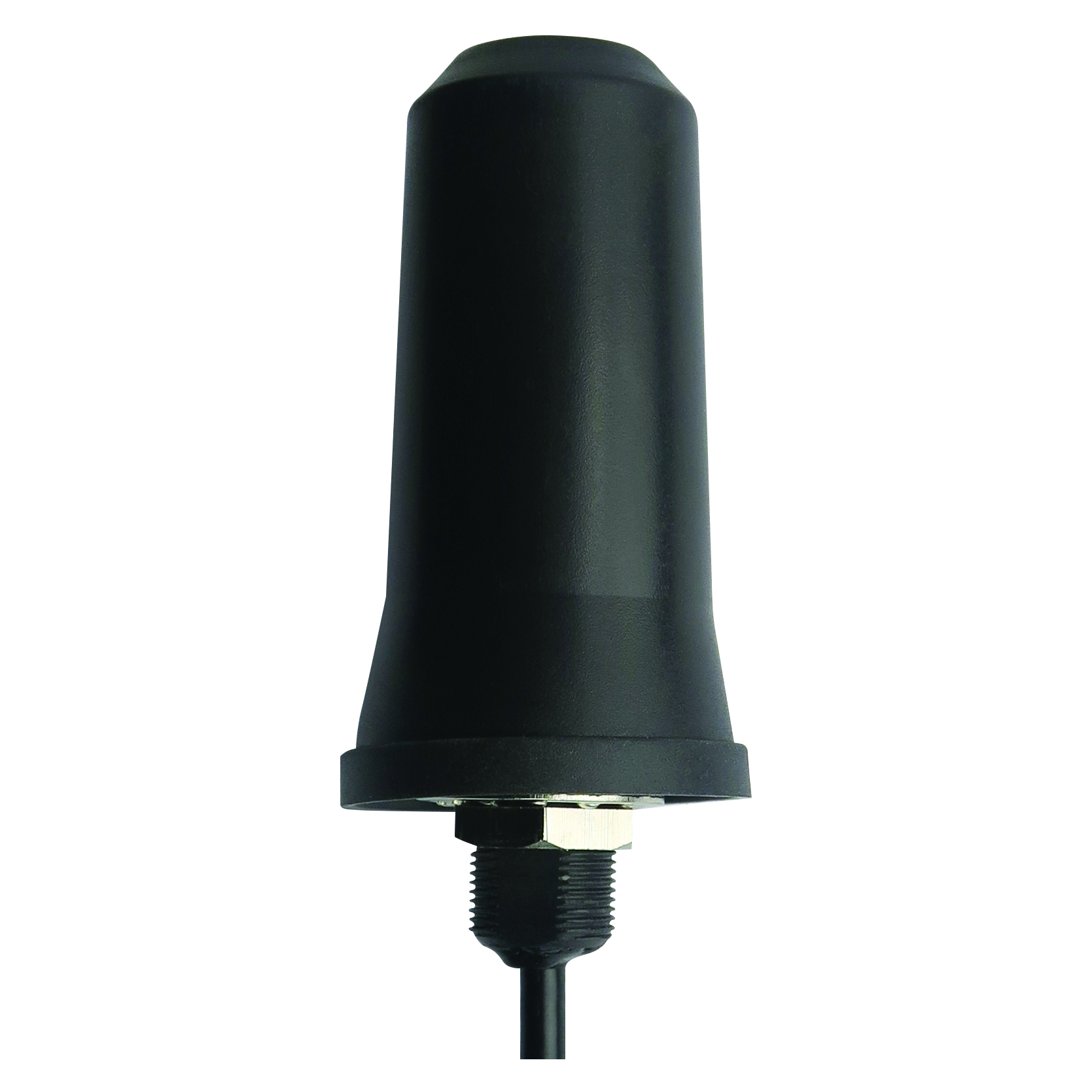

MATCHMASTER 5G MINI CELL ANTENNA 695-3800MHz 3dBi 2M LL195 – SMAp : 56MM-5G02
$139.49 inc GST
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Summary
The 5G02 is an economically priced, compact, unity gain 5G antenna suited for use in the bands 695-960, 1710-2700 and 3500-3800MHz. It comes standard with 2 metres of low loss cable terminating in an SMA plug connector and is suited for mounting onto telemetry boxes. 5G02 also includes an ?L? bracket.
Features and Benefits
5G/4G/3G multi-band performance compact omnidirectional antenna with 2m LL/LMR195 cable with SMA male.
3dBi Gain 695-3800MHz.
Factory tuned no further tuning required.
Designed and manufactured in Australia
Compact antenna design – Only 77mm high
Requires 16mm mounting hole
Pack Quantity
Inner: 1 box of 1 piece
Specifications
Frequency:695-960, 1710-2700, 3500-3800 MHz
VSWR:< 2:1
Gain:3dBi
Impedance:50 Ohm nom
Radiation Pattern:Omni directional
Polarization:Vertical
Projected area:0.008370 SQM
Power:5W
Height &Length:77 x 41 mm
Weight:160g
Humidity:5-95%
Termination:2m Low loss 195 Cable tail, SMA Plug
