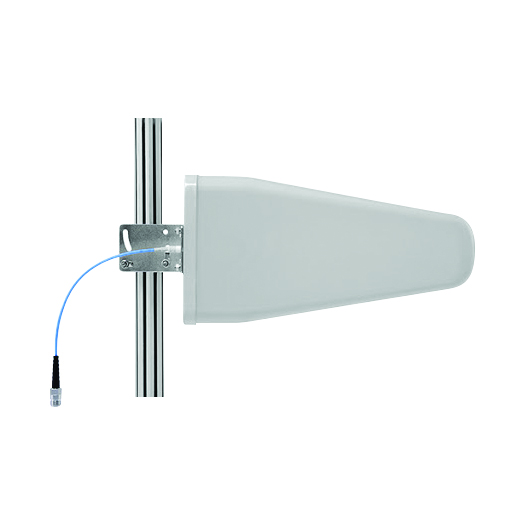

MATCHMASTER 5G LOG YAGI 698-3800MHz 11dBi GAIN – N-K : 56MM-5G03

Description

Product Summary

The 5G03 is a log yagi directional 5G multi-band antenna intended for use in the bands 690-960MHz, 1710-2700MHz and 3300-3800MHz. Included is a stainless steel mounting bracket. The 5G03 antenna is high gain with 11dBi nominal gain across the band. The antenna utilizes a low loss N female connector and is lightweight making for easy mounting.

Features and Benefits

5G/4G/3G multi-band performance directional antenna with stainless steel mounting bracket included.

11dBi nominal gain

Horizontal beam width 90 degrees, vertical beam width 60 degrees

Vertically polarized

DC ground lightning protection

Factory tuned no further tuning required.

Pack Quantity

Inner: 1 box of 1 piece

Specifications

Electrical Specifications

Frequency:695-960, 1710-2700, 3500-3800 MHz

VSWR:?2:0, ?1.5, ?2.2

Gain:11dBi

Horizontal beam width:90?

Vertical beam width:60?

Front-to-back ratio:?15dB

Polarization:Vertical

Intermodulation IM3 (2x33dBm):?-150dBc

Input Impedance:50?

Maximum input power:50W

Lightning protection:DC Ground

Mechanical Specifications

Input connector type:N-K

Installation:Pole-holding

Dimensions:405x210x65mm

Antenna weight:1.2kg

Radiating Element Material:AI
