MATCHMASTER 5G CELL ANTENNA 690-3700MHz 1.8-4.7dBi 3M LL195 – SMAp : 56MM-5G01

Description

Product Summary

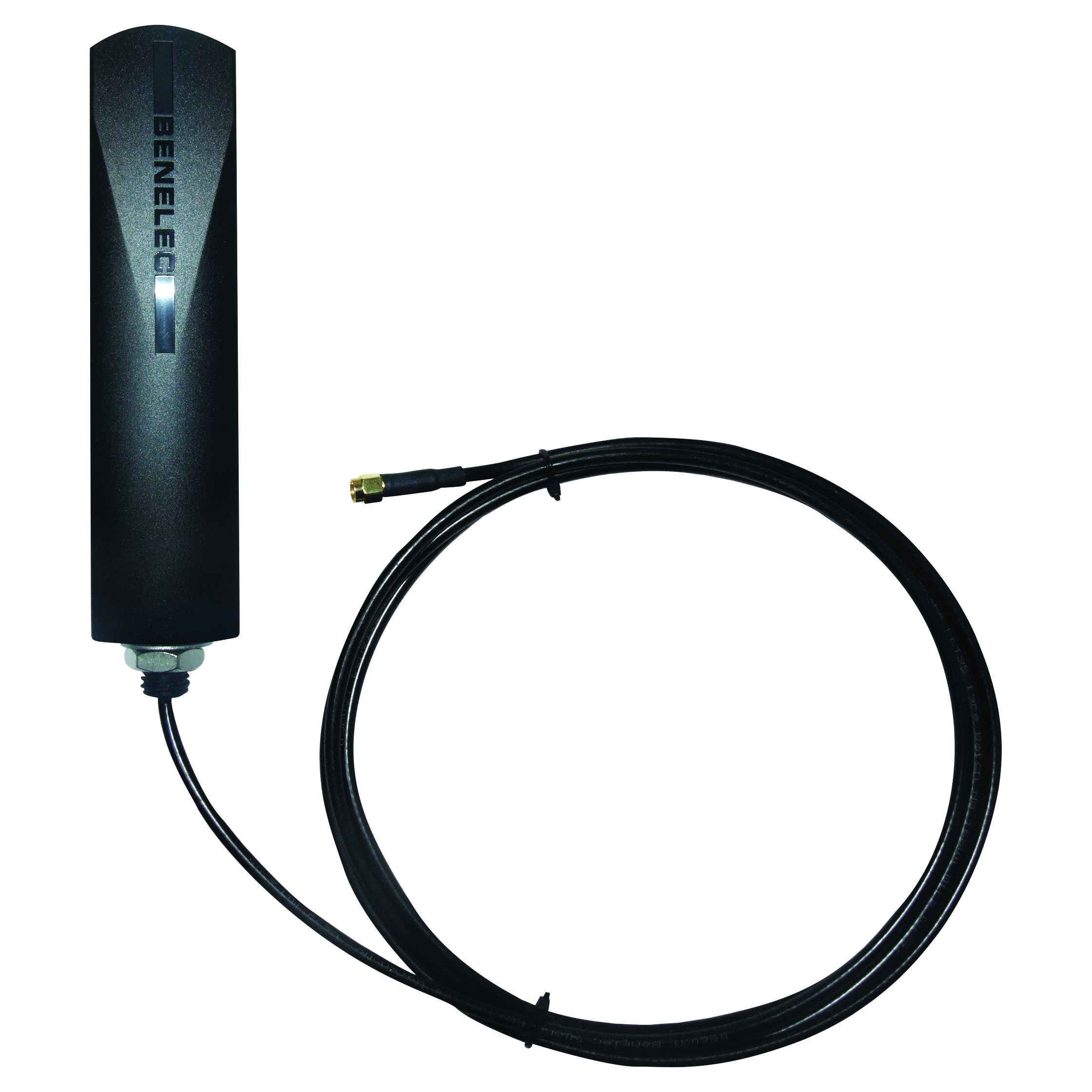

The 5G01 is an economically priced, compact, unity gain 5G antenna suited for use in the bands 690-960, 1710-2700 & 3575-3700 MHz. It comes standard with 3 meters of low loss cable terminating in an SMA male connector & is suited for mounting onto a wall bracket. This antenna can be used inside or outside, in fixed applications. The 5G01 is decoupled from the feed cable and offers a clean radiation pattern at all frequencies.

Features and Benefits

5G/4G/3G multi-band performance omnidirectional compact antenna with 3m LL/LMR195 cable with SMA male.

1.8-4.7dBi Gain 690-3700MHz.

Factory tuned no further tuning required.

Designed and manufactured in Australia

Ground plane independent

May be mounted vertically or horizontally.

Pack Quantity

Inner: 1 box of 1 piece

Specifications

Frequency:@ 690-960 MHz, Tuned BW 270MHz; 1710-2700 MHz TBW 990MHz; 3575-3700 TBW 125MHz

VSWR:2.0:1 max

Gain:1.8-4.7 dBi

Impedance:50 Ohm nom

Radiation Pattern:Omni directional

E Plane Beamwidth:80 Deg

Projected area:0.008370 SQM

Power:5W

Length:186mm

Weight:200g

Termination:3m low loss cable tail, SMA male

Windloading @160 KPH:1.85kg
