MATCHMASTER 4G OMNI MOBILE HIGH GAIN WITH SPRING BASE S/STEEL : 56MM-4G01-M
$175.00 inc GST
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Summary

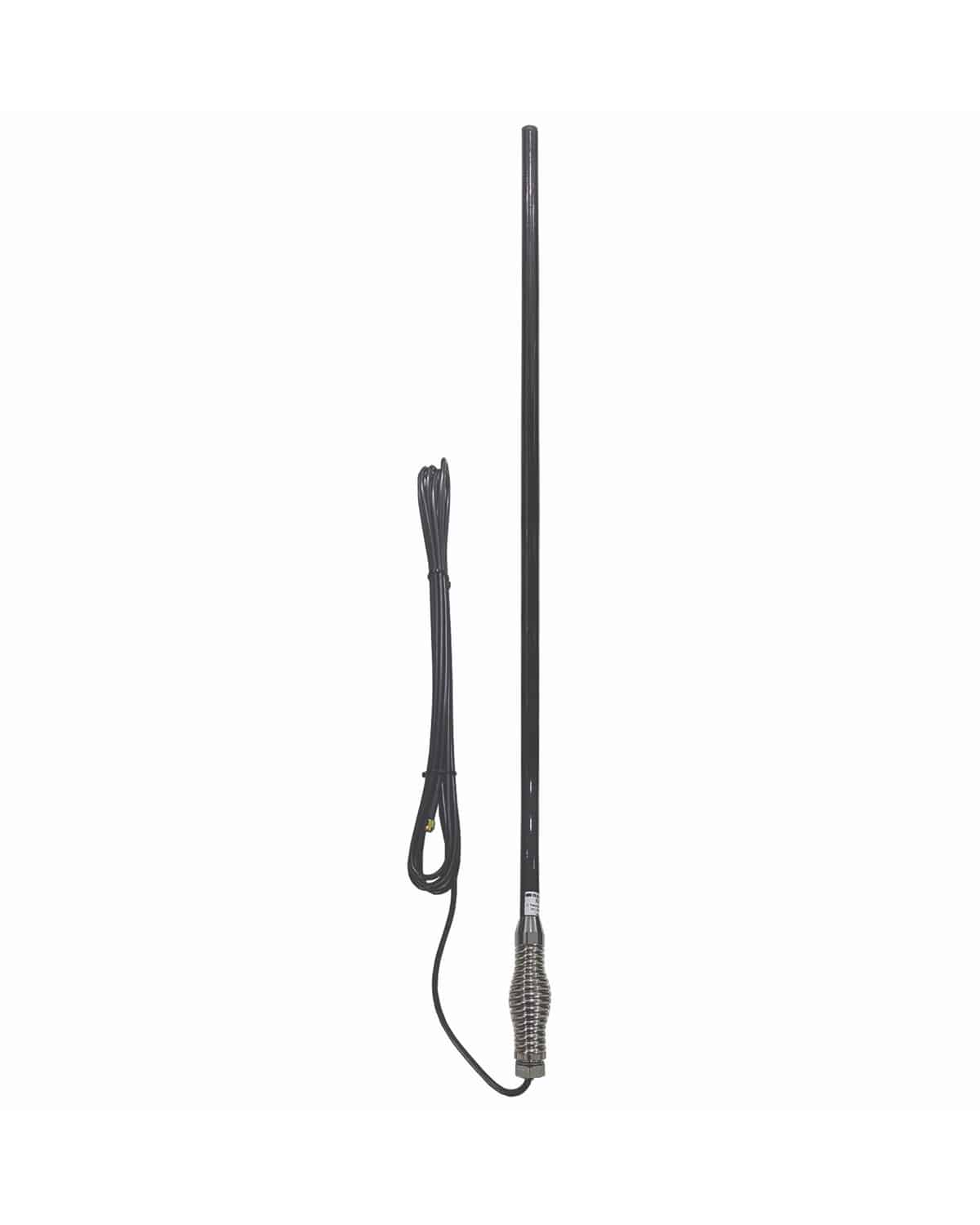

The 4G01-M is an antenna kit with an Omni-directional 4G multi-band antenna in bands 690-960MHz and 1710-2700MHz with a stainless steel spring mount base for vehicle durability. The 4G01-M antenna does away with the need for many separate antennas whilst maintaining high gain across band 690-960MHz. In addition, the antenna utilizes a low loss N female connector and is lightweight, making for easy mounting.
Features and Benefits
4G multi-band performance omni-directional antenna with stainless steel spring mount base included
6.0dBi gain @ 690-960 MHz, 3.0dBi gain @ 1710-2700 MHz
Factory tuned. No further tuning is required
Designed and manufactured in Australia
Fibreglass and thick-walled radome with stainless steel spring mount base
Simple and easy to use and install
Specifications
Frequency:@690-960MHz Tuned Bandwidth 270MHz, @1710-2700MHz Tuned Bandwidth 990MHz
Gain:6.0dBi @690-960 MHz & 3.0dBi @1710-2700MHz
Impedance:50Ω
Operating VSWR:2:1
Radiation Pattern:Omni Directional
E Plane Beamwidth:20 Deg @ 720-960MHz
Length:890mm (includes spring assembly)
Width:Fiberglass: 16mm Spring: 35mm
Weight:0.75kg
Termination:SMA Plug, 5m RG58 Cable Tail
Construction:Fibreglass Radome, S/Steel Spring with Nickel Plated Brass fitting
