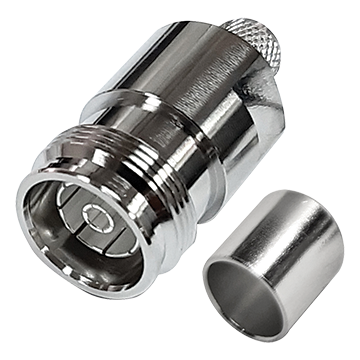

MATCHMASTER 4.3-10 SOCKET LL400 SPRING FINGER CENTRE : 56MM-43-10S

Description

Product Summary

The 43-10s is a straight 4.3-10 Socket (Female) connector for 10mm solid core 50ohm coax LL400/LMR400 and similar, spring finger inner & crimp outer. Teflon (PTFE) dielectric and internal silicon rubber gasket for waterproofing

Features and Benefits

4.3-10 socket (female) connector for use with 56MM-E400 series cable

Impedance: 50? nominal with DC-6GHz frequency range

Temperature range of -45 to +125 degrees C+A11:B12elsius

Brass body with SUCO plating and beryllium copper silver-coated centre pin

Internal silicon rubber gasket for waterproofing

Passive intermodulation: (2 x 20W) -150dBc

Specifications

Impedance: 50?

Frequency Range: DC~6GHz

VSWR: 1.20:1 @ DC ~3GHz Max

VSWR: 1.30:1 @ 3~6GHz Max

Insertion Loss: 0.15dB @ DC~3GHz Max

Insertion Loss: 0.25dB @ 3~6GHz Max

Temperature Range: -45 to +125 ?C

Passive Intermodulation: (2 x 20W) -150dBc Min
