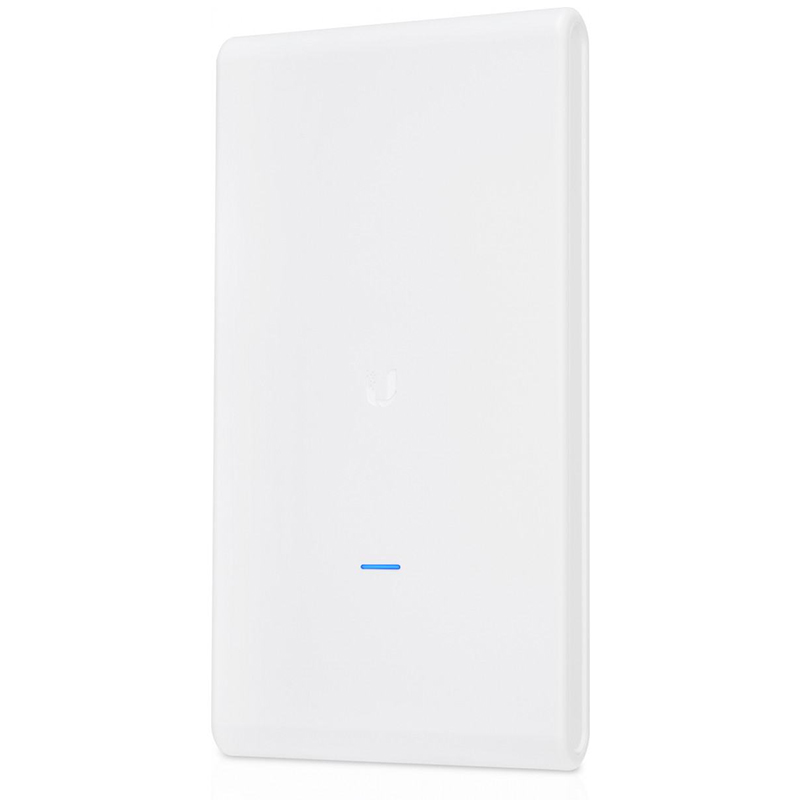

Ubiquiti Networks Ubiquiti 5Ghz UniFi Wireless Access Point WT5-UAPACMPRO

Description

UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a refined industrial design and can be easily installed using the included mounting hardware.

Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high density client deployments requiring low latency and high uptime performance.

Product features:

• Powerful coverage with built-in dual-band omnidirectional antennas for extensive coverage outdoors

• Flexible installation with wall and pole mounting (accessories included)

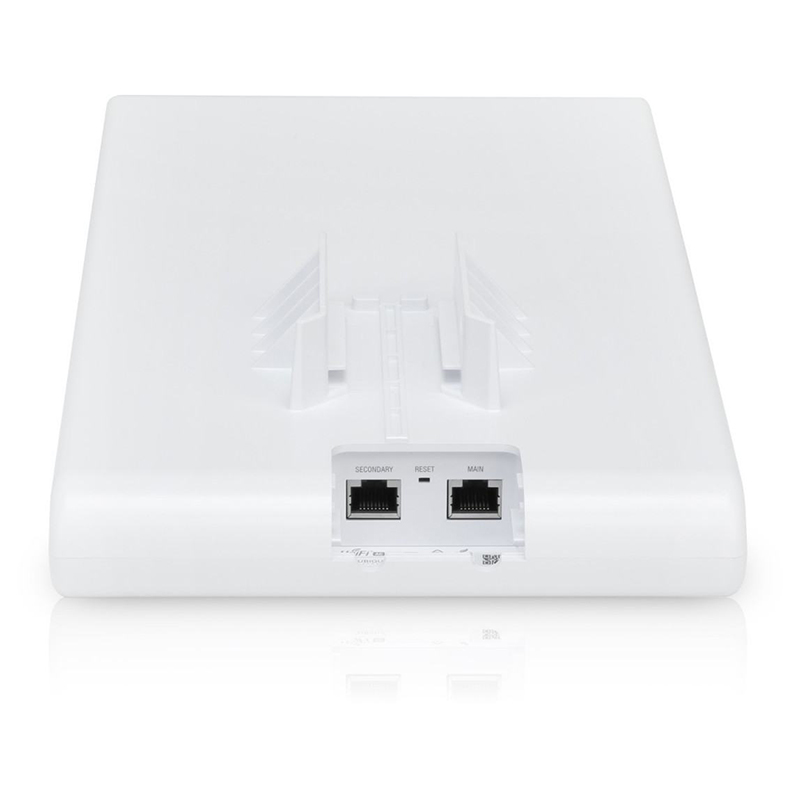

• Dual Gigabit Ethernet Ports – Primary port for data and PoE; Secondary port for bridging

• Multiple power options via 802.3af switch, UniFi PoE Switch or included Gigabit PoE adapter

• Weather-resistant form factor designed to withstand the elements, ideal for outdoors installation

SPECIFICATIONS

Dimensions: 343.2 x 181.2 x 60.2mm

Weight: 633g

Networking Interface: 2 x 10/100/1000 Ethernet Ports

Buttons: Reset

Power Method: 802.3af PoE (Supported Voltage Range: 44 to 57VDC)

Power Supply: 48V, 0.5A PoE Gigabit Adapter

Power Save: Supported

Maximum Power Consumption: 9W

Maximum TX Power: 2.4GHz/5Ghz: 22dBm

Antennas: 3 x Internal Dual-Band Antennas 8 dBi

Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac

Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID: Up to 8 per Radio

Mounting: Wall/Pole (Pole Kit Included)

Operating Temperature: -40 ~ 70°C

Operating Humidity: 5 to 95% Noncondensing

Certifications: CE, FCC, IC

VLAN: 802.1Q

Advanced QoS: Per-User Rate Limiting

Guest Traffic Isolation: Supported

WMM: Voice, Video, Best Effort, and Background

Concurrent Clients: 250+

802.11ac: 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80)

802.11n: 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

Warranty (Years): 1

Shipping Weight and Dimensions

Includes product packaging

Width: 360 mm

Height: 80 mm

Depth: 200 mm

Weight: 0.80 kg
