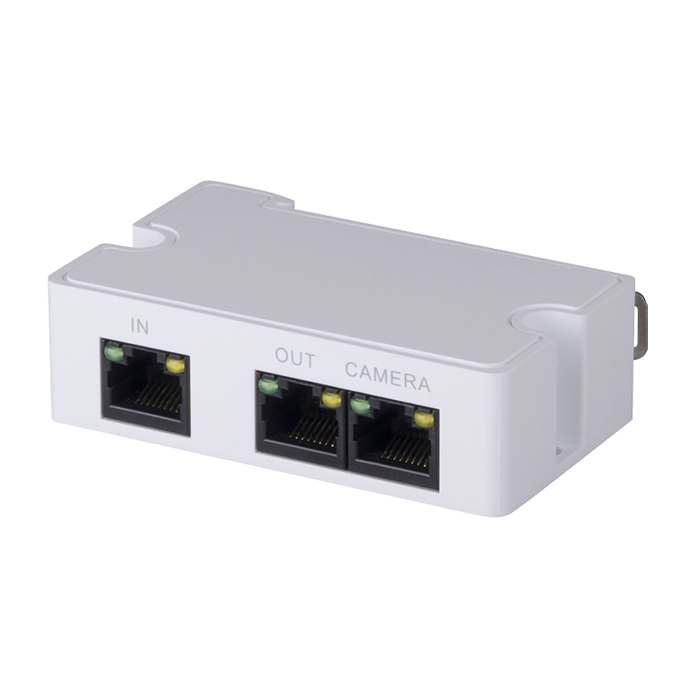

VIP Vision Power Over Ethernet Extender for Midspans VSPOE-EX

Description

The VSPOE-EX is an extender for the VSPOE-MS 60W PoE Midspan. It enables the cascading of PoE to up to three IP cameras, up to a maximum distance of 300m from the network switch. Hi-PoE ports from capable PoE switches can be used in place of the VSPOE-MS midspan.

• 1 x 10/100 Base-T PoE receiver port

• 1 x 10/100 Base-T PoE supply port for following VSPOE-EX extender

• 1 x 10/100 Base-T PoE supply for IP camera / device

• Active extender provides PoE to up to 3 IP surveillance cameras*

• IEEE 802.3af/at standard for IP camera PoE power supply

• Supports Ethernet data exchange

• Junction box or DIN rail mounting

*Device power consumption must be ≤8W

SPECIFICATIONS

Ethernet Ports: 3 x 10/100 Base-T (receiver port / extender port / device port)

PoE Protocol: PoE Power Supply

PoE Power Supply: Indicators

Indicators: Power indicator / PoE status indicator

Exchange Mode: N/A

Lightning Protection: N/A

Operating Environment: -30° ~ 65°C / 10 ~ 90% RH (max.)

Mounting Options: Desktop / DIN Rail

Weight: 0.06kg

Dimensions: 79 x 52 x 23mm

Warranty (Years): 2

Shipping Weight and Dimensions

Includes product packaging

Width: 52 mm

Height: 79 mm

Depth: 23 mm

Weight: 0.57 kg
