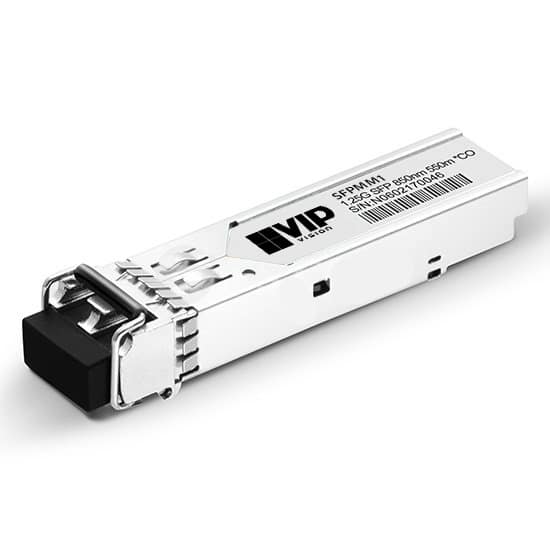

VIP Vision Mini GBIC / SFP Multi-mode Fibre Adapter (MMF) SFPMM1

Description

The SFPMM1 is a compact, hot-pluggable SFP module for linking high speed optical fibre infrastructure to a network. Easily configure and upgrade networks for high-speed networking over optical fibre, with a bit rate of up to 1.25Gbps.

Product features:
• Mini GBIC / SFP optical fibre adapter
• Transfer data over optical fibre at up to 1.25Gbps
• SFP (Small Form-factor Pluggable)
• Compatible with OM1, OM2, OM3 & OM4 multimode fibre
• Up to 550m transmission distance over OM2 MMF (300m over OM1 MMF)
• 850nm VCSEL laser transmitter
• Hot-pluggable, allowing for installation and removal while the system is running
• Built-in digital diagnostic functions, including optical power monitoring

Installed in the 1000 Base-X (Combo port) SFP ports of VIP Vision PoE switches.

Specifications

Interface
Cable Type: Multi-mode Fibre
Form Type: SFP (Small Form-factor Pluggable)
Interface: LC duplex
DOM Support: Yes
Max Bit Rate: 1.25Gb/s

Transmitter / Receiver
TX Power: -9.5 ~ – 3dBm
Protocols: SFF-8472 MSA Compliant, IEEE 802.3z
Wavelength: 850nm
Receiver Sensitivity: < -17dBm

Environment
Power Supply: <3.5V / 300mA
Operating Environment: -40° ~ 85°C / RH95% (max)

Other
Max Cable Distance: 550m over OM2 MMF (50/125µm), 300m over OM1 MMF (62.5/125µm)
Warranty (Years): 1

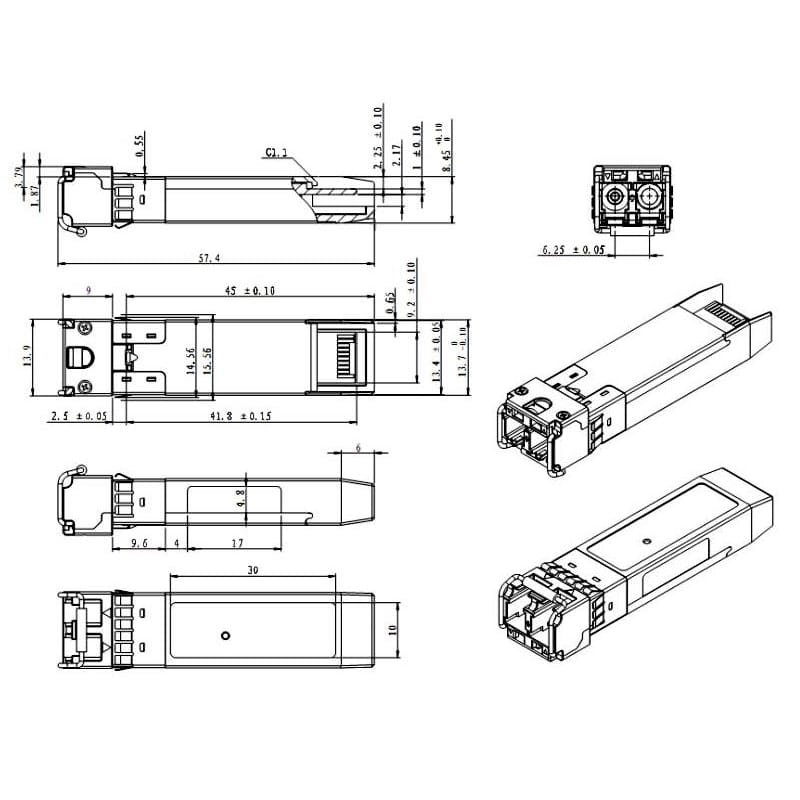

Shipping Weight and Dimensions Includes product packaging

Width: 59 mm
Height: 12 mm
Depth: 12 mm
Weight: 0.03 kg
