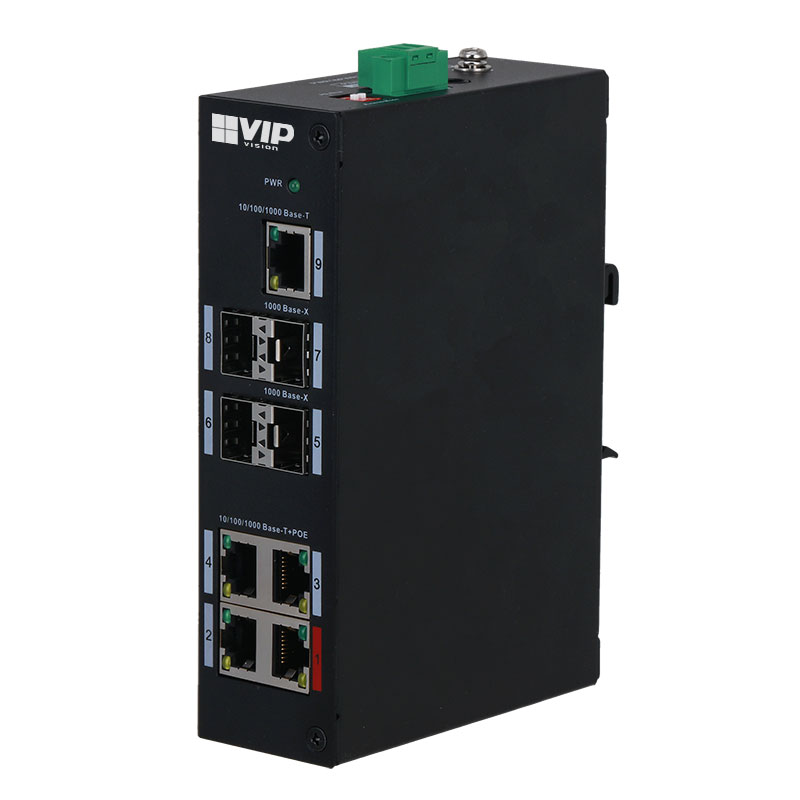

VIP Vision 9-port Unmanaged Gigabit Fibre Access Ethernet Switch VSETH-SW9GF

Description

The VSETH-SW9GF is a 9-port Gigabit Ethernet switch designed for integrating with fibre-optic network infrastructure. Connect IP devices including surveillance, telephones, access points and more to fibre backbone with multiple gigabit SFP & Ethernet ports. It is ideal in connecting large facilities such as school & university campuses.

Product features:

• 5 x Gigabit 1000Mbps Ethernet ports

• 4 x Gigabit 1000Mbps SFP fibre ports

• Unmanaged switch for plug and play applications

• DIN rail mountable for neat rackmount installations

• Professional appearance full metal enclosure

• Lightning overvoltage protection up to 4kV

• Electrostatic discharge protection up to 8kVW

• Operates in extreme temperatures from -30°~65°C

SPECIFICATIONS

Ports: 9 ports

Speed: Device Ports

Device Ports: Uplink Ports

Uplink Ports: None (Use device ports)

Switching Capacity: 33Gbps

Packet Forwarding Rate: 13.39Mpps

Exchange Mode: Store & forward

PoE: No

PoE Protocol: N/A

Switch Power Load: N/A

Switch Management: Unmanaged

MAC Address Capacity: 4K

Virtual LAN: N/A

Network Time Protocol: N/A

Spanning Tree Protocol: N/A

Port Aggregation: N/A

Port Mirroring: N/A

LLDP: N/A

DHCP: N/A

Extend Mode: N/A

Flow Control: N/A

Security Features: N/A

System Maintenance: N/A

Quality of Service: N/A

Network Management: N/A

PoE Management: N/A

Input Power: 9 ~ 57VDC

Lightning Protection: Common Mode: 4KV / Differential Mode: 2KV

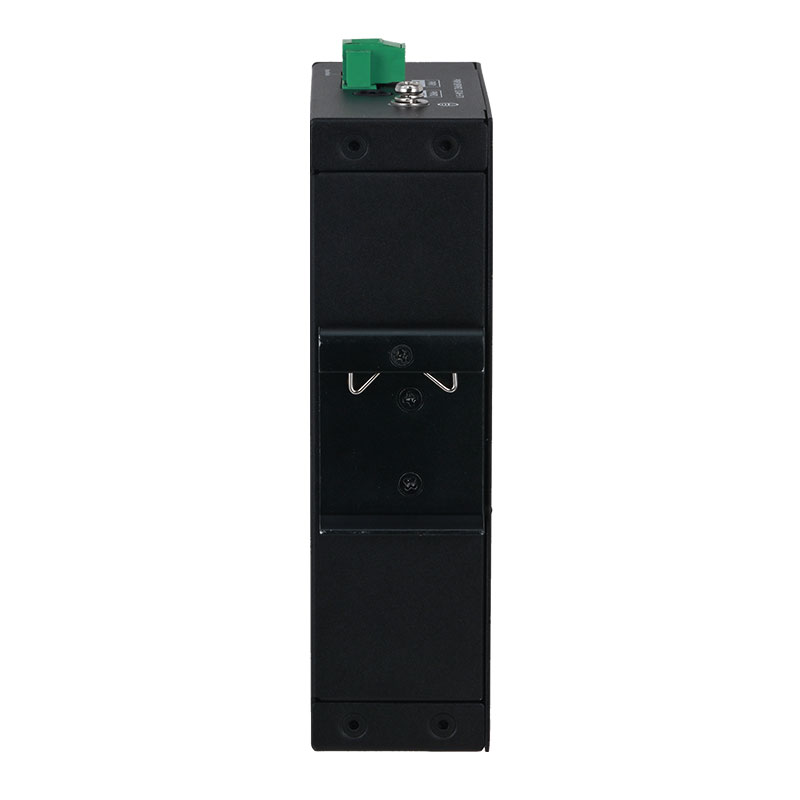

Mounting Options: DIN rail

Operating Environment: -30°C~65°C / RH10%~90%

Weight: 0.62kg

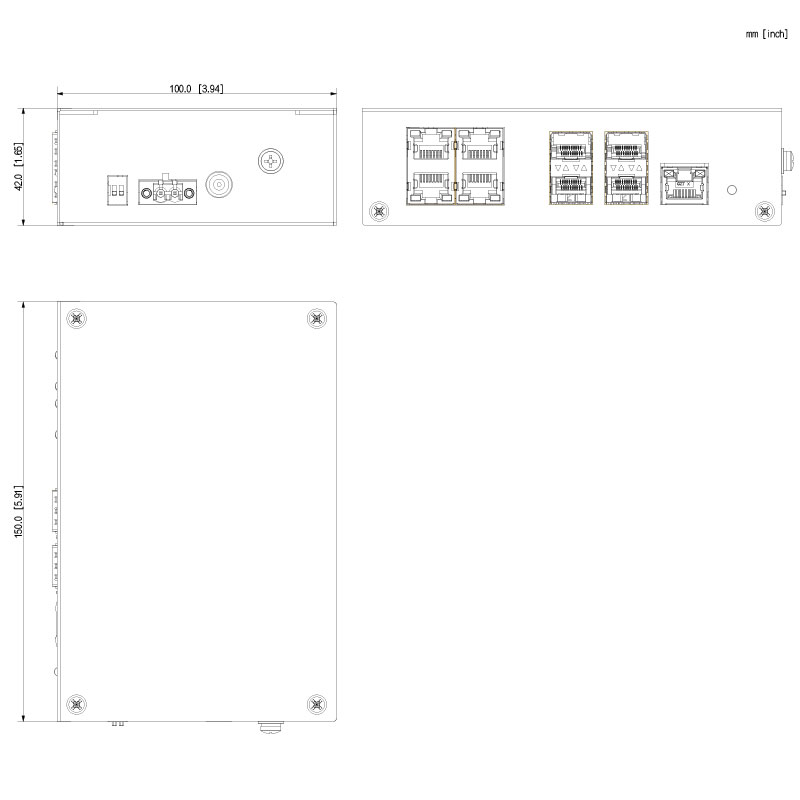

Dimensions: 150 x 100 x 42mm

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 80 mm

Height: 270 mm

Depth: 240 mm

Weight: 1.40 kg
