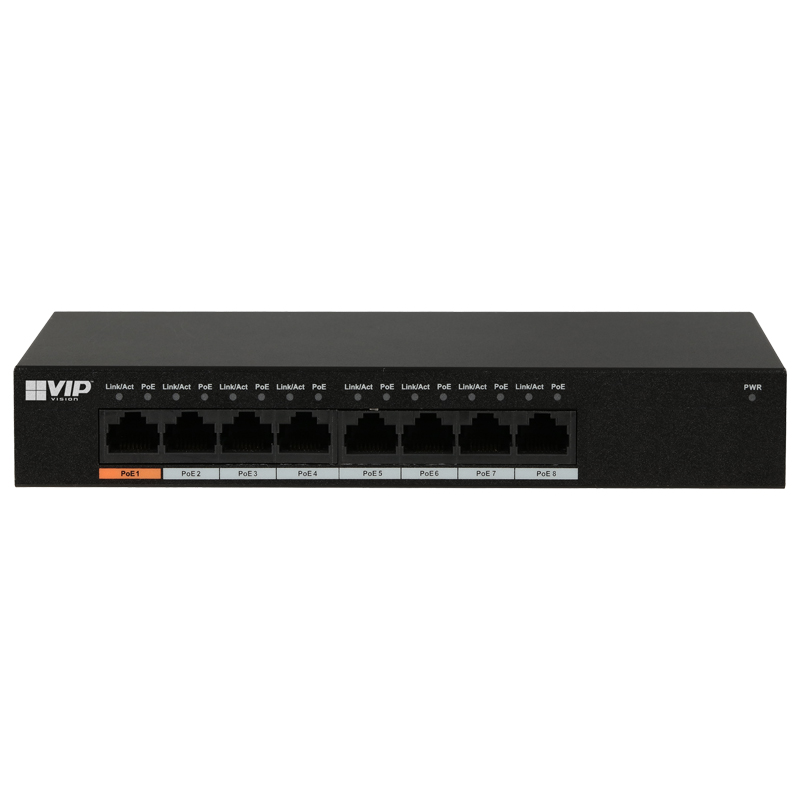

VIP Vision 8-port Unmanaged Gigabit Hi-PoE Ethernet Switch VSPOE-SWB8G

Description

The VSPOE-SWB8G is a desktop, gigabit Hi-PoE switch in 8 ports. It is a high speed networking solution for home & SOHO applications, with flexibility for a range of high-powered PoE devices. It is ideal for building secondary networks with high bandwidth demand whilst simultaneously providing Power over Ethernet.

• 7 x PoE+ device ports with 1000Mbps per port

• 1 x Hi-PoE device port with 1000Mbps per port

• Device ports can be utilised as uplink ports

• Total PoE power load up to 96W

• Unmanaged switch for plug & play applications

• Desktop mount for home and SOHO use

• Professional appearance full metal enclosure

SPECIFICATIONS

Ports: 8 ports

Speed: Device Ports

Device Ports: Uplink Ports

Uplink Ports: N/A

Switching Capacity: 20Gbps

Packet Forwarding Rate: 11.9Mbps

Exchange Mode: Store & forward

PoE: Yes

PoE Protocol: PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE

Switch Power Load: Port 1: ≤60W / Ports 2~8: ≤30W (Total: ≤96W)

Switch Management: Unmanaged

MAC Address Capacity: 8K

Virtual LAN: N/A

Network Time Protocol: N/A

Spanning Tree Protocol: N/A

Port Aggregation: N/A

Port Mirroring: N/A

LLDP: N/A

DHCP: N/A

Extend Mode: N/A

Flow Control: Enabled

Security Features: N/A

System Maintenance: N/A

Quality of Service: N/A

Network Management: N/A

PoE Management: N/A

Input Power: 48 ~ 57VDC

Lightning Protection: Common Mode: 4kV / Differential Mode: 2kV

Mounting Options: Desktop

Operating Environment: -10° ~ 55°C / RH90% (max)

Weight: 0.49kg

Dimensions: 190 x 100 x 30mm

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 80 mm

Height: 270 mm

Depth: 240 mm

Weight: 1.30 kg
