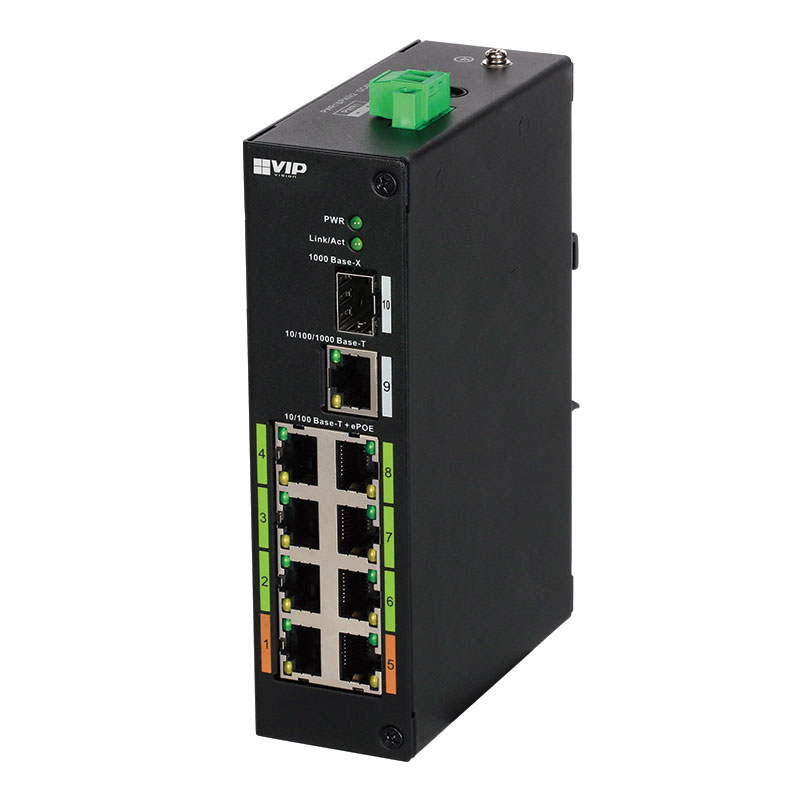

VIP Vision 8-port Unmanaged Fast Extended PoE Ethernet Switch VSPOE-SW8E

Description

The VSPOE-SW8E achieves incredible network & power transmission distances over regular Ethernet cable. Extend CCTV installations up to 800m when paired with compatible extended PoE (ePoE) IP surveillance cameras. The VSPOE-SW8E also features Hi-PoE device support, multiple uplink port types and option for DIN rail mounting.

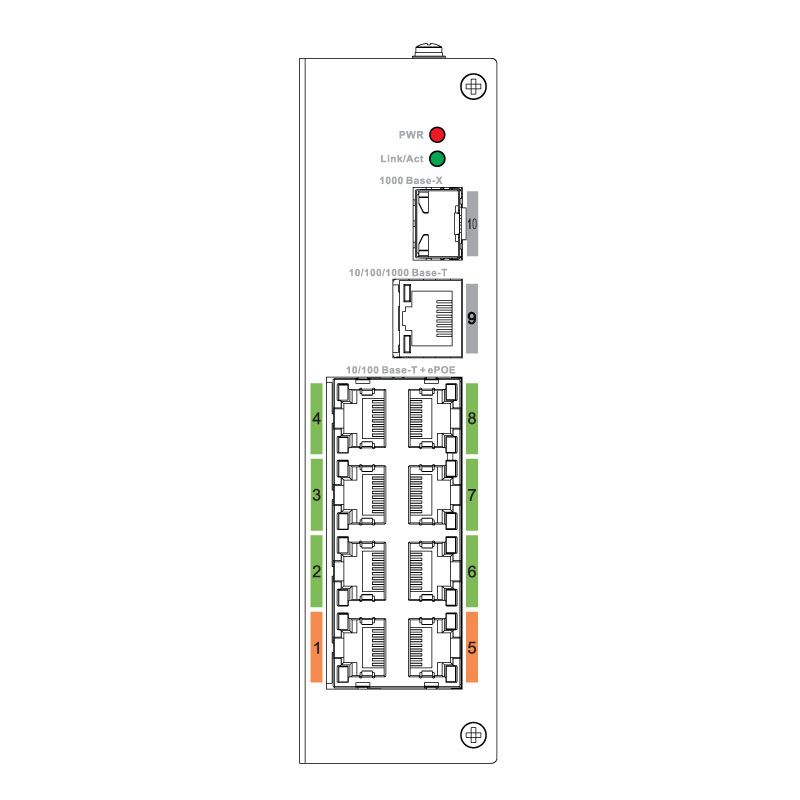

• 8 x PoE+ device ports with 100Mbps per port (ePoE capable)

• 1 x Hi-PoE device port with 100Mbps per port (ePoE capable)

• 1 x 1000Mbps Gigabit RJ45 & SFP fibre uplink ports

• Total PoE power load up to 120W

• Extend up to 300m@100Mbps and 800m@10Mbps

• Unmanaged switch for plug and play applications

• DIN rail mountable for neat rackmount installations

• Professional appearance full metal enclosure

* Refer to datasheet for ePoE transmission performance tables

SPECIFICATIONS

Ports: 8 ports

Speed: Device Ports

Device Ports: Uplink Ports

Uplink Ports: 1 x 1000 Base-X / 1 x 10/100/1000 Base-T

Switching Capacity: 8.8Gbps

Packet Forwarding Rate: 4.17Mpps

Exchange Mode: Store & forward

PoE: Yes

PoE Protocol: PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE

Switch Power Load: Ports 1, 5: ≤60W / Port 2, 3, 4, 6, 7, 8: ≤30W (Total: ≤120W)

Switch Management: Unmanaged

MAC Address Capacity: 8K

Virtual LAN: N/A

Network Time Protocol: N/A

Spanning Tree Protocol: N/A

Port Aggregation: N/A

Port Mirroring: N/A

LLDP: N/A

DHCP: N/A

Extend Mode: N/A

Flow Control: Enabled

Security Features: N/A

System Maintenance: N/A

Quality of Service: N/A

Network Management: N/A

PoE Management: N/A

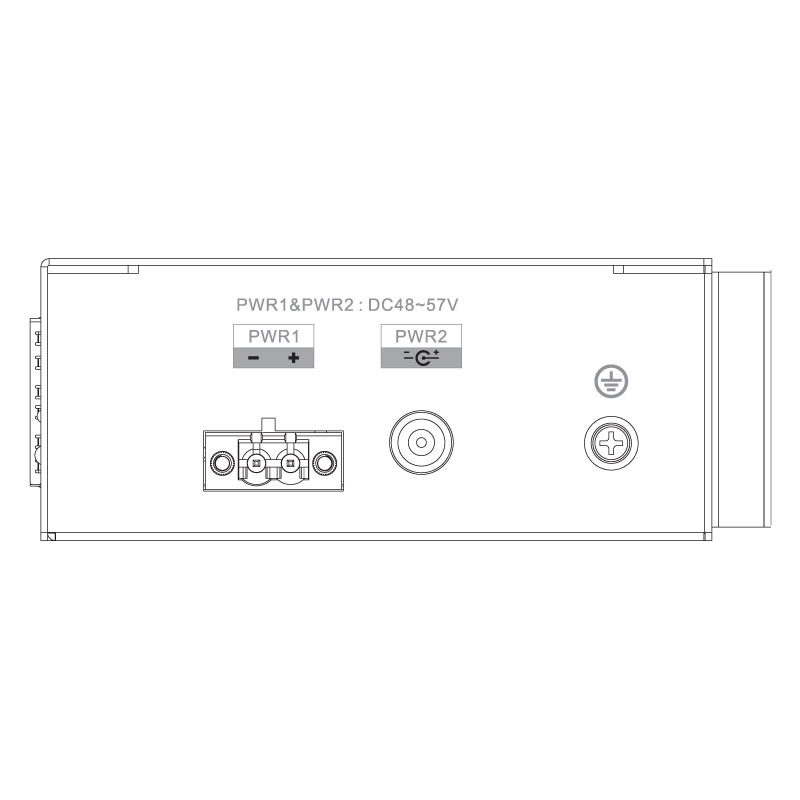

Input Power: 48 ~ 57VDC

Lightning Protection: Common Mode: 4kV / Differential Mode: 2kV

Mounting Options: DIN rail

Operating Environment: -30°C~65°C / RH10%~90%

Weight: 0.59kg

Dimensions: 150 x 100 x 42mm

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 80 mm

Height: 270 mm

Depth: 240 mm

Weight: 1.20 kg
