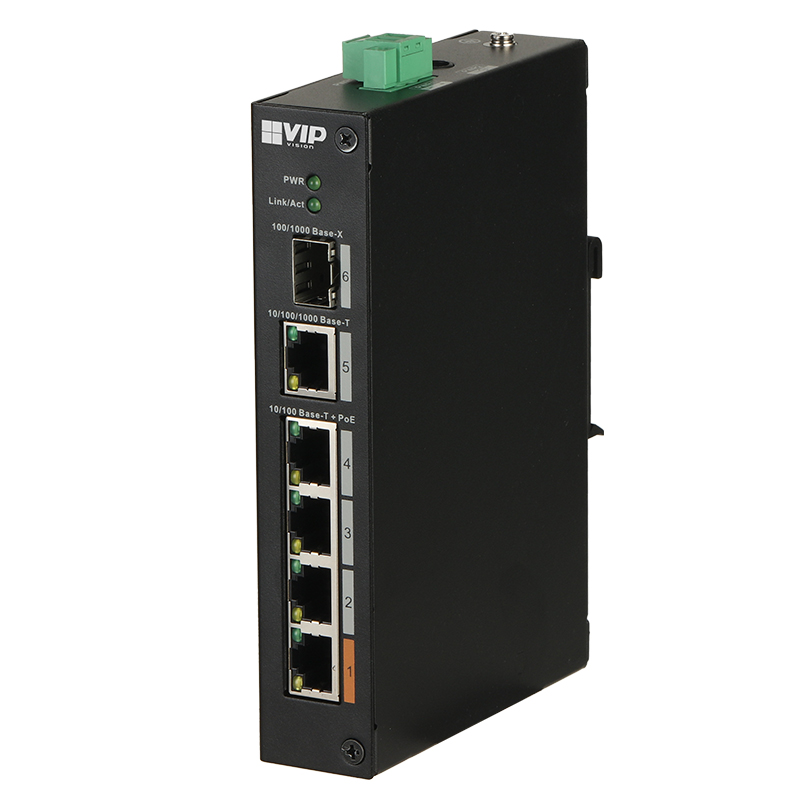

VIP Vision 4-port Unmanaged Fast PoE Ethernet Switch VSPOE-SW4H

Description

The VSPOE-SW4H is a DIN rail mountable, fast PoE switch in 4 ports. It is ideal for building secondary networks – providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

Product features:

• 3 x PoE+ device ports with 100Mbps per port

• 1 x Hi-PoE device port with 100Mbps per port

• 1 x 1000Mbps Gigabit RJ45 & SFP fibre uplink ports

• Total PoE power load up to 60W

• Unmanaged switch for plug and play applications

• DIN rail mountable for neat rackmount installations

• Professional appearance full metal enclosure

SPECIFICATIONS

Ports: 4 ports

Speed: Device Ports

Device Ports: Uplink Ports

Uplink Ports: 1 x 100/1000 Base-X / 1 x 10/100/1000 Base-T

Switching Capacity: 6.8Gbps

Packet Forwarding Rate: 3.57Mpps

Exchange Mode: Store & forward

PoE: Yes

PoE Protocol: PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE

Switch Power Load: Ports 1: ≤60W / Port 2-4: ≤30W (Total: ≤60W)

Switch Management: Unmanaged

MAC Address Capacity: 8K

Virtual LAN: N/A

Network Time Protocol: N/A

Spanning Tree Protocol: N/A

Port Aggregation: N/A

Port Mirroring: N/A

LLDP: N/A

DHCP: N/A

Extend Mode: N/A

Flow Control: N/A

Security Features: N/A

System Maintenance: N/A

Quality of Service: N/A

Network Management: N/A

PoE Management: N/A

Input Power: 48 ~ 57VDC

Lightning Protection: Common Mode: 6kV / Differential Mode: 4kV

Mounting Options: DIN rail

Operating Environment: -30°C~65°C / RH5%~95%

Weight: 0.44kg

Dimensions: 150 x 108 x 30mm

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 80 mm

Height: 270 mm

Depth: 240 mm

Weight: 1.20 kg
