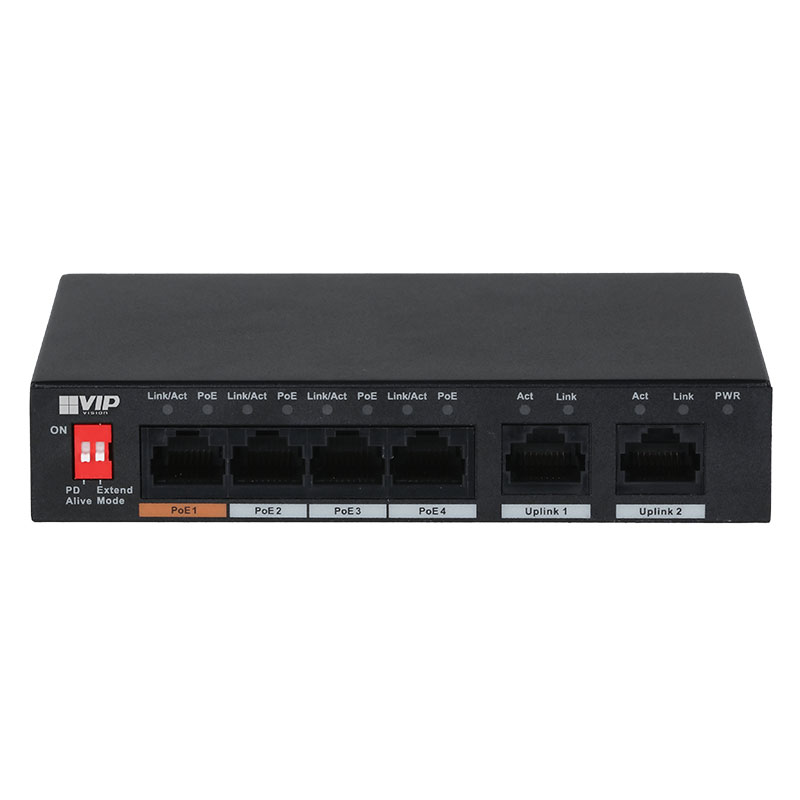

VIP Vision 4-port Unmanaged Fast Hi-PoE Ethernet Switch VSPOE-SWA4

Description

The VSPOE-SWA4 is a desktop mount, fast Hi-PoE switch in 4 ports. It is ideal for building secondary networks – providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

Product features:

• 4 x PoE+ device ports with 10/100Mbps per port

• 1 x Hi-PoE device port with 10/100Mbps per port

• Total PoE power load up to 60W

• Extend mode takes Ethernet cable runs up to 250m

• Unmanaged switch for plug & play applications

• Desktop mount for home and SOHO use

• Professional appearance full metal enclosure

SPECIFICATIONS

Ports: 4 ports

Speed: Device Ports

Device Ports: Uplink Ports

Uplink Ports: 1 x 10/100 Base-T

Switching Capacity: 1Gbps

Packet Forwarding Rate: 744Kpps

Exchange Mode: N/A

PoE: Yes

PoE Protocol: PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE

Switch Power Load: Ports 1: ≤60W / Port 2-4: ≤30W (Total: ≤60W)

Switch Management: Unmanaged

MAC Address Capacity: 1K

Virtual LAN: N/A

Network Time Protocol: N/A

Spanning Tree Protocol: N/A

Port Aggregation: N/A

Port Mirroring: N/A

LLDP: N/A

DHCP: N/A

Extend Mode: Up to 250m range at 10Mbps (all ports via device switch)

Flow Control: N/A

Security Features: N/A

System Maintenance: N/A

Quality of Service: N/A

Network Management: N/A

PoE Management: N/A

Input Power: 48 ~ 57VDC

Lightning Protection: Common Mode: 2kV / Differential Mode: 1kV

Mounting Options: Desktop

Operating Environment: -10°C~55°C / RH5%~95%

Weight: 0.29kg

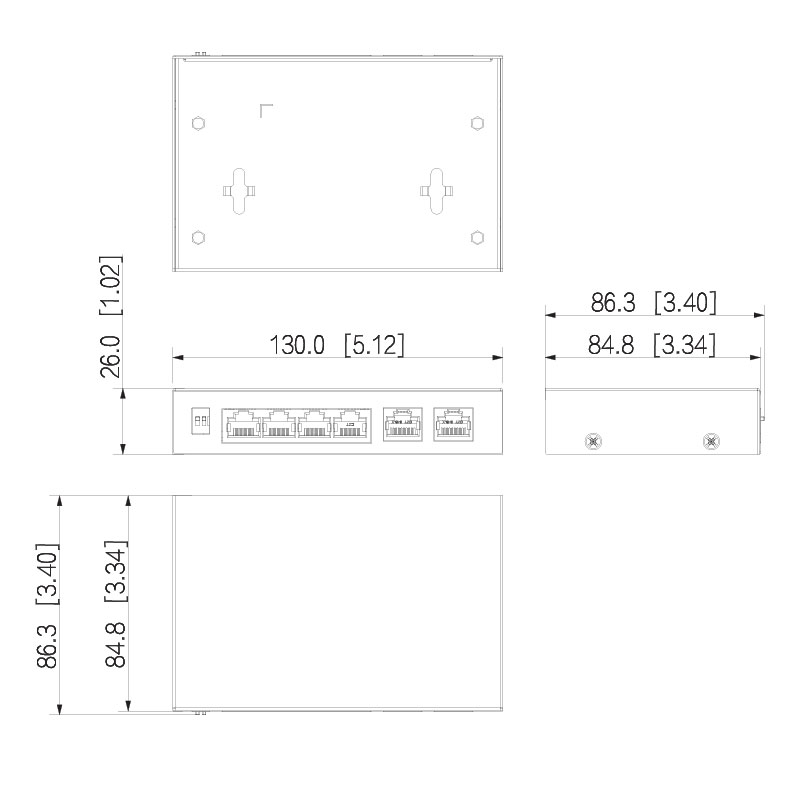

Dimensions: 130 x 85 x 26mm

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 80 mm

Height: 270 mm

Depth: 240 mm

Weight: 1.80 kg
