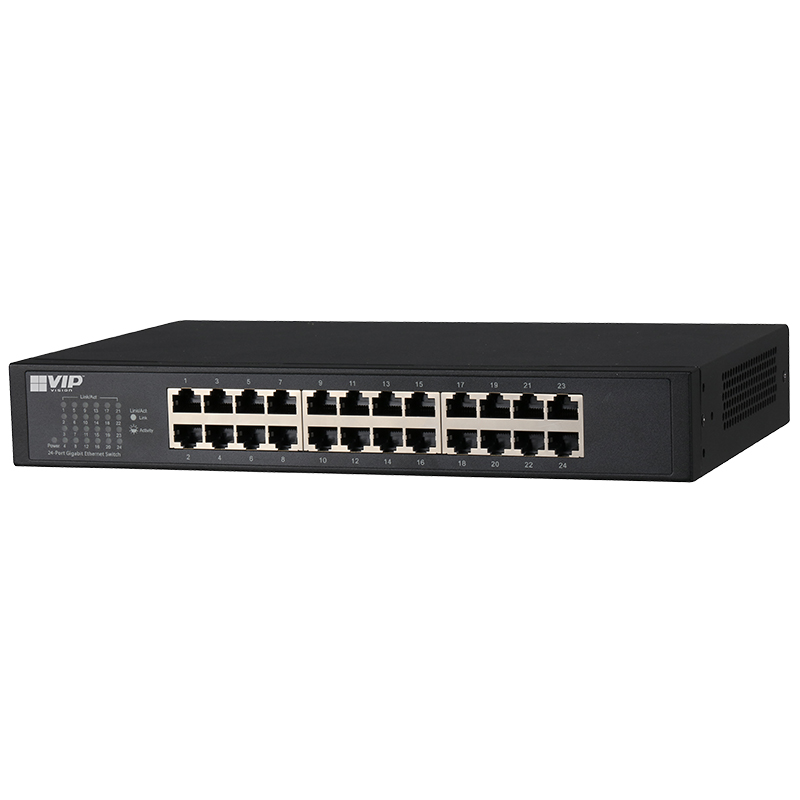

VIP Vision 24 Port Unmanaged Gigabit Ethernet Switch VSETH-SW24G

Description

The VSETH-SW24G is a 24-port Gigabit Ethernet switch that offers high speed data transmission and reliability. It is rackmount ready and is ideal for building gigabit network infrastructure for businesses.

• 24 x 10/100/1000Mbps Base-T Ethernet ports

• Unmanaged switch for affordability & ease of use

• LED indicators for display of information

• Rackmount switch with included cabinet tabs

• Professional appearance full metal enclosure

• Lightning overvoltage protection up to 6kV

• 100 ~ 240VAC input power

SPECIFICATIONS

Ports: 24 ports

Speed: Device Ports

Device Ports: Uplink Ports

Uplink Ports: N/A

Switching Capacity: 48Gbps

Packet Forwarding Rate: 35.7Mbps

Exchange Mode: Store & foward

PoE: No

PoE Protocol: N/A

Switch Power Load: N/A

Switch Management: Unmanaged

MAC Address Capacity: 8K

Virtual LAN: N/A

Network Time Protocol: N/A

Spanning Tree Protocol: N/A

Port Aggregation: N/A

Port Mirroring: N/A

LLDP: N/A

DHCP: N/A

Extend Mode: N/A

Flow Control: N/A

Security Features: N/A

System Maintenance: N/A

Quality of Service: N/A

Network Management: N/A

PoE Management: N/A

Input Power: 100 ~ 240VAC

Lightning Protection: Common Mode: 6KV / Differential Mode: 0.5V

Mounting Options: Rackmount Tabs (1RU)

Operating Environment: 0° ~ +40°C

Weight: 1.43kg

Dimensions: 294 x 178 x 44mm

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 380 mm

Height: 80 mm

Depth: 290 mm

Weight: 2.10 kg
