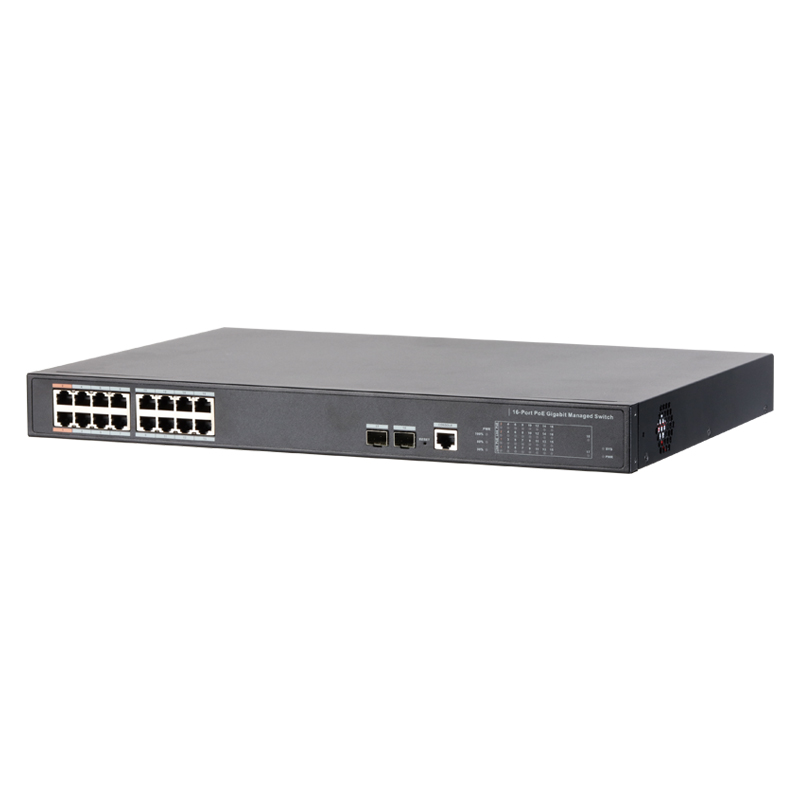

VIP Vision 16-port Managed Gigabit Hi-PoE Ethernet Switch VSPOE-SWB16G2

Description

The VSPOE-SWB16G2 is a rackmount, gigabit Hi-PoE switch in 16 ports. It is a versatile networking solution for demanding bandwidth requirements, with flexibility for a range of high-powered PoE devices. It is an L2 managed switch, offering configuration of network traffic quality of service, VLAN and a suite of other features.

• 14 x PoE+ device ports with 1000Mbps per port

• 2 x Hi-PoE device ports with 1000Mbps per port

• 2 x 1000Mbps Gigabit SFP (Base-X) uplink ports

• 1 x RS232 via RJ45 console port for management access

• Total PoE power load up to 240W

• Managed switch for network transmission customisation

• Rackmount tabs included for easy cabinet mounting

• Professional appearance full metal enclosure

SPECIFICATIONS

Ports: 16 ports

Speed: Device Ports

Device Ports: Uplink Ports

Uplink Ports: 2 x 1000 Base-X

Switching Capacity: 52Gbps

Packet Forwarding Rate: 23.81Mpps

Exchange Mode: Store & forward

PoE: Yes

PoE Protocol: PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE

Switch Power Load: Port 1-2: ≤60W / Ports 3-16: ≤30W (Total: ≤240W)

Switch Management: Managed

MAC Address Capacity: 8K

Virtual LAN: 802.1Q Standard VLAN

Network Time Protocol: Support

Spanning Tree Protocol: STP / RSTP / MSTP

Port Aggregation: Manual aggregation / LACP protocol

Port Mirroring: Many-to-one port mirroring

LLDP: Support

DHCP: DHCP Client / DHCP Server / DHCP Snooping

Extend Mode: N/A

Flow Control: Half-duplex based on back pressure type control; Full duplex based on PAUSE frame

Security Features: User management, SSH, HTTPS, SNMP v1/2/3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection

System Maintenance: Configuration file upload/download / Supports updated packet upload / System log

Quality of Service: Quality of Service based on CoS / DPL / PCP / DEI / DSCP / 8 output queue per port / Supports port shaping & port tag remarking

Network Management: WEB (HTTP protocol) / Serial / Support SNMP V1/V2/V3

PoE Management: N/A

Input Power: 100 ~ 240VAC

Lightning Protection: Common Mode: 2kV / Differential Mode: 1kV

Mounting Options: Rackmount Tabs (1RU)

Operating Environment: -10° ~ 55°C / RH90% (max)

Weight: 3.75kg

Dimensions: 440 x 300 x 44mm

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 530 mm

Height: 120 mm

Depth: 420 mm

Weight: 4.30 kg
