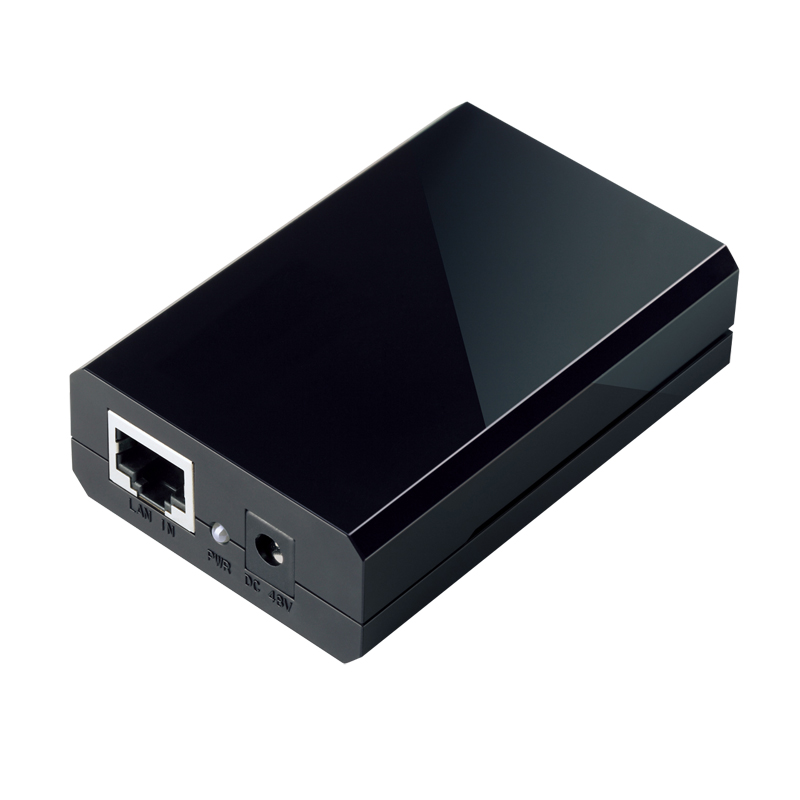

Power Over Ethernet 15.4W Injector WT-CAT5POEI

Description

This PoE Injector fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Features:

• IEEE 802.3af compliant

• Delivers power up to 100 meters

• Auto-determine the necessary power requirements

• Gigabit speed support

• Plug-and-Play, requires no configuration

• External power adapter supply

SPECIFICATIONS

Basic Function: Auto-Sensing Algorithm enables taking power from 802.3af PSE, Adjustable 5VDC，9VDC or 12VDC power supply, Plug-and-Play

Dimensions (W*D*H): 80.8 x 54 x 24 mm

LED Indicator: PWR (Green)

Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100 STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100 STP (maximum 100m), 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Operating Humidity: 10%~90% non-condensing

Operating Temperature: 0°C~40°C (32°F~104°F)

Ports: 1 10/100/1000Mbps Auto-Negotiation RJ45 PoE port (POWER+DATA IN), 1 10/100/1000Mbps Auto-Negotiation RJ45 LAN port (LAN OUT), 1 power socket (DC OUT)

Power: Adjustable output 5VDC/2A

Safety & Emission: FCC, CE

Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af

Storage Humidity: 5%~90% non-condensing

Storage Temperature: -40°C~70°C (-40°F~158°F)

Warranty (Years): 3

Shipping Weight and Dimensions

Includes product packaging

Width: 170 mm

Height: 200 mm

Depth: 65 mm

Weight: 0.34 kg
