VIP Vision 9-port Unmanaged Gigabit Fibre Access PoE Ethernet Switch VSETH-SW9GF2
$324.64 inc GST
Specifications
Switch Specification
Ports
9 ports
Speed
Gigabit 10/100/1000
Device Ports
4 x 10/100/1000 Base-T (PoE)
Uplink Ports
4 x 1000 Base-X / 1 x 10/100/1000 Base-T
Switching Capacity
33Gbps
Packet Forwarding Rate
13.39Mpps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
IEEE 802.3af/ IEEE 802.3at/ Hi-PoE/IEEE 802.3bt
Switch Power Load
Port 1 ?90 W, Port 2-4 ?30W, Total ?120W
Management
Switch Management
Unmanaged
MAC Address Capacity
4K
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
N/A
Flow Control
N/A
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Environmental
Input Power
48 ~ 57VDC
Lightning Protection
Common Mode: 4KV / Differential Mode: 2KV
Mounting Options
DIN rail
Operating Environment
-30?C~65?C / RH10%~90%
Weight
0.67kg

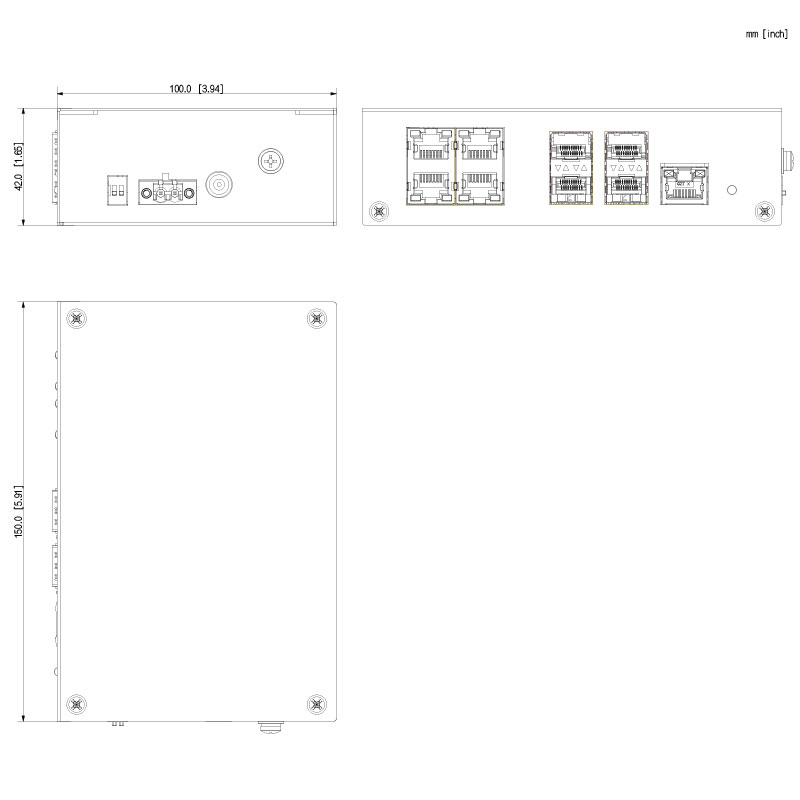

Dimensions
150 x 110 x 42mm
Other
ESD Protection
Air Discharge: 8kV / Contact Discharge: 6kV
Warranty (Years)
4
Shipping Weight and Dimensions
Includes product packaging
Width
110 mm
Height
85 mm
Depth
85 mm
Weight
1.40 kg
25 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
The VSETH-SW9GF2 is a 9-port Gigabit Ethernet switch designed for integrating with fibre-optic network infrastructure. Connect IP devices including surveillance, telephones, access points and more to fibre backbone with multiple gigabit SFP & Ethernet ports. It is ideal in connecting large facilities such as school & university campuses. This model features 4 ports of PoE.
Product features:
? 4 x Gigabit 1000Mbps PoE ports
? 4 x Gigabit 1000Mbps SFP fibre ports
? 1 x Gigabit 1000Mbps uplink port
? Total PoE power load up to 120W
? Unmanaged switch for plug and play applications
? DIN rail mountable for neat rackmount installations
? Full metal enclosure for professional appearance
? Lightning overvoltage protection up to 4kV
? Electrostatic discharge protection up to 8kVW
? Operates in extreme temperatures from -30?~65?C
