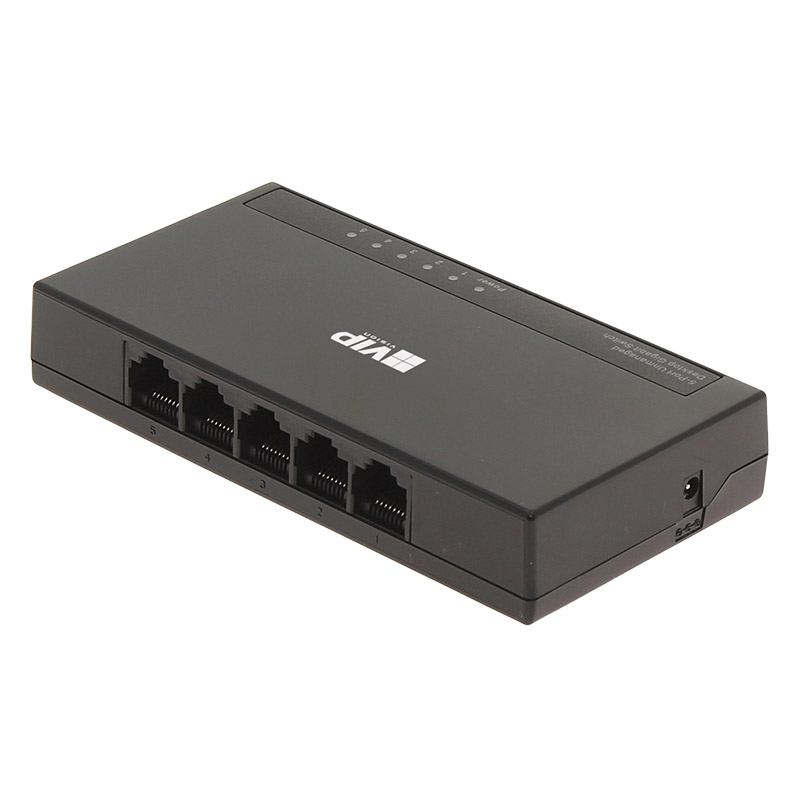

VIP Vision 5 Port Unmanaged Gigabit Ethernet Switch VSETH-SW5G2

Specifications

Switch Specification
Ports
5 ports
Speed
Gigabit 10/100/1000
Device Ports
5 x 10/100/1000 Base-T
Uplink Ports
N/A
Switching Capacity
10Gbps
Packet Forwarding Rate
7.44Mbps
Exchange Mode
Store & foward
Power over Ethernet
PoE
No
PoE Protocol
N/A
Switch Power Load
N/A
Management
Switch Management
Unmanaged
MAC Address Capacity
2K
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
N/A
Flow Control
N/A
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Environmental
Input Power
5VDC 1A
Lightning Protection
Common Mode: 2KV / Air Discharge: 8KV / Contact Discharge: 4KV
Mounting Options
Desktop
Operating Environment
0? ~ +40?C
Weight
0.09kg

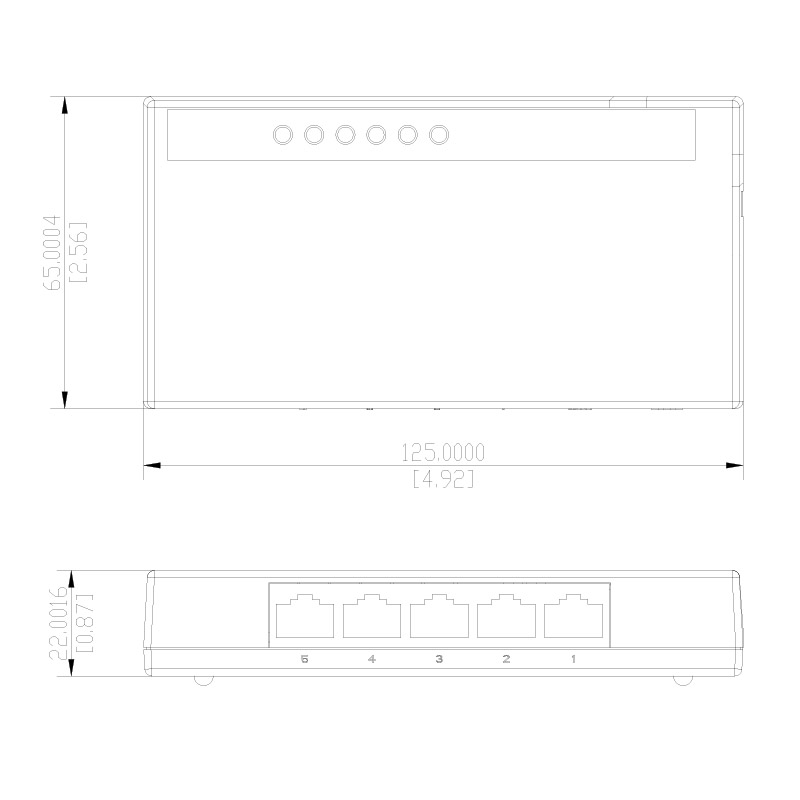

Dimensions
125mm x 65mm x 22mm
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
80 mm
Height
80 mm
Depth
130 mm
Weight
0.20 kg
