MSS Fibre 48F LOOSE TUBE CABLE SM PEnYLON CAB-LT-48-SM

Description

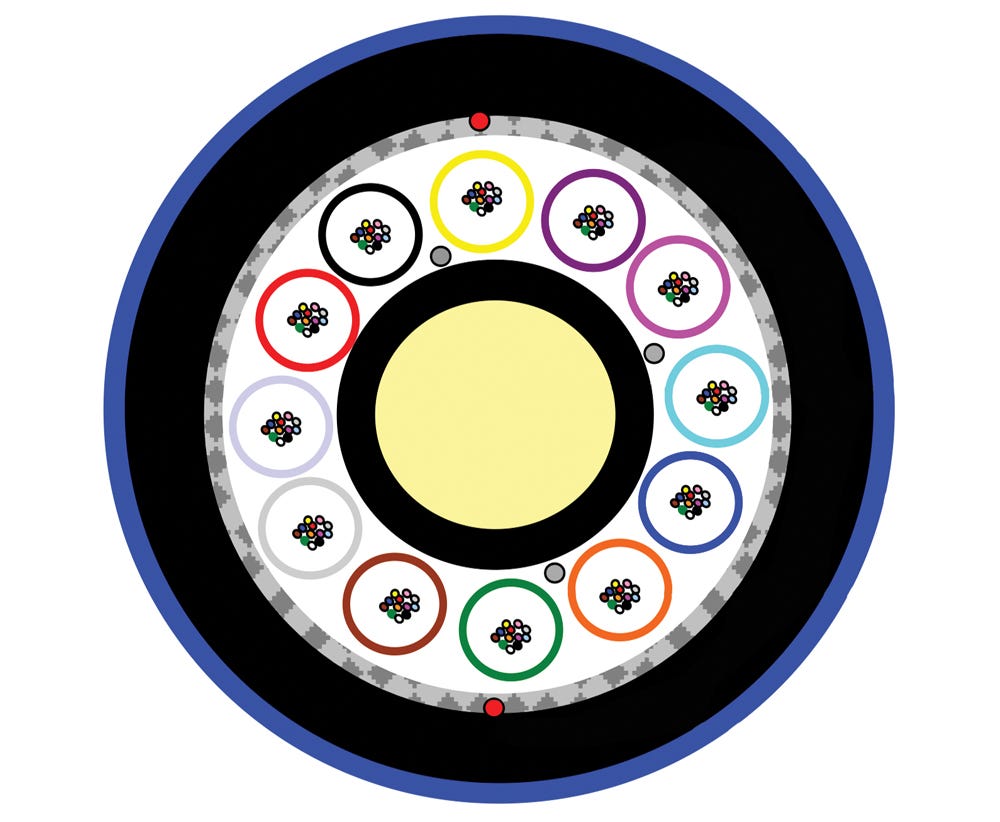

PE/NY dry blocked, central non-metallic strength member cable with optical fibres contained in jelly filled loose tubes (12/tube)

Blue nylon jacket over PE sheath

For direct burial underground use

Insect-resistant nylon jacket

Product Description

External Underground Loose Tube Cable – Singlemode

A termite resistant loose tube cable featuring a non-metallic strength member, gel filled tubes and a dry block core, for use in both direct bury and conduit/duct applications. The Thixotropic gel filled tubes and water swellable yarns (dry core) prevent water ingress while the non-metallic glass fibre reinforced plastic central strength member maintains excellent tensile strength.

This standard loose tube construction features an inner UV resistant Polyethylene (PE) sheath and an outer termite/UV resistant Polyamide Nylon jacket.

Other options include Composite (MM + SM), Sacrificial Sheath and CST Armour.

Loose Tube Cable Features

– Blue UV and Insect/Termite resistant Nylon (Polyamide) Jacket

– Black PE (Polyethylene) UV resistant Inner sheath

– Polyester based rip cords for easy sheath removal

– Water blocking tape and swellable yarns prevent ingress into the core

– Thixotropic gel filled tubes prevent water ingress into the tubes

– Non-metallic fibre reinforced plastic rod central strength member provides tensile strength

Technical Specifications

Mode: SM

# of Cores – Fibre: 8

Armoured: No

Sacrificial Sheath: No

Cable Jacket Material: Nylon

Fibre Cable Type/Construction: LT | Loose Tube

Jacket Colour: Blue
