MSS Fibre 12F FIRE RATED MONO TUBE CABLE SM CAB-MT-12-SMFR

Description

Indoor Fire rated fibre to IEC 60331-25 120 minutes at 750 Degrees Celsius max increase in attenuation 0.5dB

Jelly filled mono tube construction – red LSZH jacket

Mica tape and glass yarns

Product Description

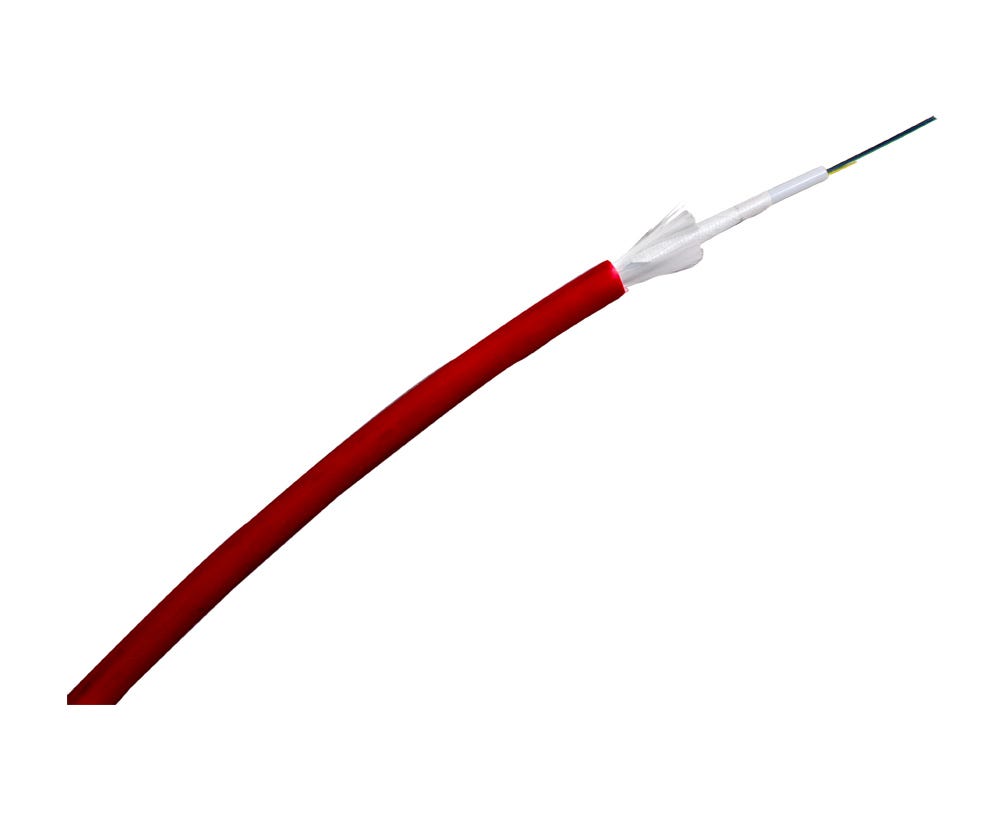

12F Fire Rated Mono Tube Cable SM

A fire resistant mono tube cable featuring heat resistant Mica tape, glass yarns and an LSZH jacket making it suitable for use in applications such as fire alarm systems, requiring up to 120 minutes of fire resistance in accordance with IEC 60331-25.

SMFR Cable Features

• Fire resistant to IEC 60331-25 @ 750-ÃœC 120 minutes

• Heat resistant Mica tape

• Red LSZH UV resistant jacket

• Aramid glass yarns provide protection and strength

• Mono tube gel filled construction

Technical Specifications

Mode: SM

# of Cores – Fibre: 12

Armoured: Yes

Sacrificial Sheath: No

Cable Jacket Material: LSZH – Low Smoke Zero Halogen

Fibre Cable Type/Construction: MT | Mono Tube

Jacket Colour: Red
