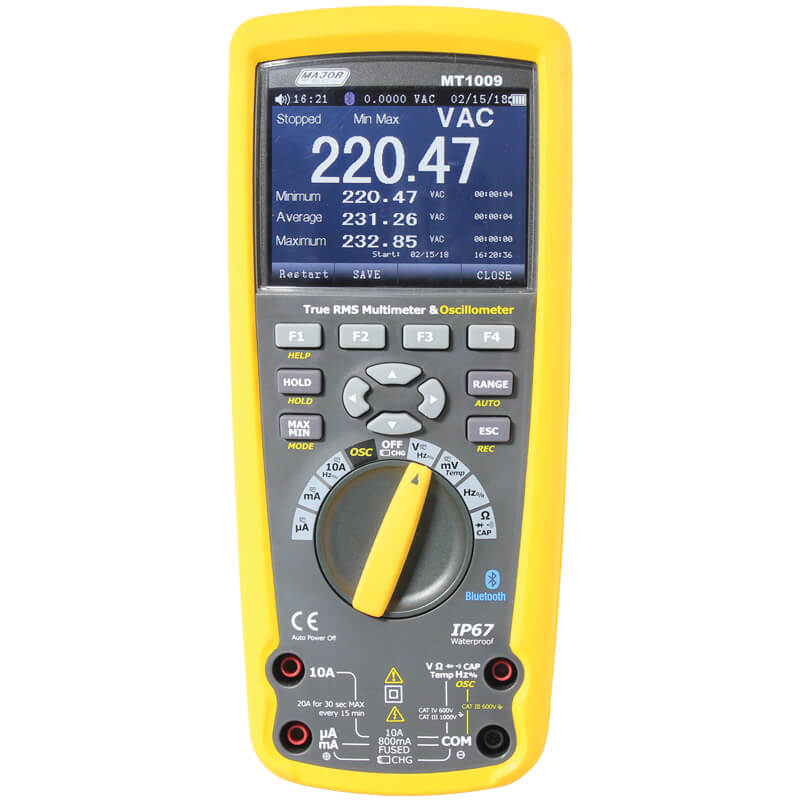

Major Tech True RMS DMM & Scope, IP67, Data Logger, Bluetooth MT1009

Description

This high accuracy True RMS multimeter has a fast sampling time, built-in data logging and Trend Capture features, plus it includes a 10MHz oscilloscope displayed on a colour screen. Using Bluetooth technology the captured data can be transferred to a computer for analysis of the datasheets. The oscilloscope function has a 10MHz bandwidth with a 50MS/s Real Time sample rate and cursors to assist the user with zoom in measurements ? all displayed on a colour TFT display! With TFT colour display, this meter enables the user to trace and identify problems on equipment, and with the data logging & Trend Capture functions, it can be utilised as a standalone unit to log events! The meter is housed in a double moulded rubber casing with an IP67 waterproof design.

CAT IV 600V and CAT III 1000V

IP67 ? Dust & Waterproof

Large 50 000 Count 320 x 240 TFT colour LCD display/ Low pass filter

10MHz / 50MS/s Bandwidth/ Real time sample rate

Logging function with Trend Capture for easy review of logged data

Bluetooth PC interface for easy data transfer & accuracy calibration

100kHz Bandwidth (voltage/current)

AC, AC+ DC, True RMS measurements

Peak capture (records transients as fast as 250?s)

Min/Max/Average with Time stamp (records signal fluctuations)

Motor winding and low ohm (500) measurement range

The Meterbox software supports bluetooth products transferring the measured data to the customers? smart phone

SPECIFICATIONS

*Function: DC Voltage Range: 50mV ? 1000V Resolution: 1mV Accuracy: ?(0.05% + 20 Digits)

*Function: AC Voltage Range: 50mV ? 1000V Resolution: 1mV Accuracy: ?(0.3% + 25 Digits)

*Function: AC + DC TRMS voltage Range: 50mV ? 1000V Resolution: 0.01?A Accuracy: ?(1.0% + 25 Digits)

*Function: AC Current Range: 500?A ? 10A Resolution: 0.01?A Accuracy: ?(0.6% + 25 Digits)

*Function: Duty Cycle Range: 0.1 to 99.90% Resolution: 1 Accuracy: ?(1.2% + 2 Digits)

*Function: Resistance Range: 50? ? 50M? Resolution: 0.001? Accuracy: ?(0.5% + 20 Digits)

*Function: Frequency Range: 50Hz- 10MHz Resolution: 0.001Hz Accuracy: ?(0.01% + 10 Digits)

*Function: Capacitance Range: 5nF ? 10mF Resolution: 0.001nF Accuracy: ?(2.0% + 40 Digits)

*Function: Temperature Range: -50 to 1000?C Resolution: 0.1?C Accuracy: ?(1.0% + 2.5 Digits)

*Function: True RMS Measurements Range: AC, AC+DC

*Function: AC Bandwidth Range: 50Hz to 100KHz

*Function: Digital Display Range: 50 000 TFT

*Function: Bargraph Range: Yes

*Function: Bluetooth Range: Bluetooth 4.0

*Function: PC Interface Range: Yes

*Function: Records Events and Trends Range: Yes

*Function: Data Logging Range: Yes

*Function: Continuity Range: Yes

*Function: Diode Test Range: Yes

*Function: Overrange Indication Range: Yes

*Function: Input Impedance Range: >10M? VDC & >9M? VAC

*Function: Low Pass Filter Range: Yes

*Function: Min Max Range: Yes

*Function: Peak Hold Range: 250?s

*Function: Enclosure Range: Double moulded waterproof IP67

*Function: Low Battery Indication Range: Yes

*Function: Power Source Range: 7.4V rechargeable

*Function: Dimensions Range: 220 x 96 x 60mm

*Function: Safety Specs Range: IEC61010-1 CAT IV 600V

Accessories:

Carrying Case

Temperature Probe

Battery Pack

Test Leads

Instruction Manual

Charger

Software

USB Cable

1 x Scope Probe
