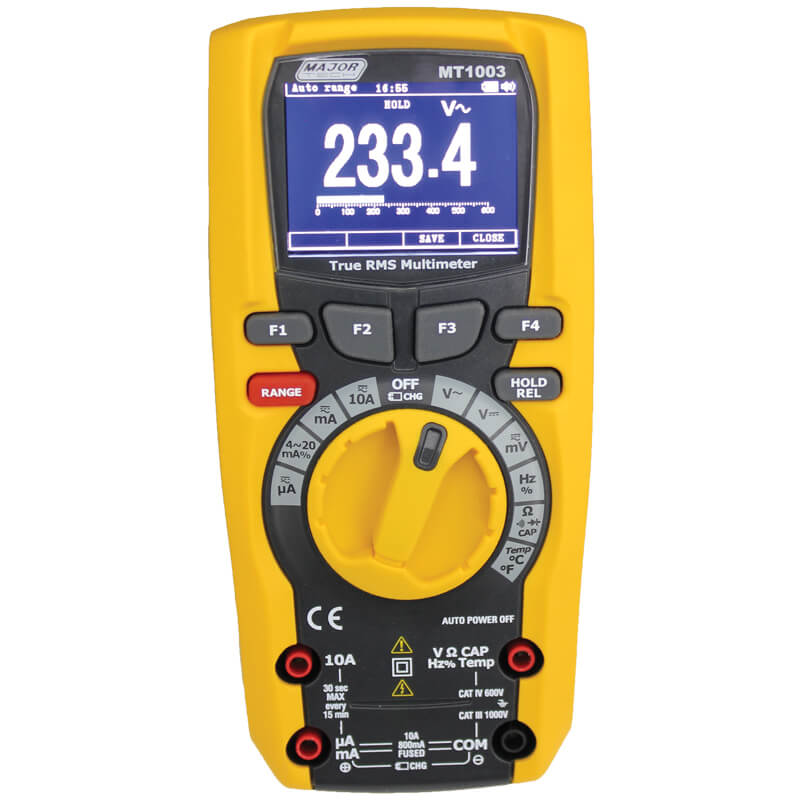

Major Tech TRMS Industrial Multimeter with TFT, CATIV, 600V MT1003

Description

The MT1003 Heavy duty True RMS Industrial Digital Multimeter with TFT color LCD display, provides fast A/D converting sampling time, high accuracy, built-in datalogging and Trend Capture features. It can trace any interruptions of the equipment and record events automatically unattended. It is easy to find and solve the problems and memorise the datasheets whilst providing safer measurements with the double moulded plastic housing design.

CAT IV 600V and CAT III 1000V

Large 6000 count 320 x 240 TFT color LCD display

Logging function with Trend Capture for easy review of logged data

Graph 100 Data review

10kHz bandwidth (voltage/current)

AC True-RMS measurements

Setup function & Saves measurements

A/D convert fast sampling time

Peak capture (records transients as fast as 500?s)

Min/Max/Average with Time stamp (records signal fluctuations)

4-20mA process loop measurements with % reading

SPECIFICATIONS

*Function: DC Voltage Range: 600mV ? 1000V Resolution: 0.1mV Accuracy: ?(0.1% + 5d)

*Function: AC Voltage Range: 600mV ? 1000V Resolution: 0.1mV Accuracy: ?(0.9% + 5d)

*Function: AC + DC TRMS Voltage Range: 6V ? 1000V Resolution: 0.1mV Accuracy: ?(3.0% + 20d)

*Function: DC Current Range: 600?A ? 10A Resolution: 0.1?A Accuracy: ?(0.9% + 5d)

*Function: AC Current Range: 600?A ? 10A Resolution: 0.1?A Accuracy: ?(1.2% + 5d)

*Function: Duty Cycle Range: 0.1 to 99.90% Resolution: 0.0001 Accuracy: ?(1.2% + 2d)

*Function: Resistance Range: 600? ? 60M? Resolution: 0.1? Accuracy: ?(0.8% + 5d)

*Function: Frequency Range: 60Hz ? 1MHz Resolution: 0.01Hz Accuracy: ?(0.09% + 5d)

*Function: Capacitance Range: 60nF ? 10mF Resolution: 0.01nF Accuracy: ?(1.5% + 8d)

*Function: Temperature Range: -40 to 1350?C Resolution: 0.1?C Accuracy: ?(1.2% + 3d)

*Function: True Rms Measurements Range: AC

*Function: Ac Bandwidth Range: 50Hz to 1000Hz

*Function: Digital Display Range: 6000 TFT

*Function: Bargraph Range: Yes

*Function: Records Events and Trends Range: Yes

*Function: Data Logging Range: Yes

*Function: Continuity Range: Yes

*Function: Diode Test Range: Yes

*Function: Overrange Indication Range: Yes

*Function: Input Impedance Range: >10M? VDC & >9M? VAC

*Function: Min Max Range: Yes

*Function: Peak Hold Range: 1ms

*Function: Enclosure Range: Double moulded

*Function: Low Battery Indication Range: Yes

*Function: Power Source Range: 7.4V rechargeable

*Function: Dimensions Range: 170 x 79 x 50mm

*Function: Safety Specs Range: IEC61010-1 CAT IV 600V

Accessories

Soft Carrying Case

Test Leads

Temperature Probe

Instruction Manual

Rechargeable Li-ion Batteries
