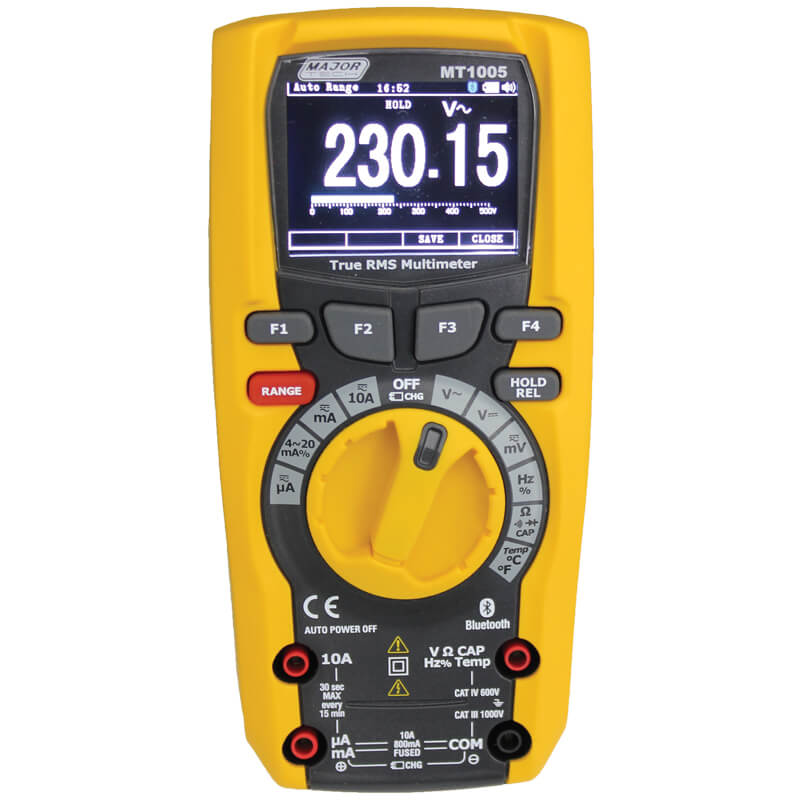

Major Tech TRMS Industrial DMM with TFT & Bluetooth, CATIV, 600V MT1005

Description

The MT1005 Heavy duty Industrial True RMS Digital Multimeter with TFT color LCD display, provides fast A/D converting sampling time, high accuracy, built-in data logging and Trend Capture features. It can trace any interruptions of the equipment and record events automatically unattended. It is easy to find and solve the problems with the Bluetooth technology and memory the datasheets whilst providing safer measurements with the double moulded plastic housing design.

CAT IV 600V and CAT III 1000V

IP67 Dust & waterproof with O-ring sealed casing

Large 50 000 count 320 x 240 TFT color LCD display

Logging function with Trend Capture for easy review of logged data

Graph 100 Data review

Bluetooth interface for easy data transfer & accuracy calibration

10kHz bandwidth (voltage/current)

AC, ACV+DCV True-RMS measurements

Records events and trends

Saves measurements

A/D convert fast sampling time

Peak capture (records transients as fast as 250?s)

Min/Max/Average with Time stamp (records signal fluctuations)

4-20mA process loop measurements with % reading

Battery capacity indication

Date indication

SPECIFICATIONS

*Function: DC Voltage Range: 500mV ? 1000V Resolution: 0.01mV Accuracy: ?(0.05% + 5 Digits)

*Function: AC Voltage Range: 500mV ? 1000V Resolution: 0.01mV Accuracy: ?(0.5% + 5 Digits)

*Function: AC + DC TRMS voltage Range: 5V ? 1000V Resolution: 0.1mV Accuracy: ?(1.2% + 20 Digits)

*Function: DC Current Range: 500?A ? 10A Resolution: 0.01?A Accuracy: ?(0.2% + 5 Digits)

*Function: AC Current Range: 500?A ? 10A Resolution: 0.01?A Accuracy: ?(0.8% + 5 Digits)

*Function: Duty Cycle Range: 0.1 to 99.90% Resolution: 1 Accuracy: ?(1.2% + 2 Digits)

*Function: Resistance Range: 500? ? 50M? Resolution: 0.01? Accuracy: ?(0.2% + 5 Digits)

*Function: Frequency Range: 50 Hz ? 10MHz Resolution: 0.001Hz Accuracy: ?(0.01% + 5 Digits)

*Function: Capacitance Range: 5nF ? 10mF Resolution: 0.001nF Accuracy: ?(1.5% + 8 Digits)

*Function: Temperature Range: -200 to 1350?C Resolution: 0.1?C Accuracy: ?(1.0%+ 3 Digits)

*Function: True RMS Measurements Range: AC

*Function: AC Bandwidth Range: 50Hz to 20KHz

*Function: Digital Display Range: 50 000 TFT

*Function: Bargraph Range: Yes

*Function: 4-20mA% Range: Yes

*Function: Bluetooth Range: Yes

*Function: Records Events And Trends Range: Yes

*Function: Data Logging Range: Yes

*Function: Continuity Range: Yes

*Function: Diode Test Range: Yes

*Function: Overrange Indication Range: Yes

*Function: Input Impedance Range: >10M? VDC & >9M? VAC

*Function: Min Max Range: Yes

*Function: Peak Hold Range: 1ms

*Function: Enclosure Range: Double moulded

*Function: Low Battery Indication Range: Yes

*Function: Power Source Range: 7.4V rechargeable

*Function: Dimensions Range: 170 x 79 x 50mm

*Function: Safety Specs Range: IEC61010-1 CAT IV 600V

Accessories:

Soft Carrying Case

Test Leads

Temperature Probe

Instruction Manual

Rechargeable Li-ion Batteries

Meterbox IMM Software
