Major Tech TRMS DMM (125V,250V,500V & 1000V) MT565

Description

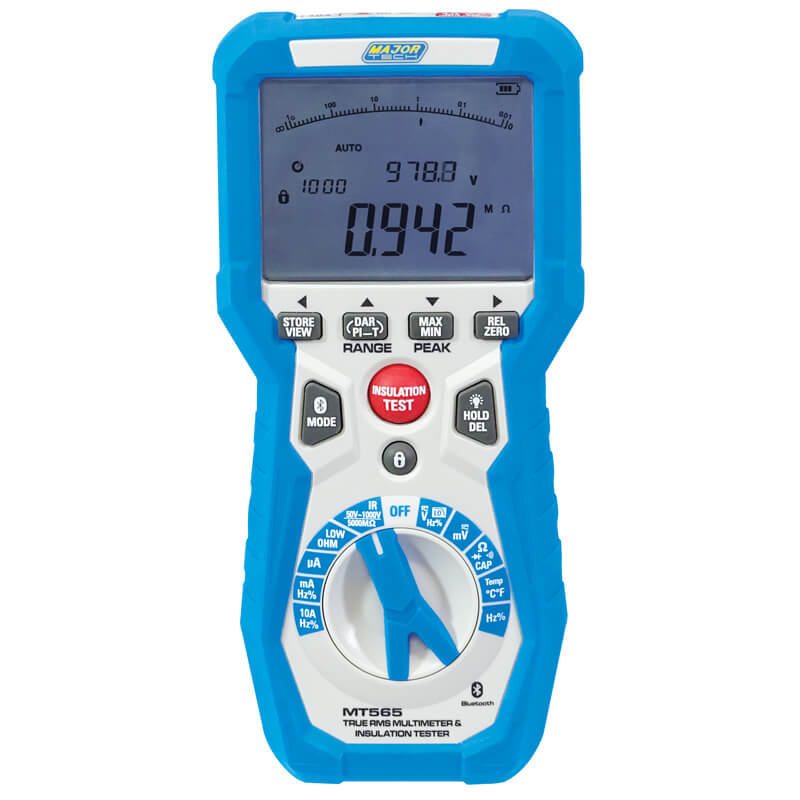

The MT565 is a combination of a True RMS multimeter and an Insulation Continuity tester. The MT565 measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle and temperature. The Low pass filter can accurately measure variable frequency drive (VFD) signals. The insulation tester offers 50V, 100V, 250V, 500V, and 1000V ranges with an insulation resistance up to 5000M?, DAR and Auto PI functions with adjustable time setting and an auto discharge. The Low Ohm function offers a resolution of 1mA and an open circuit voltage of 5V. The meter has a 50 000 count LCD dual display with an analogue bar graph, and the CAT IV 600V rating ensures the highest level of safety. The unit offers Bluetooth communication and an internal memory to store and transfer information. The Bluetooth app is available on both Android and iOS platforms. This provides maximum versatility and a wide range of features for both trouble shooting and preventative maintenance electricians.

CAT IV 600V and CAT III 1000V

IP65 double moulded rugged waterproof housing

5 insulation test ranges 50V, 100V, 250V, 500V, 1000V

Insulation Resistance up to 5G?

50 000 count with analogue bargraph backlit LCD display

Measures AC and DC voltage up to 1000V

Measures AC and DC current up to 10A

Temperature measurement from -20?C to 1000?C

Capacitance to 10mF

Frequency to 10MHz

Dielectric Absorption Ratio (DAR)

Polarization Index (PI)

Low Pass Filter for measurement of variable frequency drive (VFD)

Auto discharge of voltage test signal

Peak Hold function for Voltage and Current measurements

Download stored data to iOS or Android App via Bluetooth

Continuity buzzer

Min/Max and Data Hold function

Auto Power Off

SPECIFICATIONS

*Function: DC voltage Range: 500mV ? 1000V Resolution: 0.01mV Accuracy: ?(0.1% +4)

*Function: AC voltage Range: 500mV ? 1000V Resolution: 0.01mV Accuracy: ?(1.0% +5)

*Function: DC current Range: 500.?A ? 10A Resolution: 0.01?A Accuracy: ?(0.1% +3)

*Function: AC current Range: 500?A ? 10A Resolution: 0.01?A Accuracy: ?(1.5% +3)

*Function: Duty cycle Range: 5 to 95% Resolution: 0.0001 Accuracy: ?(1% +2)

*Function: Resistance Range: 500? ? 50M? Resolution: 0.01? Accuracy: ?(1% +4)

*Function: Frequency Range: 50Hz ? 50MHz Resolution: 0.001Hz Accuracy: ?(0.3% +2)

*Function: Capacitance Range: 500nF ? 5.000mF Resolution: 0.01nF Accuracy: ?(3.5% +9)

*Function: Temperature Range: -50 to 1200?C Resolution: 0.1?C Accuracy: ?(1.0% + 2.5?C)

*Function: Insulation 50V Range: 0.050 -2000M? Resolution: 0.001M? Accuracy: ?(5% +5)

*Function: Insulation 100V Range: 0.100 ? 5000M? Resolution: 0.001M? Accuracy: ?(5% +5)

*Function: Short circuit current Range: 1mA

*Function: Overrange indication Range: Yes

*Function: True RMS Measurements Range: AC

*Function: AC Bandwidth Range: 50Hz to 1000Hz

*Function: Digital Display Range: 50 000

*Function: Continuity Range: Yes

*Function: Polarization index Range: PI = IR10min/IR1min

*Function: Diode test Range: Yes

*Function: Bargraph Range: Yes

*Function: Bluetooth Range: Yes

*Function: Records events and Trends Range: Yes

*Function: Data logging Range: Yes

*Function: Min Max Range: Yes

*Function: Peak hold Range: >1ms

*Function: Data Hold Range: Yes

*Function: Back Light Range: Yes

*Function: Enclosure Range: Double moulded IP65

*Function: Low battery indication Range: Yes

*Function: Batteries Range: 6 x AA

*Function: Weight Range: 634g

*Function: Dimensions Range: 210 x 97 x 68 mm

*Function: Safety Specs Range: IEC61010-1 CAT IV 600V

Accessories:

Test Leads

Remote Test Leads

Black Croc Lead

Hard Carrying Case

6 x AA Batteries

Instruction Manual
