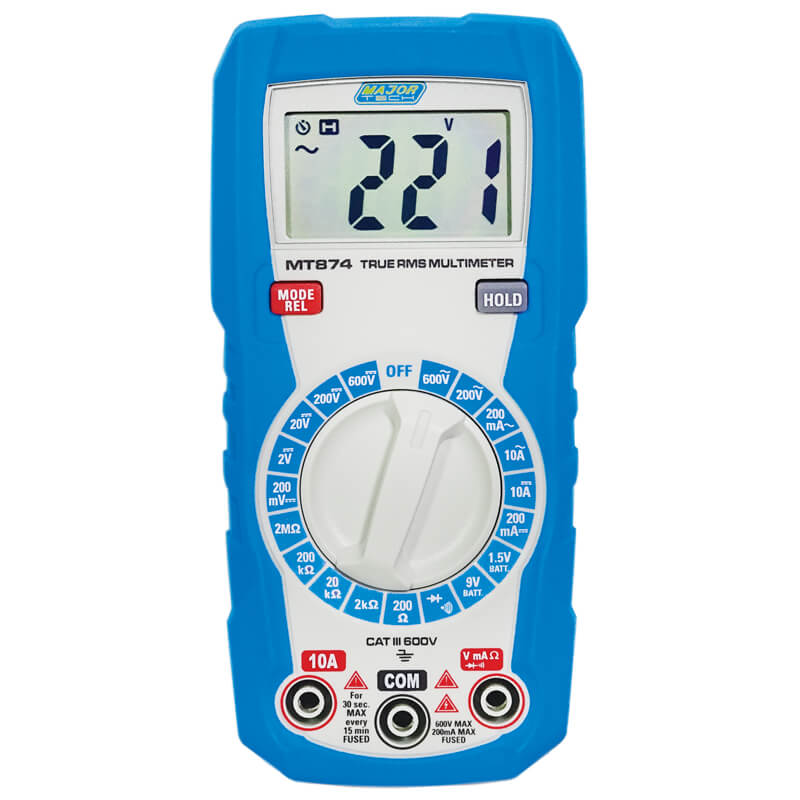

Major Tech Trms Compact DMM c/w Bat Test MT874

Description

The MT874 is a durable and attractive compact True RMS multimeter with a high contrast LCD display with detailed display icons. Equipped with 7 measuring functions and 20 ranges, each test position is quickly and easily selected with a simple turn of the selector switch. The meter has a double moulded rubber housing and has IEC 61010-1 CAT III 600V safety rating. The sturdy structure is designed to withstand the rugged environment of a work site and has been drop tested up to 2 meters. The meter has a built-in tilt stand for hands free convenience as well as low battery indication and auto power off. This meter is ideally suited for everyday use by electricians, electronic technicians, the air conditioning industry and DIY users.

CAT III 600V and CAT II 1000V

Large 2000 count LCD display

Measures AC and DC voltage up to 600V

Measures AC and DC current up to 10A

Battery test for 1.5V and 9V batteries

Continuity Buzzer & Diode Test

Data Hold Function

Relative Mode

Auto Power Off

Built-in Tilt Stand

SPECIFICATIONS

*Function: DC Voltage Range: 200mV ? 600V Resolution: 1V Accuracy: ?(0.5% + 5 Digits)

*Function: AC Voltage Range: 200V ? 600V Resolution: 1V Accuracy: ?(1.2% + 10 Digits)

*Function: DC Current Range: 200mA ? 10A Resolution: 0.01A Accuracy: ?(2.0% + 5 Digits)

*Function: AC Current Range: 200mA ? 10A Resolution: 0.01A Accuracy: ?(2.0% + 5 Digits)

*Function: Resistance Range: 200? ? 2M? Resolution: 0.001M? Accuracy: ?(0.8% + 5 Digits)

*Function: True RMS Measurements Range: Yes

*Function: AC Bandwidth Range: 50Hz to 1kHz

*Function: Digital Display Range: 2000

*Function: Continuity Range: Yes

*Function: Diode Test Range: Yes

*Function: Battery Test Range: 9V and 1.5V

*Function: Data Hold Range: Yes

*Function: Enclosure Range: Double moulded rubber housing

*Function: Low Battery Indication Range: Yes

*Function: Batteries Range: 2 x AAA

*Function: Weight Range: 221g

*Function: Dimensions Range: 154 x 74 x 43mm

*Function: Safety Specs Range: IEC61010-D3:D831 CAT III 600V

Accessories

Test Leads

2 x AAA Batteries

Instruction Manual
