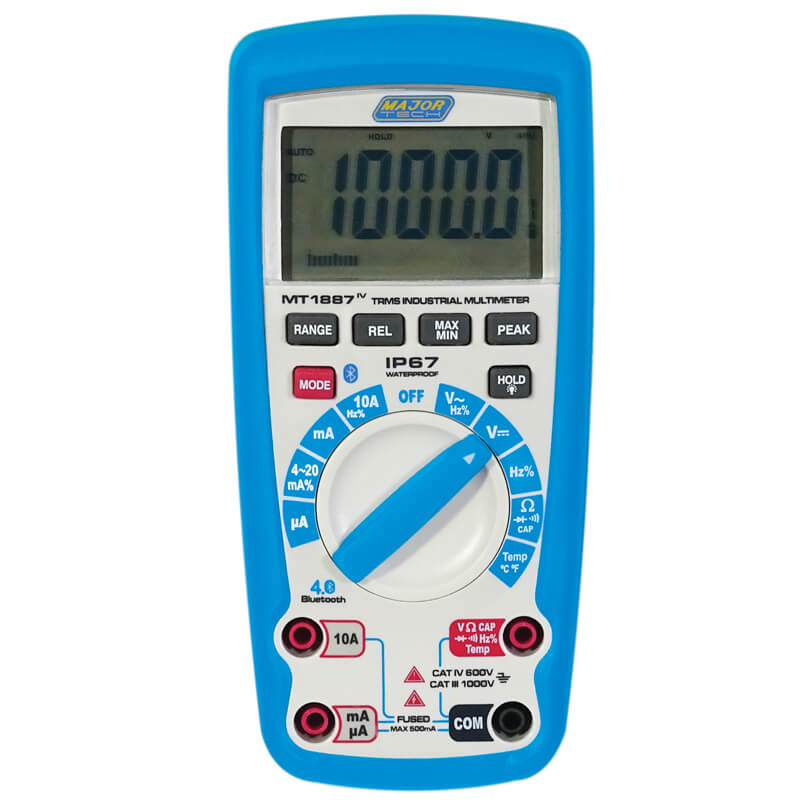

Major Tech TRMS Auto DMM, CATIV 600V, IP67 MT1887

Description

The MT1887 is a True RMS professional multimeter having improved measurement functions, troubleshooting feature, resolution and accuracy to solve problems on power distribution, motor drives, electromechanical equipment and plant automation with the 4-20mA% loop measurements. The meter has a large 40 000 count backlit LCD with the added advantage of a 41 segment analogue bargraph. NCV function, automatic Non-Contact voltage detection, the LCD backlight will be in red when AC voltage above 110V is sensed. Specially designed for the Solar Industry the DC voltage range measures up to 1500V DC, other measuring ranges include ACV to 1000V, Micro Amps and Amps, Frequency, Resistance, Duty Cycle, capacitance and temperature measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organising and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.

CAT IV 600V and CAT III 1000V

IP67 Dust & waterproof with O-ring sealed casing

40 000 count LCD display with 41 Segment Bargraph

Measures DC voltage up to 1500V

Measures AC voltage up to 1000V

Temperature measurement from -50?C to 1000?C

AC & DC Micro Amps up to 10A

4-20mA process loop measurements with % reading

Capacitance to 40mF

Frequency to 100MHz

Duty Cycle

Relative mode

Automatic non-contact voltage detector above 110V AC, LCD turns red

Min, Max and Data Hold

Auto Power Off

SPECIFICATIONS

*Function: DC Voltage Range: 400mV ? 1500V Resolution: 1V Accuracy: ?(0.1% + 6 Digits)

*Function: AC Voltage Range: 4V ? 1000V Resolution: 0.1V Accuracy: ?(1.0% + 8 Digits)

*Function: DC Current Range: 400uA ? 10A Resolution: 0.001A Accuracy: ?(1.0% + 3 Digits)

*Function: AC Current Range: 400uA ? 10A Resolution: 0.01A Accuracy: ?(1.5% + 8 Digits)

*Function: Resistance Range: 400? ? 40M? Resolution: 0.01M? Accuracy: ?(0.5% + 8 Digits)

*Function: Capacitance Range: 40nF ? 40mF Resolution: 0.01mF Accuracy: ?(2.5% + 10 Digits)

*Function: Temperature Range: -50?C ? 1000?C Resolution: 1?C Accuracy: ?(1.0% + 2.5?C Digits)

*Function: 4-20mA% Range: 25 to 15% Resolution: 0.0001 Accuracy: ?50 digits

*Function: Frequency (Electronic) Range: 40Hz ? 100MHz Resolution: 0.01MHz Accuracy: ?(0.1% + 1 Digits)

*Function: Frequency (Electrical) Range: 40 ~ 400Hz Resolution: 0.01Hz Accuracy: ?(0.5% reading)

*Function: Duty Cycle Range: 5% ? 95% Resolution: 0.0001 Accuracy: ?(1.2% + 2 Digits)

*Function: AC Response Range: True RMS

*Function: Digital Display Range: 40 000 Count

*Function: Bargraph Range: 41 Segmented

*Function: Continuity Test Range: Audible signal if the resistance is approx. 50? or less

*Function: Diode Test Range: Test current 0.9mA typical, open circuit voltage 3.2V DC typical

*Function: Peak Range: >1ms

*Function: Non-Contact Voltage Range: Detection above 110V AC, LCD display turns red

*Function: Bluetooth Range: Bluetooth 4.0 Technology

*Function: Data Hold Range: Yes

*Function: Back Light Range: Yes

*Function: Enclosure Range: IP67 Dust & Waterproof Double Moulded

*Function: Battery Range: 9V

*Function: Dimensions Range: 187 x 81 x 50mm

*Function: Weight Range: 342g

Accessories:

Type-K Temperature Probe

Type-K Adaptor

Test Leads

9V Battery

Instruction Manual
