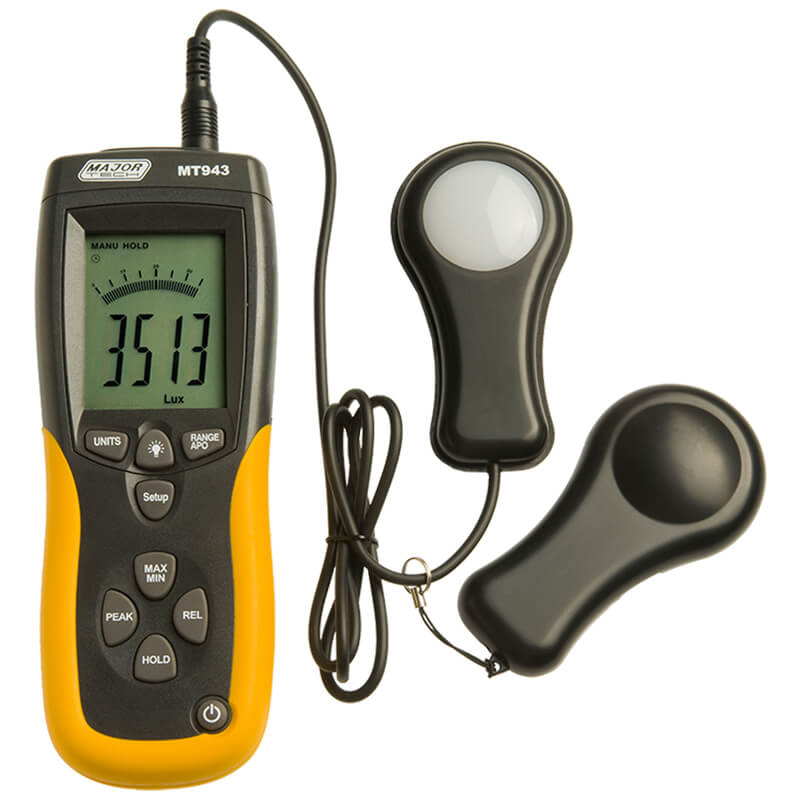

Major Tech Professional Light Meter, 0.1 Lux to 400,000 Lux MT943

Description

The MT943 is a professional light meter providing quick light readings in Foot Candles or Lux up to 400,000 Lux. The meter has special relative efficiency and has a correction factor for non-standard light sources, thus eliminating the need for manual calculations. The Peak Hold function captures the readings within 10 micro seconds and displays either the minimum peak or maximum peak. The MT943 has data logging capabilities and can link up to a computer whereby the information is downloaded via the USB interface, software and USB cable is included. Other features include the Min and Max record, a large LCD display with a quick bargraph and backlight.

Professional light meter providing quick light readings in Lux

4000 Count LCD display with 41 segment bargraph

Measures to 400 000 Lux

4 Measuring ranges

Peak Hold

Relative mode

Min / Max

Data Hold

Short rise and fall time

Data logging up to 99 Readings

USB Interface

SPECIFICATIONS

*Function: Range Range: 400.0 to 400 000 Lux Resolution: 0.1?C Accuracy: ?(3% ? 0.5% f.s)

*Function: Spectral Response Range: CIE Photopic (human eye response curve) Resolution: Accuracy: CIE V? function f1?? 6%

*Function: Photo Detector Range: One silicon photo diode and spectral response filter

*Function: Overrange Indication Range: Yes

*Function: Software Range: Yes

*Function: Sample Rate Range: 1.3 times/sec

*Function: Relative Mode Range: Yes

*Function: Pc Interface Range: USB

*Function: Peak Hold Range: Yes

*Function: Data Hold Range: Yes

*Function: Back Light Range: Yes

*Function: Enclosure Range: Over Moulded casing

*Function: Low Battery Indication Range: Yes

*Function: Battery Range: 9V

*Function: Weight Range: 390g

*Function: Dimensions Range: Meter: 170 x 80 x 40mm, Photo detector: 115 x 60 x 20mm

Accessories

9V Battery

Test Leads

Instruction Manual

Software

Build in USB cable
