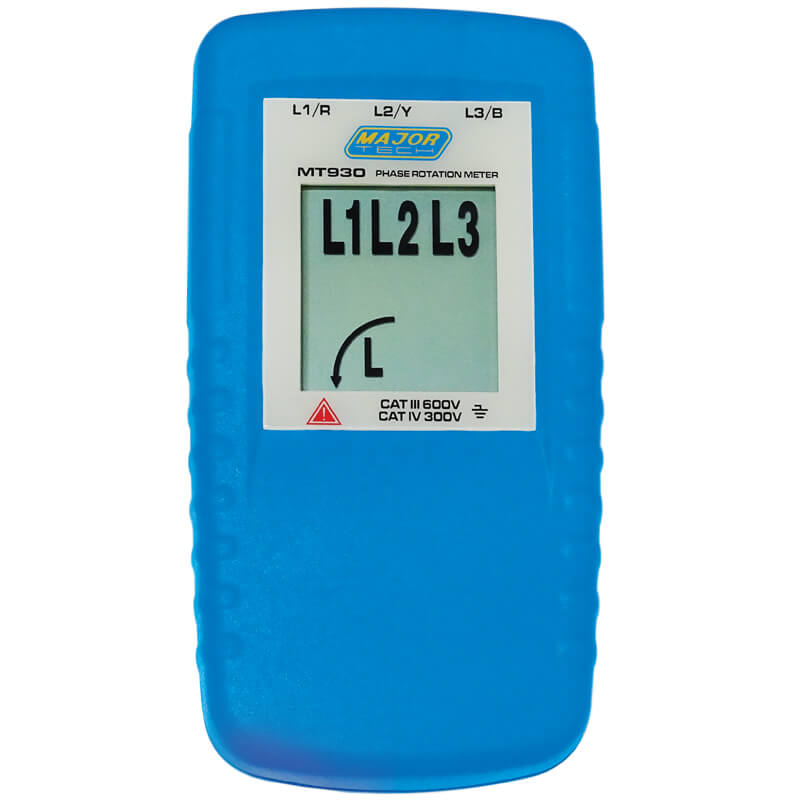

Major Tech Phase Rotation Meter MT930

Description

The MT930 is a compact handheld Phase Rotation indicator that has a large LCD to indicate the phase presence and rotation. Once connected to a 3 Phase power system, the meter indicates the phase sequence by displaying its corresponding phase symbol on the LCD, as well as the rotation by arrows indicating a clockwise or anti-clockwise direction. The MT930 operates from 40VAC to 690VAC.

CAT IV 300V and CAT III 600V

Large LCD Display

Phase rotation indication

3-Phase Indication

Checks phase sequence and open phase simultaneously

Double injection rubber housing

Small lightweight and portable

Can check a wide range of 3-phase power source from 40V to 690V AC

Large size crocodile clips

SPECIFICATIONS

*Function: AC Voltage Range: 40 ? 690V

*Function: Clamp Diameter Range Range: 20mm

*Function: Detection Method Range: LCD Display

*Function: Measuring Frequency Range: 15 ? 400Hz

*Function: Phase Rotation Range: Clock or Anti clock

*Function: Visual Indication Range: LCD Indication

*Function: Colours Range: Red, Yellow Blue

*Function: Casing Range: Over Moulded case

*Function: Weight Range: 130g

*Function: Dimensions Range: 130 x 69 x 32mm

*Function: Safety Specs Range: IEC61010-1 CAT III 600V

Accessories

Set of large sized croc clips

9V battery

Instruction manual
