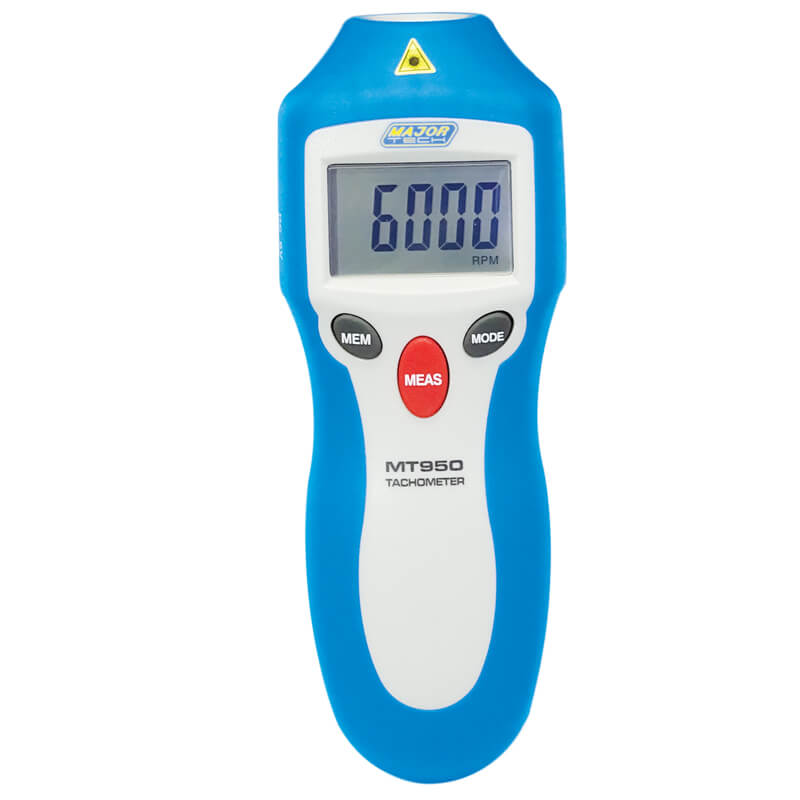

Major Tech Non Contact Tachometer MT950

Description

The MT950 provides fast and accurate non-contact revolutionary measurements for rotating objects. Using reflective tape on an object to be measured, simply point the laser at the object, the tachometer RPM will then measure up to a maximum of 100,000 revolutions with an accuracy of ?0.05% and a fast sampling time of 0.5 seconds. The MT950 has a built-in memory that recalls the Min/Max and last value stored. The meter can also be used as a Total TOT counter where the meter can be set up to count passing objects. The MT950 is lightweight and easy to operate.

Fast and accurate non-contact RPM and TOT measurements of rotating objects

RPM Non-contact range: 2 ? 100 000RPM

TOT count mode range: 1 ? 100 000RPM

Detecting distance: 50 ? 500mm

5 Digit backlit LCD

Auto Range

Data Hold

40 Reading memories

Min / Max

Resolution 0.1RPM

Built-in laser spot

SPECIFICATIONS

*Function: Non-Contact Test Range Range: 2 ? 100 000 RPM Resolution: 0.1RPM Accuracy: ? (0.05% + 1 Digit)

*Function: Count Range Range: 1 ? 99 999 REV

*Function: Sampling Time Range: 0.5s (over 120RPM)

*Function: Detection Distance Range: 50mm ? 500mm

*Function: Time Base Range: Quartz crystal

*Function: Digital Display Range: 5 Digit LCD

*Function: Overrange Indication Range: Yes

*Function: Min Max Range: Yes

*Function: Data Hold Range: Yes

*Function: Back Light Range: Yes

*Function: Enclosure Range: Over mould

*Function: Low Battery Indication Range: Yes

*Function: Batteries Range: 9V

*Function: Weight Range: 160g

*Function: Dimensions Range: 160 x 60 x 42mm

Accessories

Carrying Case

3x MT905 ? Reflective Tape

9V Battery

Instruction Manual
