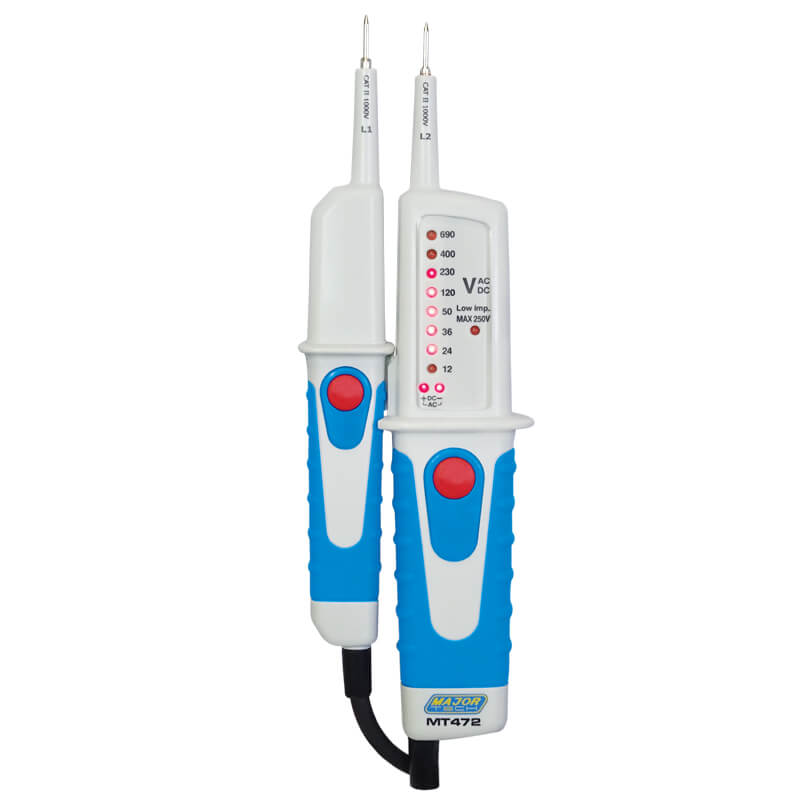

Major Tech LED Voltage Tester ACV, DCV CAT IV 600V MT472

Description

The MT472 is IP64 and is a basic voltage tester designed to meet electrician?s requirements for the measurement of AC and DC voltage and continuity. The tester displays the voltage on red LED?s which increment as the voltage increases. There is an LED indication for polarity when DCV is measured. No switching of the meter on as the tester automatically turns on when voltage is applied to the two test probes. The MT472 incorporates a Low Impedance Test, which induces a basic load of approximately 6k? at 690 volts, and continuity measurements up to 200k?. The MT472 meets the CAT IV 600V and CAT III 1000V safety standards.

CAT IV 600V and CAT III 1000V

IP64 waterproof housing

AC & DC Voltage detection from 12V to 690V AC and DC

LED Indication

Low Impedance test

Built-in Flashlight

Polarity Detection

Voltage function operates without battery

Continuity test to 200k?

SPECIFICATIONS

*Function: DC Voltage Range: 12 ? 690V Accuracy: ?(30%)

*Function: AC Voltage Range: 12 ? 690V Accuracy: ?(30%)

*Function: RCD Test Range: 10mA and 30mA

*Function: Continuity Range: Yes

*Function: AC Bandwidth Range: 50Hz ? 60Hz

*Function: Digital Display Range: LED Indication

*Function: Polarity Indication Range: Yes

*Function: Low Input Impedance Range: ?6k?

*Function: Flashlight Range: Yes

*Function: Enclosure Range: Double injection IP64

*Function: Weight Range: 237g

*Function: Dimensions Range: 240 x 78 x 40mm

*Function: Safety Specs Range: IEC61010-1 CAT IV 600V

Accessories:

Test probe covers for CAT IV 600V

Instruction Manual
