Major Tech IR Thermometer, 20:1 ratio (-50?C to 550?C) MT694

Description

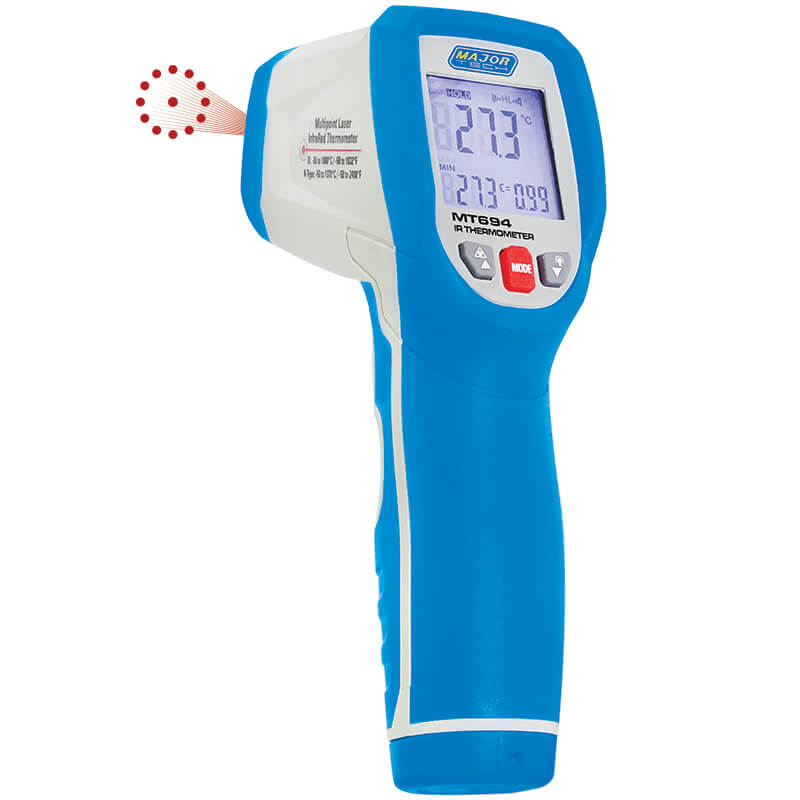

The MT694 is a small and compact pistol grip type infrared thermometer which can provide fast and accurate readings for most surface temperature measurements due to its sampling rate of 150 milliseconds. The distance to spot ratio is 20:1 and the temperature range is from -50?C to 1000?C. This meter features a multipoint laser which increases the target accuracy when the unit is at the optimum distance from the object being measured. Special features include adjustable emissivity from 0.10 to 1.0, external Type-K temperature measurements, response time 150mS, max hold, large backlit LCD display, High and Low alarm and a trigger lock for continuous use.

Spot Ratio 20:1

Temperature -50?C to 1000?C

Response time 150ms

Adjustable emissivity from 0.10 to 1.0

Circular laser sighting

Selectable ?C or ?F

Automatic Data Hold

MIN, MAX, AVG and DIF temperature displays

Set High and Low alarms

Type-K input

Automatic selection range and Display Resolution

Backlit LCD display

2 meter drop tested

IP54 rated for dust and water resistance

Auto Power Off

SPECIFICATIONS

*Function: Infrared Temperature Range Range: -50?C ? 1000?C Resolution: 0.1?C Accuracy: ?(1% ? 1?C)

*Function: Type-K Temperature Range Range: -50?C ? 1350?C Resolution: 0.1?C Accuracy: ?(0.5% ? 1.5?C)

*Function: Spectral Response Range: 8 to 14um

*Function: Display Range: LCD Display

*Function: Spot Ration Range: 20:1

*Function: Adjustable Emissivity Range: 0.10 ? 1.0

*Function: Laser Targeting Range: Multi Point

*Function: Min/Max/Diff/Ave Range: Yes

*Function: Hi/Low Alarm Range: Yes

*Function: Back Light Range: Yes

*Function: Enclosure Range: Moulded IP54

*Function: Low Battery Indication Range: Yes

*Function: Batteries Range: 2 x AAA

*Function: Weight Range: 248g

*Function: Dimensions Range: 170 x 50 x 90mm

Accessories

Type-K Temperature Probe

Carrying Case

2 x AAA Batteries

Instruction Manual
