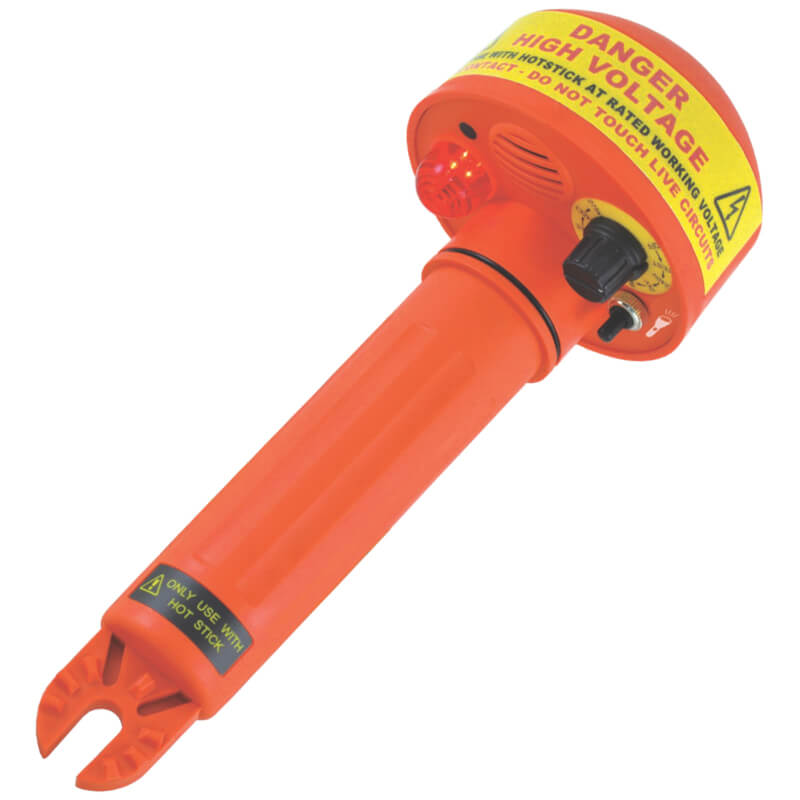

Major Tech HV Non-Contact Detector MT275

Description

The MT275 is a high voltage proximity detector that has 10 voltage settings from 240V AC to 500kV AC. The MT275 provides a wide 120? angle for non-contact detection with an internal pickup sensor plate that senses the radiated field which surrounds live conductors, the field strength increases with voltage and decreases quickly with distance or earthing shields. When testing for high kilo voltages the MT275 can be used in conjunction with long insulating link sticks or hot sticks. There is a built-in self-test range to verify the detector is in working order.

10 voltage settings from 240V to 500kV

Bright LED visual indication and Audible indication

AC voltage detection from 240V to 500kV

Wide 120? angle for voltage detection

Non-contact detection by proximity

IP65 waterproof housing

Easy-to-prove method

Compatible with most hot sticks

Suitable for indoor and outdoor use

High impact nylon casing

Built-in Flashlight

Self-test function

Comply with EN 61326-1, CISPR 11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8

Specifications:

*Function: Power On Indicator Range: Self-test selection

*Function: Flashlight Range: Yes

*Function: Non-Contact Voltage (NCV) Range: Yes

*Function: AC Voltage Range: 240V, 3.3KV, 11kV, 22kV, 33kV, 66kV, 110kV, 220kV, 330kV, 500kV

*Function: Frequency Range: 40-70Hz

*Function: Voltage Detector Visual Range: Hi bright red LED

*Function: Voltage Detector Audible Range: High noise level buzzer

*Function: Enclosure Range: Moulded IP65

*Function: Batteries Range: 3 x C

*Function: Weight Range: 531g

*Function: Dimensions Range: 255 x 96mm

*Function: Safety Specs Range: EN61326-1 CISPR 11, EN61000-4-2, EN61000-4-3, EN61000-4-8

Accessories:

Carrying Case

3 x C Batteries

Instruction Manual
