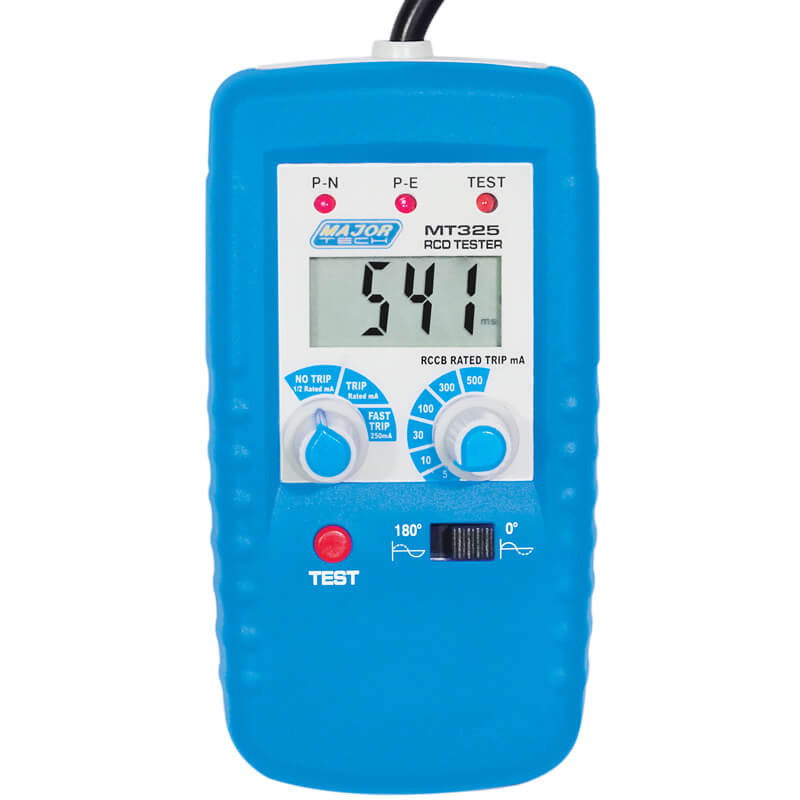

Major Tech Digital RCD/ELCB Tester 220V MT325

Description

The compact MT325 is lightweight and easy to use and operates on 230V AC circuits while offering high accuracy measurement and good performance. Features include pre-programmed tripping current ranges for speed of use, with direct readout of disconnection time with a resolution of 1ms, neon indication of correct wiring status. Consistent results are obtained with the 0? and 180? phase angle select switch, thus eliminating the need for repeat tests.

CAT IV 300V and CAT III 600V

Double injection housing

Correct wiring indication

2000ms Direct readout of disconnection time

Fully programmed test current settings

Accurate readout of tripping time with a resolution of 1ms

Two LED lamps give quick check for correct wiring

Compact, lightweight and simple to use

0? or 180? Phase angle selection

Current setting from 5mA to 500mA

Operating voltage 230V AC

Data Hold function to freeze the digital trip time on the LCD

SPECIFICATIONS

*Function: Voltage Measurement Range: 220VAC to 240VAC Accuracy: ? (3%)

*Function: Frequency Response Range: 50/60Hz

*Function: Test Current Range: 5, 10, 30,100,300,500mA

*Function: Measuring Range Range: 2000ms Accuracy: ? (5%)

*Function: Range:

*Function: Function Range: Range

*Function: Phase Angle Selection Range: 0? or 180?

*Function: Socket Polarity Range: Yes

*Function: Enclosure Range: Double Injection moulding

*Function: Display Range: LCD

*Function: Weight Range: 185g

*Function: Dimensions Range: 128 x 68 x 30mm

*Function: Safety Specs Range: IEC61010-1 CAT III 600V

Accessories:

Instruction Manual
