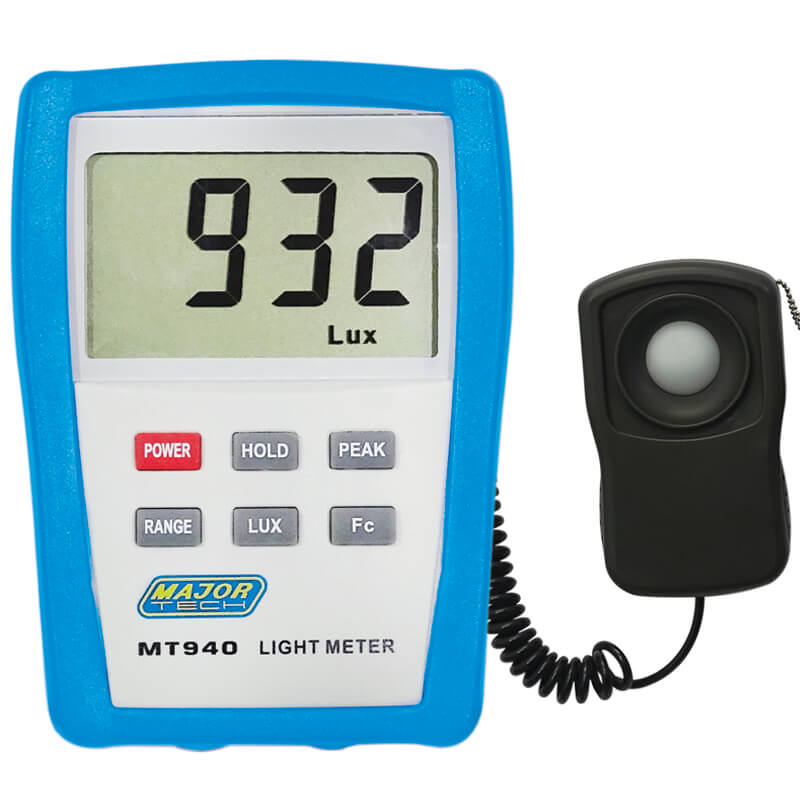

Major Tech Digital Light Meter, 0.1 Lux to 200,000 Lux MT940

Description

The MT940 is a handheld light meter that provides accurate display of light levels in terms of Foot Candle (FC) or LUX over a wide range. This versatile meter offers Peak Hold and Data Hold functions and can measure light up to 20,000 Lux or FC with an accuracy of 0.01Lux/FC. The light sensor is connected through an extension cable to the meter, providing fast measurements in multiple environments. The readings are displayed on a large and clear LCD display with range annunciations to assist the user. This is an essential tool for Designers or Quality Assurance Managers to troubleshoot or check lighting levels in a variety of situations from office to factory areas where health and safety is a requirement.

Check light levels in a wide variety of situations

Accurate test with fast response and auto zero adjustment

4 measuring ranges for Lux and Foot Candle

Lux range from 200 Lux to 200,000 Lux

Foot Candle range from 20fc to 20,000fc

Measurement rate 2 times per second

Peak Hold and Data Hold functions

Symbol and unit display ? easy to read

Overrange indication

Auto Power Off

SPECIFICATIONS

*Function: Range Range: 200 to 200 000 Lux, 20 to 20 000FC Resolution: 0.1 Lux Accuracy: <10 000 Lux/1000 FC ?(3% +0.5%)/>10 000 Lux/1000 FC ?(5% + 10 Digits)

*Function: Photo Detector Range: Photo diode with filter

*Function: Overrange Indication Range: Yes

*Function: Sample Rate Range: 2 times/sec

*Function: Peak Hold Range: Yes

*Function: Data Hold Range: Yes

*Function: Enclosure Range: Moulded casing with holster

*Function: Low Battery Indication Range: Yes

*Function: Battery Range: 9V

*Function: Weight Range: 300g

*Function: Dimensions Range: Meter: 130 x 95 x 30mm, Photo detector: 100 x 60 x 27mm

Accessories

Carrying Case

9V Battery

Instruction Manual
