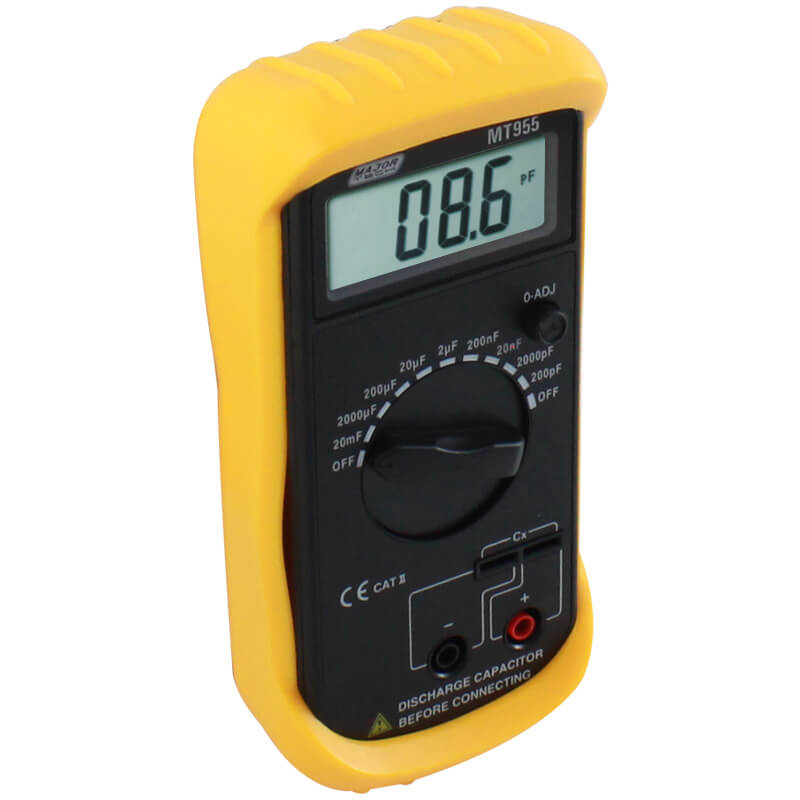

Major Tech Digital Capacitance Meter, 0.1pF to 20mF MT955

Description

This compact and lightweight MT955 capacitance meter offers a wide measuring range for all capacitors from 0,1pF to 20 000?F. The meter has built-in inputs whereby the capacitors can be inserted directly into the instrument, and for cases where this is not possible due to large capacitors, test leads are supplied.

Capacitance to 20mF

0.1pF Resolution

Automatic polarity indication

Zero adjustment for low capacitance range

Easy-to-read 2000 count LCD display

Low battery indication

SPECIFICATIONS

*Function: Capacitance Range: 200pF to 20mF Resolution: 10pF Accuracy: ?(0.5% +1 +0.5pF)

*Function: Overrange Indication Range: Yes

*Function: ?O? Adj. Range: Yes

*Function: Digital Display Range: 2000 count LCD

*Function: Enclosure Range: Rubber holster

*Function: Low Battery Indication Range: Yes

*Function: Battery Range: 9V

*Function: Weight Range: 190g

*Function: Dimensions Range: 145 x 69 x 38mm

Accessories

9V Battery

HDT1282 Test Leads

Instruction manual
