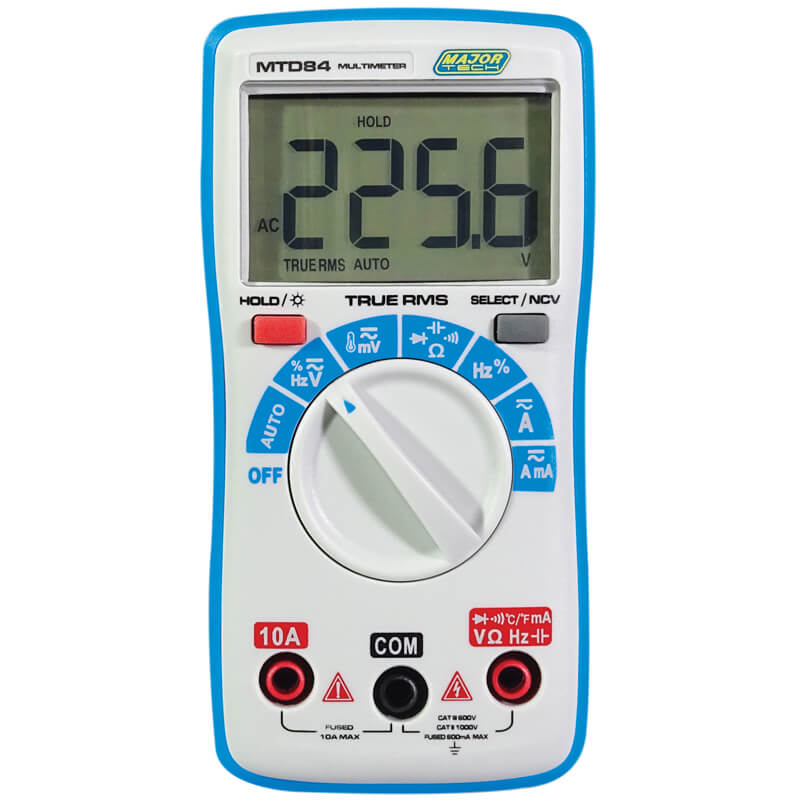

Major Tech Compact TRMS DMM Smart Mod Temp Cap 6000 Count MTD84

Description

The MTD84 is a compact True RMS auto ranging multimeter with a 6000 count LCD backlit display. The Smart mode, ?AUTO?, is a function that automatically identifies DC voltage, AC voltage, Resistance and continuity and automatically displays the measurements. There is a built-in Non-Contact voltage detector, by pressing the NCV button continuously the LCD displays ?EF? and will display ??-? when voltage is detected and the buzzer sounds. This meter meets the International Standard IEC 61010-1 CAT III 600V, and is ideally suited for everyday use by electricians, electronic technicians, students and DIY users The meter has a built-in tilt stand for hands free convenience as well as low battery indication and auto power off.

CAT III 600V and CAT II 1000V

6000 count with backlit LCD display

Smart Mode automatically identifies DCV, ACV, Resistance and continuity

Measures DC voltage up to 1000V and AC voltage to 750V

Temperature measurement from -20?C to 1000?C

Capacitance to 10mF

Frequency to 10MHz

Duty Cycle

REL mode and Data Hold

Auto Power Off

NCV ? Non-Contact Voltage Detector

Tilt stand

SPECIFICATIONS

*Function: DC Voltage Range: 60.00mV ? 1000V

*Function: AC Voltage Range: 60.00mV ? 750V

*Function: DC Current Range: 60.00mA ? 10.00A

*Function: AC Current Range: 60.00mA ? 10.00A

*Function: Duty Cycle Range: 1% ? 99%

*Function: Resistance Range: 600.0? ? 60.00M?

*Function: Frequency Range: 99.99Hz ? 10MHz

*Function: Capacitance Range: 9.999nF ? 9.999mF

*Function: True RMS Measurements Range: Yes

*Function: Continuity Range: Yes

*Function: Built-in Buzzer Range: Yes

*Function: Diode Test Range: Yes

*Function: Ac Bandwidth Range: 50Hz to 400Hz

*Function: Digital Display Range: LCD 6000 count

*Function: Overrange Indication Range: Yes

*Function: Data Hold Range: Yes

*Function: Back Light Range: Yes

*Function: Back Light Range: Yes

*Function: Enclosure Range: ABS/PVC

*Function: Batteries Range: 2 x AAA

*Function: Weight Range: 138g

*Function: Dimensions Range: 130 x 65 x 32mm

*Function: Safety Specs Range: CAT III 600V

Accessories

Test Leads

Type-K Temperature Probe

Carrying Case

2 x AAA Batteries

Instruction Manual
