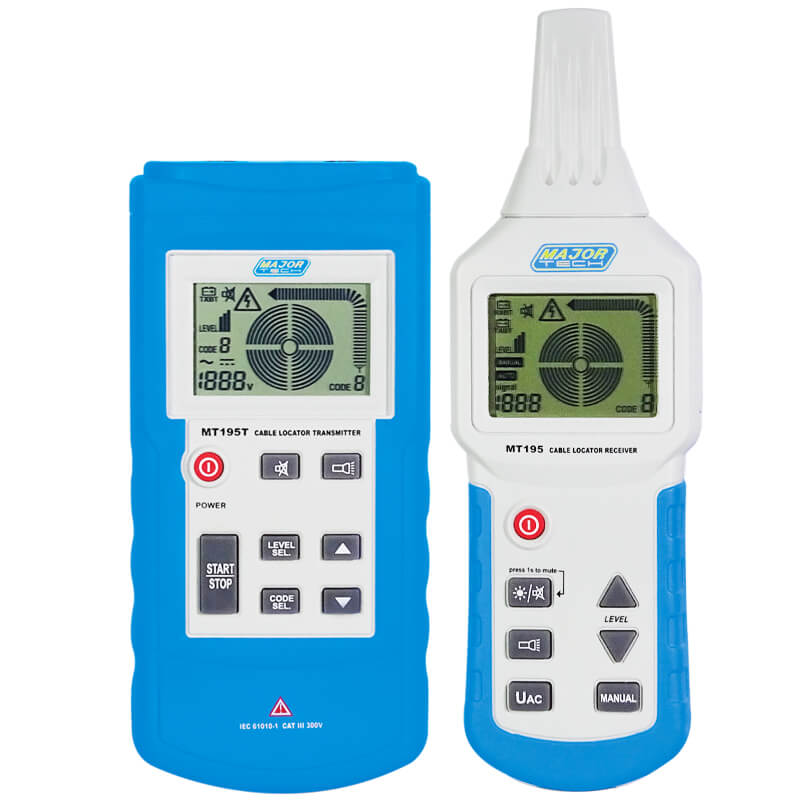

Major Tech Cable Locator Incl Hard Carrying Case MT195

Description

The MT195 Cable Locator is the ideal tool to detect electrical power cables, communication cables, metal pipes and much more during construction, maintenance, or renovation. Pinpoint pipes and cables in walls or underground with precision by identifying the corresponding signal number sent by the transmitter. The transmitter and receiver with their advanced digital circuit technologies ensures a highly stable and reliable performance. The transmitter not only sends signals but can be used as an AC/DC voltmeter displaying the voltage on the tested line. When testing on electrical circuits, the receiver can quickly identity circuit breakers in the distribution board of the circuit the transmitter is connected to or visa versa. The receiver displays the value of the signal measured and it can be used to check short circuits or breaks on existing installations, ideal for underfloor heating systems. The MT195 set is lightweight and is supplied with a complete set of accessories for direct measurement.

CAT III 300V and CAT II 600V

Detects cables, electrical wire, water/gas supply pipelines concealed in walls and ground

Detects interruptions and short circuits in cables and concealed electrical wire

Tracing sockets and distribution sockets having accidentally been covered by plastering

The transmitter measures voltage from 12V to 400V AC/DC

The screen of transmitter displays preset transmitting power, transmitted codes and voltage

Transmitter has self-inspection displaying status on LCD

Both transmitter and receiver have flashlight function

Output signal 125kHz

Detects interruptions and short circuits in floor heating

The LCD of receiver displays preset transmitting power, transmitted codes and voltage

The sensitivity of the receiver can be adjusted manually or automatically

The receiver can sweep frequency automatically

Identifies fuses and assigned current circuits

Mute mode can be set for both the transmitter and receiver

Auto Power Off

Additional transmitters are available to extend or verify several functions

SPECIFICATIONS

* Transmitter functions

*Function: Output Signal Range: 125kHz

*Function: External Voltage Range Range: DC 12-400V Resolution: ?2.0%

*Function: External Voltage Range Range: AC12-400V (50/60Hz) Resolution: ?2.5%

*Function: Display Range: LCD, with function display and column chart

*Function: External Voltage Dielectric Strength Range: Max. 400V AC/DC

*Function: Batteries Range: 9V

*Function: Weight Range: 420g

*Function: Dimensions Range: 190 x 89 x 43mm

*Receiver functions

*Function: Depth of Tracking Range: Depth depends on the material specific applications

*Function: Cable Locating Mode Single Pole Range: About 0 ? 2meters

*Function: Cable Locating Mode Dual Pole Range: About 0 ? 0.5meters

*Function: Cable Locating Single Loop Line Range: Up to 2.5meters

*Function: Display Range: LCD, with function display and column chart

*Function: Batteries Range: 6 x AAA

*Function: Weight Range: 350g

*Function: Dimensions Range: 242 x 78 x 39mm

*Function: Safety Specs Range: CAT III 300V

Accessories:

Carrying Case & Shoulder Strap

Test Leads

Test Probe

Croc Clips

Grounding Rod

Batteries

Instruction Manual
