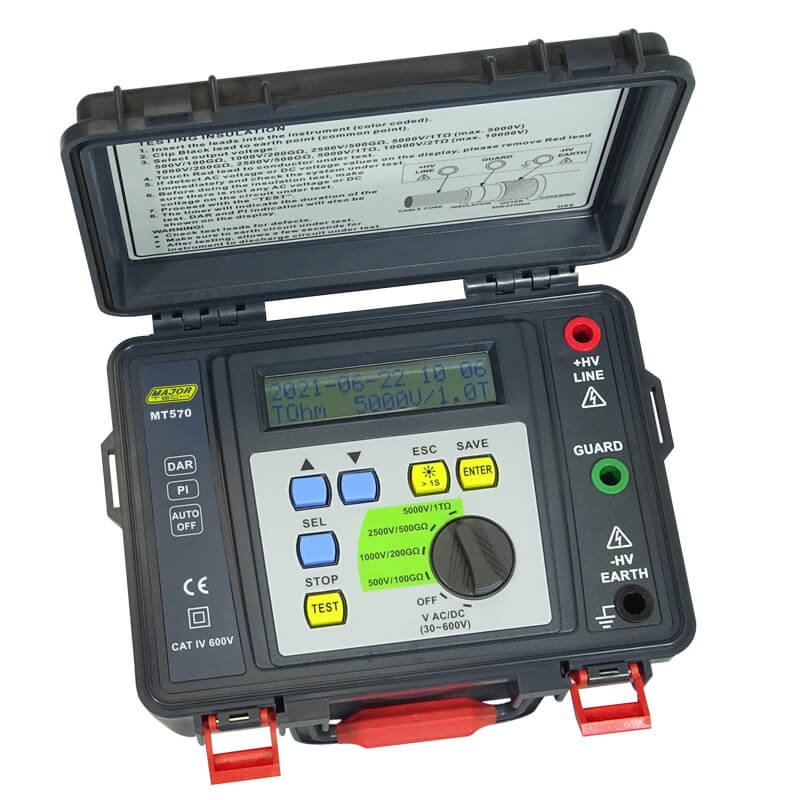

Major Tech 500/1kV/2.5kV/5kV Digital Insulation Tester MT570

Description

The MT570 is a CAT IV 600V Digital High Voltage Tester with measurements from 500V DC to 5000V DC, and will automatically discharge the circuit after the test has been completed. Using the rotary selector switch, 4 preset ranges of 500V, 1000V, 2500V and 5000V can be selected, with an insulation resistance up to 1T?. The microprocessor controlled MT570 has the capabilities of being a diagnostic tool and is intended for testing insulation on Rotating Machines, Transformers, Cables, High Voltage Generators, Electric Circuits and Surge Arrestors as the short circuit current output is up to 5mA. 200 test measurement results can be saved in the memory of the meter and recalled onto the LCD display. The large intelligent LCD display consists of 2 lines x 16 characters, indicating the reading of insulation, measuring time, output voltage and output current. The MT570 can measure AC and DC voltage up to 600V and is housed in a robust case ideal for extended field use, powered by 8 pieces ?C? 1.5V batteries.

CAT IV 600V and CAT III 1000V

Insulation Test Voltages from 500V to 5000V

Microprocessor controlled with 2 lines x 16 characters intelligent display

Short circuit current up to 5mA

DAR ? Dielectric Absorption Ratio indication

PI ? Polarization Index indication

Measurement of AC and DC voltage up to 600V

Auto ranging on all insulation ranges

Adjustable test time from 1 minute to 30 minutes

Auto hold to freeze measurement readings

200 measurement results can be saved in memory and recalled onto the display

Visual and audible warning of external voltage greater than 30V AC and DC

Auto Power Off

Date and Time calendar

SPECIFICATIONS

*Function: DC voltage Range: 30 ? 600V Resolution: 1V Accuracy: ?(2% +3)

*Function: AC voltage Range: 30V ? 600V Resolution: 1V Accuracy: ?(1.5% +15)

*Function: Insulation resistance 500V Range: 500V Resolution: 100G? Accuracy: ?(5% +5)

*Function: Insulation resistance 1000V Range: 1000V Resolution: 200G? Accuracy: ?(5% +5)

*Function: Insulation resistance 2500V Range: 2500V Resolution: 500G? Accuracy: ?(5% +5)

*Function: Insulation resistance 5000V Range: 5000V Resolution: 1T? Accuracy: ?(5% +5)

*Function: Short circuit current Range: 5mA

*Function: Polarization index Range: Yes

*Function: Dielectric absorption ratio Range: Yes

*Function: Auto discharge Range: Yes

*Function: Data logging Range: Yes

*Function: Data Hold Range: Yes

*Function: Back Light Range: Yes

*Function: Enclosure Range: Robust moulded case

*Function: Low battery indication Range: Yes

*Function: Batteries Range: 8 x LR14, 1 x CR2032

*Function: Weight Range: 2070g

*Function: Dimensions Range: 250 x 190 x 127mm

Accessories:

Test Leads

Croc Clips

Carrying Case

Shoulder Strap

8 x C Batteries

Instruction Manual
