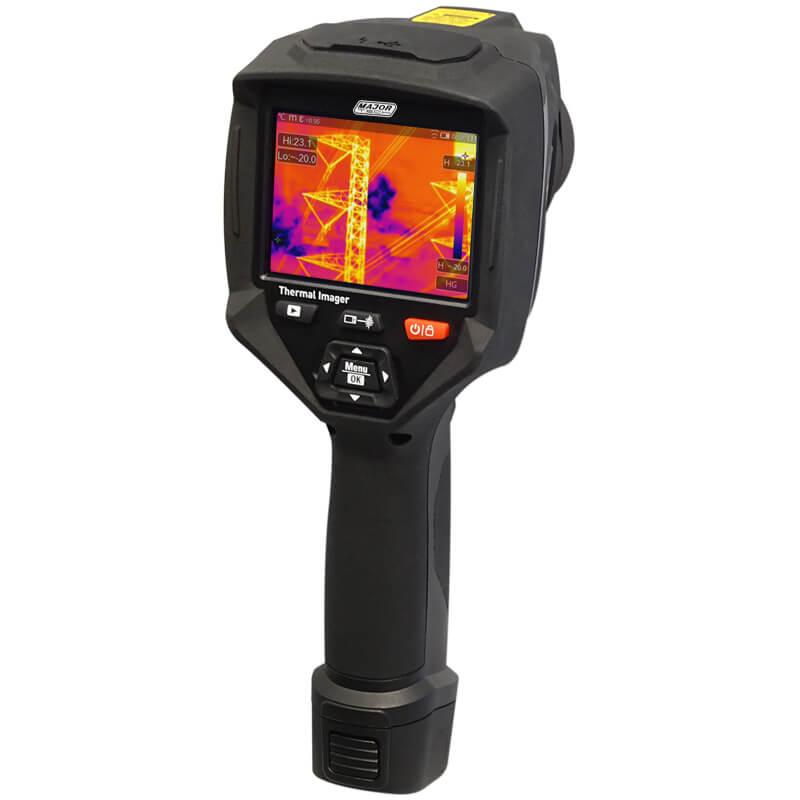

Major Tech 384 X 288 Pix, -20?C to + 400?C Thermal Camera MTi60

Description

The MTi60 High-Performance Thermal Imager with a resolution of 384?288 pix at 50Hz, built-in Laser Distance meter and Wi-Fi ensures that thermal inspections are conducted with greater ease, more effective, and with extreme accuracy. With manual focus, large bright touch screen and easy to access toolbar the user can fine-tune and analyze images quickly and effectively. The touch screen allows the user to manually add up to 3 spot or area measurements, Hot/Cold spot marker that automatically finds the hottest and coldest spots and adjustable zone alarm. It features temperature ranges from -20?C to 650?C, 32X digital zoom, HDMI video output and on-screen adjustable level and span. The hard protective carry case contains a memory card, lithium polymer battery & power supply, and USB cable.

SPECIFICATIONS

Image Presentation

Display : Touch screen, 3.5? LCD, 640 x 480 pixels

Image Modes : IR Image, Visual image, picture in picture, Auto Fusion, Laser Distance

Picture in Picture : IR area on visual image or visual image on IR

Colour Pallets : Iron, Rainbow, Grey, Grey inverted, Brown, Blue red, Hot cold, Feather, Above/Below Alarm, Zone Alarm

Imaging and Optical Data

Field of View : 17? x 12.7? / 0.5m

Spatial Resolution (IFOV) : 0.77mrad

Thermal Sensitivity/NETD : <0.08? at 30?C (86?F)/80mK Image Range : 50Hz Focus Mode : Manual Zoom : 1 -32 x continuous, digital zoom Focal Length : 22mm Focal Plane Array (FPA) / Spectral Range : Uncooled microbolometer / 8-14?m IR Resolution : 384 x 288 Image Presentation

Display : Touch screen, 3.5? LCD, 640 x 480 pixels

Image Modes : IR Image, Visual image, picture in picture, Auto Fusion, Laser Distance

Picture in Picture : IR area on visual image or visual image on IR

Colour Pallets : Iron, Rainbow, Grey, Grey inverted, Brown, Blue red, Hot cold, Feather, Above/Below Alarm, Zone Alarm

Measurement

Temperature Range : Low -20?C to 150?C, High 0?C to 650?C

Temperature Accuracy : ?2?C or ? 2% of reading (Env temp 10?C ? 35?C)

Measurement Analysis

Spot : Centre Spot, 3 Manual Spots

Line : 2 lines (horizontal or vertical)

Area : 3 Area with max/min/average

Automatic Hot/Cold Detection : Auto hot or cold markers

Emissivity Correction : Variable 0.01 to 1.0, Standard Emissivity Table

Measurement Corrections : Emissivity, Reflective temp, Ambient temp, Distance compensation, Relative humidity, Infrared compensation

Laser Distance : 0.05 to 30m

Storage

Videos : 8Gbytes Micro SD card, 3.4Gb internal EMMC

Videos Format : Std MPEG-4, 640 x 480@30fps, on memory card> 60minutes

Videos Storage Mode : IR/Visual images: simultaneous storage of IR and visual images

Images Format : Std JPEG or .HIR files incl. measurement data, on memory card >6000 pictures

Image Storage Mode : IR/Visual images: simultaneous storage of IR and visual images

Digital Camera

Built-in : 5 Megapixels

Built-in Digital Lens Data : FOV 59?

Data Communications Interfaces

Interfaces : USB-mini, HDMI

USB : Data transfer between camera and PC, Live video

Video Out : HDMI

Wi-Fi : 802.11, image transfer and live video

Enclosure : Over Moulded casing IP65

Input System : DC 5V

Power Source : Lithium-ion, 4 hours operating time

Charging System : In camera (AC adapter)

Weight : 860g

Dimensions : 260 x 101 x 120mm

—

384 x 288 Pixel Thermal Detector

110,592 points real temperature

50Hz Image Frequency

Laser Distance 30m

3 Area and 2 Line Analysis

3 Manual Spots

Hot, Cold and Centre Spot Temperature

3.5? TFT LCD display, Touch Screen

Instant share & save via WiFi to PC, iOS and Android smart devices

Colour Pallets include Iron, Rainbow, Grey, Grey Inverted, Brown, Blue/Red, Feather, Zone Alarm

Rugged and industrial design casing

Easy to use functions via touch screen
