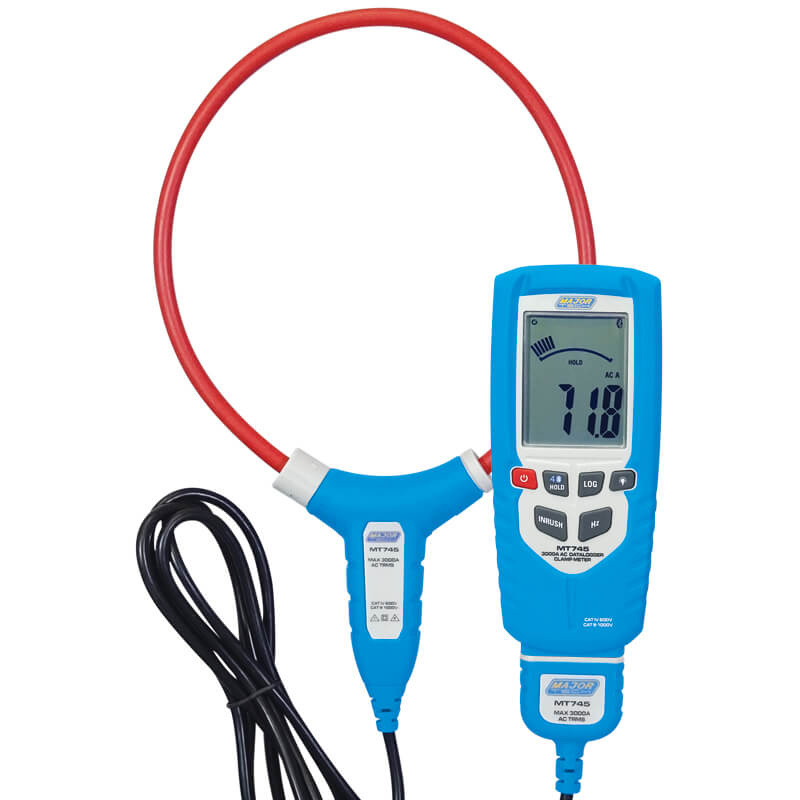

Major Tech 3000A True RMS AC Clamp Meter, with Data Logger MT745

Description

The MT745 3000A AC Flexible Current Clamp Meter with Data Logging is ergonomically designed for ease of use in confined spaces. The 8mm flexible coil can easily fit around flat busbar or parallel supply cables and can also be maneuvered into cable trays where conventional hard jaw clamps cannot reach. The Bluetooth feature can be used to perform live recordings or to transfer recorded data to a smart phone app. Using the Log Key will start a recording that will be stored on the instrument. The smart phone app allows the user to retrieve Data as well as set up recording sample rate. The unit features inrush current measurement as well as frequency measurement and has a large backlit LCD display making it easier to read measurements.

CAT IV 600V and CAT III 1000V

AC current True RMS measurements

3000 count Backlight LCD

Analogue Bar graph

Bluetooth interface

3000A AC flexible clamp

Data Hold

Inrush Current

Frequency Measurement

SPECIFICATIONS

*Function: AC Current Range: 0.5 to 3000A Resolution: 0.01A Accuracy: ?(3.0% + 5 Digits)

*Function: Frequency Range: 50Hz ? 400Hz Resolution: 0.1A Accuracy: ?(3.0% + 5 Digits)

*Function: True RMS Measurements Range: ACA

*Function: AC Bandwidth Range: 50 to 400Hz

*Function: Digital Display Range: 3000

*Function: Bargraph Range: Yes

*Function: Data Logging Range: Yes

*Function: Overrange Indication Range: Yes

*Function: Jaw Size Range: 150mm Flexi Clamp

*Function: Min Max Range: Yes

*Function: Data Hold Range: Yes

*Function: Back Light Range: Yes

*Function: Enclosure Range: Moulded case

*Function: Low Battery Indication Range: Yes

*Function: Batteries Range: 2 x AAA

*Function: Weight Range: 315g

*Function: Dimensions Range: 230 x 76 x 40mm

*Function: Safety Specs Range: IEC61010-1 CAT IV 600V

Accessories

Carrying Case

Software

2 x AAA Batteries

Instruction Manual
