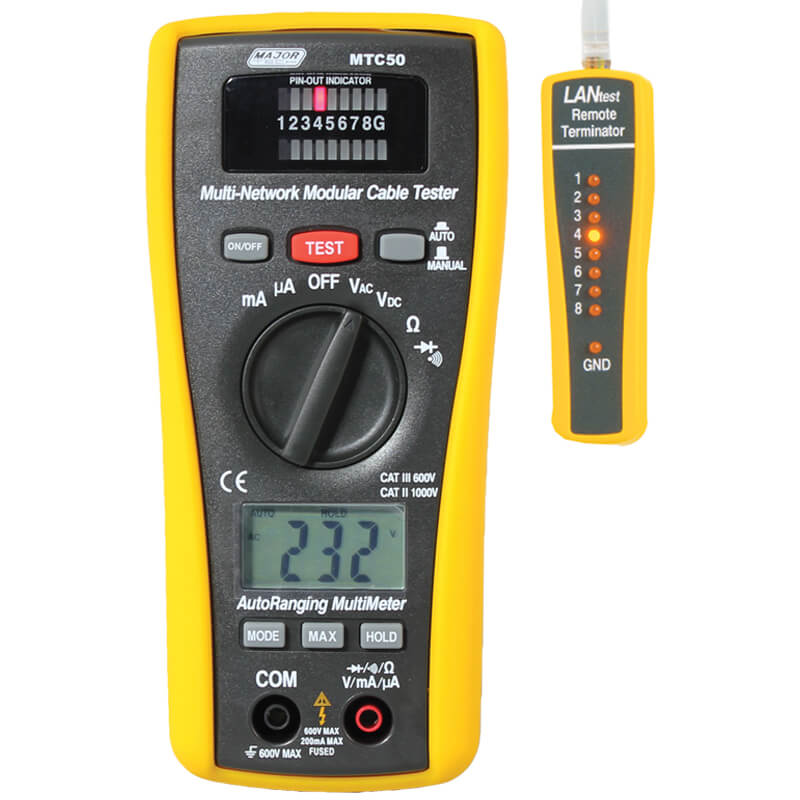

Major Tech 2-in-1 LAN Tester & Multimeter MTC50

Description

The MTC50 is a 2-in-1 LAN tester as well as an auto ranging multimeter. This meter is a newly designed and very practical tester that can easily read the correct pin configuration of 10/100 Base-T cable (Category 5), 10Base-2 cable (coax), RJ45/RJ11 modular cables, AT&T 258A, 356A, TIA-568A/568B and Token Ring cable by comparing one transmitting end to the corresponding receiving end. With the remote kit test cables can be installed over long distances either on wall plates or patch panels. It is easy to verify the cable continuity, open, short and cross-connect. The auto range digital multimeter allows the user to measure AC and DC voltage, AC and DC current, Resistance, Continuity and Diode test.

CAT III 300V and CAT II 600V

2-in-1 LAN Tester and Digital Multimeter

LED displays the actual pin configuration and tests the correct pin configuration of 100Base-T, 10Base-T, 10Base-2 Thin Ethernet cable, RJ45/RJ11 modular cables 356A, TIA-568A/568B and Token Ring cable etc

With remote kit it can remotely test cables up to 300m away either on wall plate or patch panel

Can test the grounding

Provides easy to read continuity and fault status display

Measures ACV and DCV up to 600V, ACA and DCA up to 200mA

Locked Status wiring function

LAN Testing

Tests CAT 5 Installations

SPECIFICATIONS

*Function: DC Voltage Range: 200mV ? 600V Resolution: 0.1mV Accuracy: ?(1.0% + 3 Digits)

*Function: AC Voltage Range: 200mV ? 600V Resolution: 1mV Accuracy: ?(1.0% + 5 Digits)

*Function: DC Current Range: 200.0? A ? 200.0mA Resolution: 0.1?A Accuracy: ?(1.5% + 3 Digits)

*Function: AC Current Range: 200.0? A ? 200.0mA Resolution: 0.1?A Accuracy: ?(1.8% + 8 Digits)

*Function: Resistance Range: 200.0? ? 20M? Resolution: 0.1? Accuracy: ?(1.2% + 3 Digits)

*Function: Overrange Indication Range: Yes Resolution: >7.5M? VDC & >7.5M? VAC Accuracy:

*Function: AC Bandwidth Range: 50Hz-60Hz

*Function: Continuity Range: Yes

*Function: Diode Test Range: Yes

*Function: Digital Display Range: 2000

*Function: Lan Tester Range: RJ45 and RJ11 + BNC

*Function: Min Max Range: Yes

*Function: Back Light Range: Yes

*Function: Enclosure Range: Rubber Holster

*Function: Batteries Range: 2 x AAA and 9V

*Function: Weight Range: 308g

*Function: Dimensions Range: 162 x 74 x 43mm

*Function: Safety Specs Range: IEC61010-1 CAT III 600V

Accessories

Carrying Case

9V Battery

Test Leads

Instruction Manual
