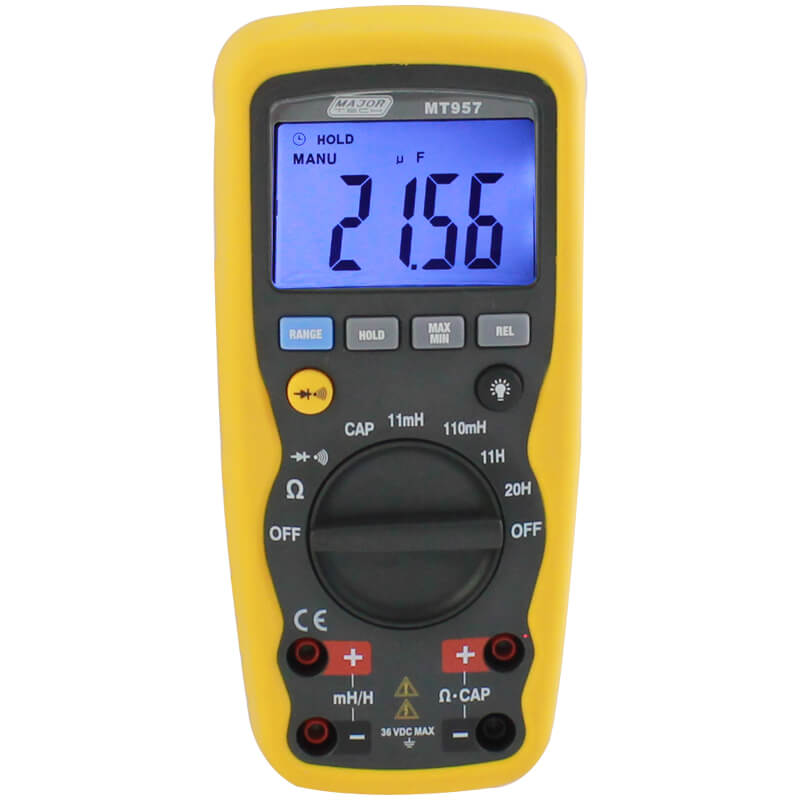

Major Tech 11 000 Count LCR Meter MT957

Description

The MT957 LCR meter is battery operated and provides direct and accurate measurements of inductors, capacitors and resistors with different frequencies and is selectable for auto ranging of manual ranging. Convenient front panel push buttons and controls include functions such as data hold, maximum and minimum record mode and relative mode. The 11,000 count LCD display is backlit for easy reading in dark locations.

Provides direct and accurate measurements of inductors, capacitors and resistors with different frequencies and is selectable for auto/manual ranging

11 000 Count LCD display

Min / Max

Relative Mode

Measures inductance to 20H

Resistance 40M?

Capacitance 110mF

Data hold

SPECIFICATIONS

*Function: Resistance Range: 100.0 ? 40M? Resolution: 0.01? Accuracy: ?(1.2% ? 0.5)

*Function: Capacitance Range: 11.000nF ? 110.00mF Resolution: 1pf Accuracy: ?(5.0% ? 0.7pF)

*Function: Inductance Range: 11.000mH ? 20.00H Resolution: 1?H Accuracy: ?(2.0% + 0.05mH)

*Function: Over Range Indication Range: Yes

*Function: Digital Display Range: 11000 count LCD

*Function: Back Light Range: Yes

*Function: Diode Test Range: Yes

*Function: ?O? Adj. Range: Yes

*Function: Min/Max Range: Yes

*Function: Relative Mode Range: Yes

*Function: Data Hold Range: Yes

*Function: Enclosure Range: Double moulded case

*Function: Low Battery Indication Range: Yes

*Function: Battery Range: 9V

*Function: Weight Range: 255g

*Function: Dimensions Range: 150 x 70 x 48mm

*Function: Safety specs Range: IEC61010-1 CAT III 600V

Accessories

Carrying case

Test Leads

Instruction manual
