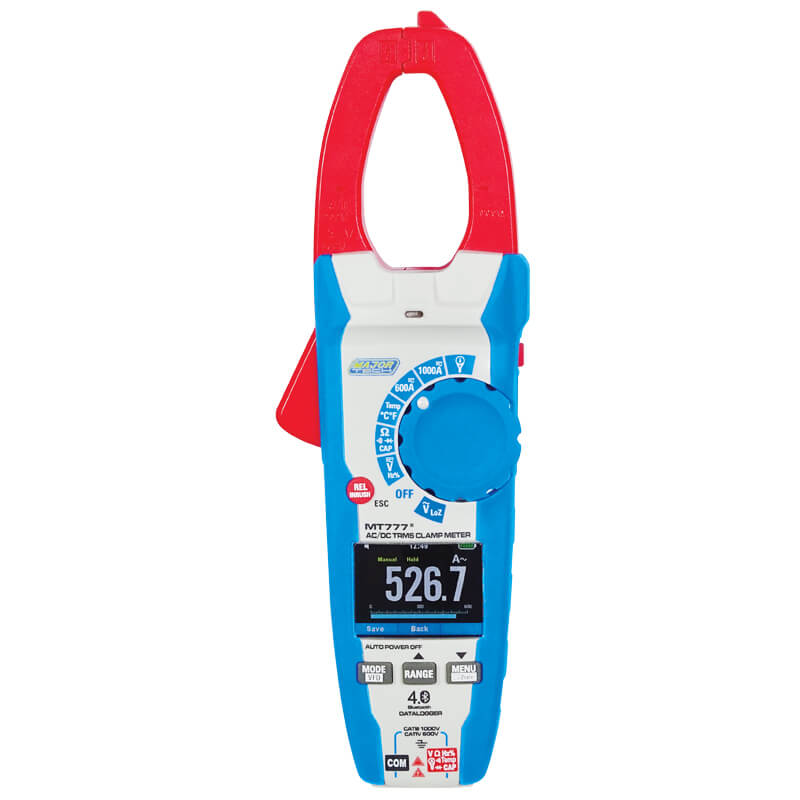

Major Tech 1000A AC/DC Trms Clamp Meter 4.0 BT MT777

Description

The MT777 is a CAT IV 600V, 6000 count True RMS 1000A AC/DC digital clamp meter with an analogue bargraph indication on a TFT colour display, providing fast sampling time with high accuracy. The meter has a built in Data logger with 100 Graph Data review, using Bluetooth, the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings. The VFD function allows the user to measure stable voltage in high frequency applications, while the Low Z range function has a low pass filter to eliminate errors caused by ?Ghost? voltages. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Hold. Using the optional MT740 True RMS Flexible Clamp Adaptor, the measuring range can be extended to measure 3000A AC. Added features is Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.

CAT IV 600V and CAT III 1000V

6000 count TFT colour LCD display

?33mm Cable Clamp size

Measurement of AC, AC+DC TRMS and DC voltage up to 1000V

Temperature Measurement -40?C to 1000?C

Capacitance to 100mF

Trend Capture Function

Bluetooth 4.0

100 Graph Data Review

INRUSH Current Measurements

3000A range for optional MT740 Flex Clamp Adaptor

VFD ? Variable Frequency Drive voltage value

LoZ ? Low impedance mode prevents false readings due to ?Ghost? voltage

NCV ? Non-Contact Voltage Detector

Built-In Flashlight

Continuity buzzer and Diode Test

Peak Mode, Min/Max and Data Hold function

Auto Power Off

SPECIFICATIONS

*Function: DC Current Range: 600.00A ? 1000.0A Resolution: 0.1A Accuracy: ?(2.5% + 5 Digits)

*Function: AC Current Range: 600.00A ? 1000.0A Resolution: 0.1A Accuracy: ?(2.5% + 5 Digits)

*Function: DC Voltage Range: 600.0mV ? 1000V Resolution: 0.1mV Accuracy: ?(1.5% + 5 Digits)

*Function: AC Voltage Range: 6.000V ? 1000V Resolution: 1mV Accuracy: ?(1.5% + 5 Digits)

*Function: Resistance Range: 600.0? ? 60.00M? Resolution: 0.1? Accuracy: ?(1.5% +5 Digits)

*Function: Frequency Range: 9.999Hz ? 99.99kHz Resolution: 0.01Hz Accuracy: ?(1.2% +5 Digit)

*Function: Capacitance Range: 60.00nF ? 100.0mF Resolution: 0.01nF Accuracy: ?(3.0% + 8 Digits)

*Function: Temperature Range: -40 to 1000?C Resolution: 0.1?C Accuracy: ?(1.5% + 5?C Digits)

*Function: Duty Cycle Range: 10.0% to 90.0% Resolution: 0.001 Accuracy: ?(1.2% + 10 Digits)

*Function: True RMS Measurements Range: ACV, ACA

*Function: AC Bandwidth Range: 50 ? 400Hz

*Function: Digital Display Range: TFT Colour LCD Display

*Function: Bargraph Range: Yes

*Function: Records Events And Trends Range: Yes

*Function: Data Logging Range: Yes

*Function: Bluetooth Range: Bluetooth 4.0

*Function: Non-Contact Voltage (NCV) Range: Yes

*Function: Overrange Indication Range: Yes

*Function: Continuity Range: Yes

*Function: Diode Test Range: Yes

*Function: Jaw Size Range: 33mm

*Function: Input Impedance Range: >10M? DCV & >10M? VAC

*Function: Low Frequency Input Range: Yes

*Function: Min Max Range: Yes

*Function: Peak Hold Range: Yes

*Function: Data Hold Range: Yes

*Function: Back Light Range: Yes

*Function: Enclosure Range: Double injection moulding

*Function: Low Battery Indication Range: Yes

*Function: Batteries Range: 3 x AAA

*Function: Weight Range: 350g

*Function: Dimensions Range: 250 x 78 x 40mm

*Function: Safety Specs Range: IEC61010-1 CAT IV 600V

Accessories

Test Leads

Type-K Wire Probe

Type-K Adaptor

Carrying Case

3 x AAA Batteries

Instruction Manual
