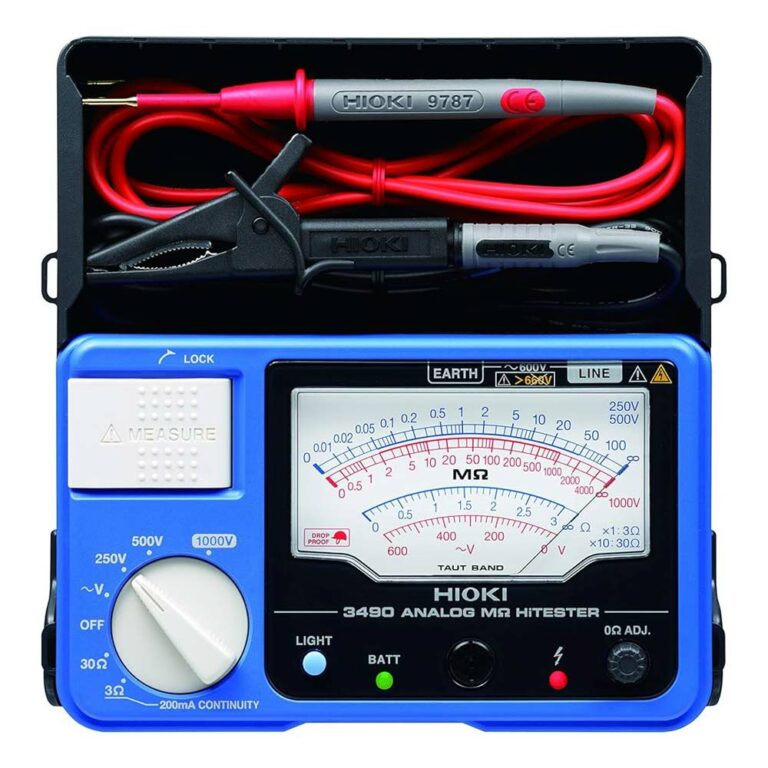

Hioki 3490 1kV Analog Insulation Tester MET-H-3490
$808.18 inc GST
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
20 in stock
Description

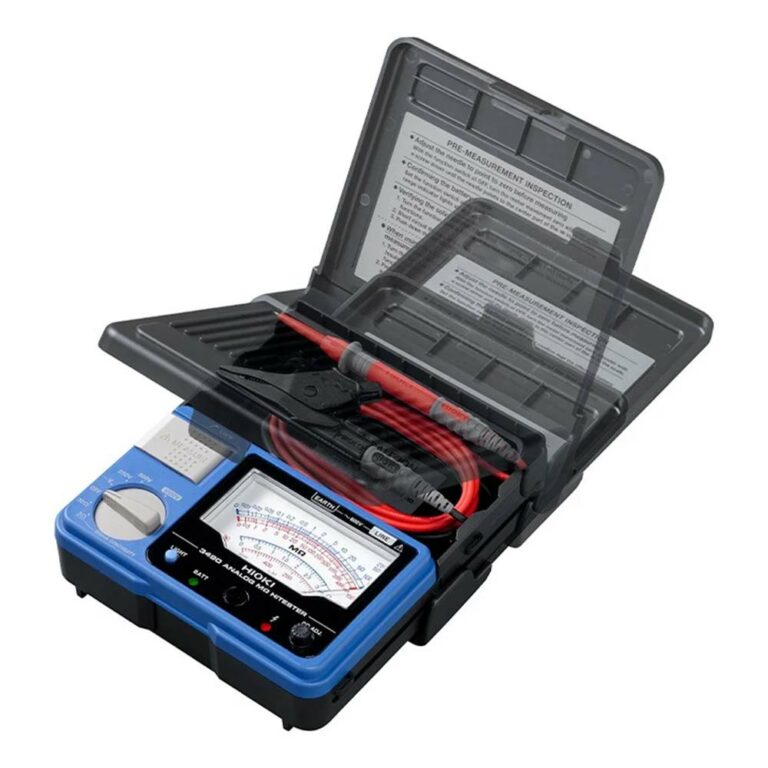

The Hioki 3490 1kV Insulation Tester features all-in-one designs including built-in rugged cases and test lead storage compartments.
The 3490 is a 3-range, 250/500/1000V analogue insulation resistance meter with efficient functions and features to help shorten work time associated with field insulation testing.
Key Features:
Size: 159mm x 177mm x 53mm
Operating Temperature: 0C – 40C
Measures Insulation Resistance (up to 4000 Mega ohms), AC Voltage (up to 600V) and low resistance (up to 30 Ohms)
3 Output Voltages for testing – 250VDC, 500VDC and 1000VDC
Backlit LED to see the analogue screen in low light environments
Durable 1.2m length test leads to take measurements
Zero ohm adjustment to ensure correct readings
Continuity Check at 200mA at 3 Ohm range
Standards:
CE
IP40 (Excluding terminals)
EN61010
EN612326
EN61557-1
EN61557-2
