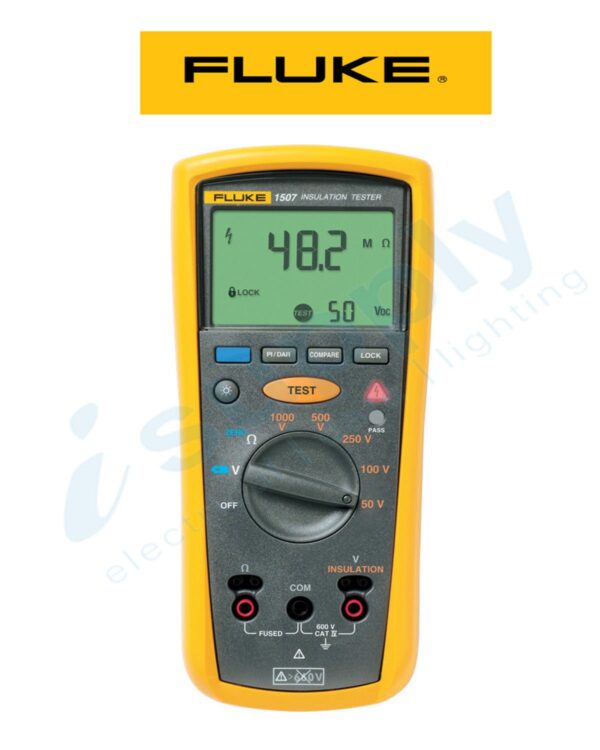

Fluke TESTER, INSULATION RESISTANCE 0.01 Megaohms TO 10 Gigaohms FLU1507

Description

Fluke 1507 and 1503 Insulation
Resistance Testers
The quality, durability, and convenience you need.
These lightweight, affordable insulation testers are perfect for troubleshooting, commissioning and preventive maintenance applications.
• Automatic calculation of polarization index and dialectric absorption ratio (1507 only)
• Multiple test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V (1507 only)
• Remote test probe for rapid testing
• Insulation test range 0.01 MΩ to 10 GΩ (1507), 0.1 MΩ to 2 GΩ (1503)
• Compare (Pass/Fail) function for repetitive tests (1507 only)
• Live circuit detection prevents insulation test if voltage > 30 V is detected
• Auto-discharge of capacitive voltage
• AC/DC voltage: 0.1 V to 600 V
• Lo ohms/Earth-bond continuity (200 mA) for checking connections and motor windings
• Resistance: 0.01 Ω to 20.00 kΩ
